PBM Motor and Fan (Suzhou) Co., Ltd. >> AC-Input 175mm Ec Centrifugal Fan

AC-Input 175mm Ec Centrifugal Fan

Name: AC-Input 175mm Ec Centrifugal Fan
Brand: china-manufacturer-directory.com
SKU: 752418505
Availability: InStock
Rating: 4.3 (74 reviews)

Supplier:	PBM Motor and Fan (Suzhou) Co., Ltd.
Price:	US $ 47/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	PB3N175B2EH
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Fan Feature:	0~10VDC/PWM Speed Control, Tach Output
Usage:	Telecom Station, Heat Exchanger, Free Cooling Unit
Cooling Method:	Indirect Cooling
Electric Current Type:	AC
Mounting:	Free Standing
Certification:	CE
Blade Material:	Propylene with Glass-Fiber Reinforced

Product Description

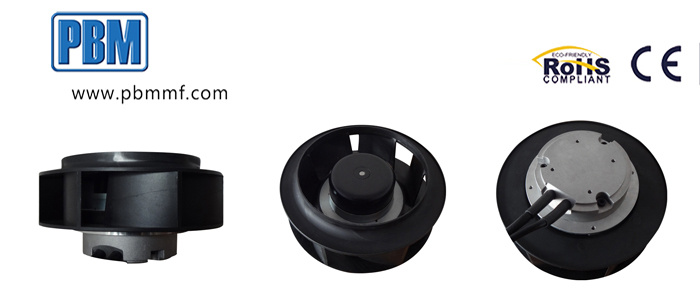

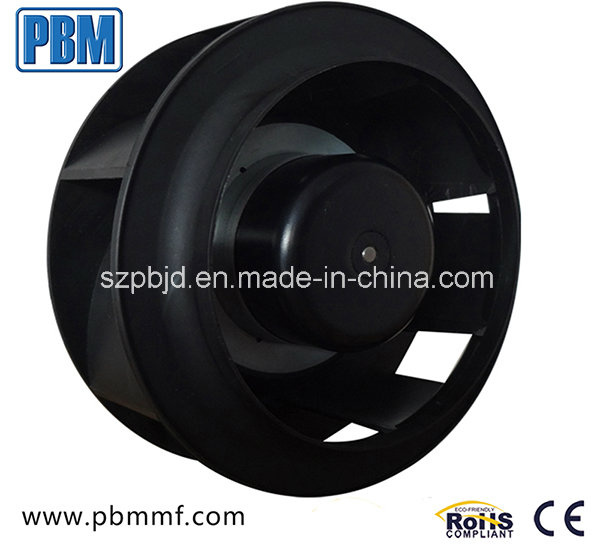

175mm EC Centrifugal Fan - AC Input

Impeller Material:
Propylene with glass-fiber reinforced,
Ingection-moulded round sheet-metal plate

Technical Features:
Control input 0~10VDC/PWM, tach output,
Locked-rotor protection, reverse polarity ,
Current limited, soft start.
Motor Type :
EC brushless external rotor motor
Insulation Class: B
Protection Type: IP44
Operating Temperature:
-25~+60
Weight:1.2kg

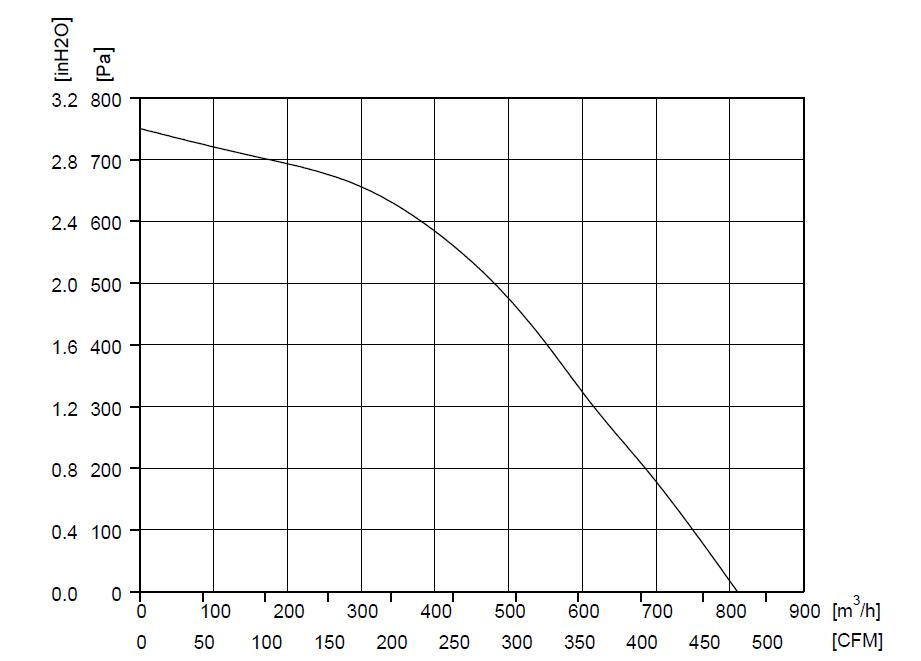

Model	Motor Type	Bearing System	Rated Voltage	Frequency	Rated Current	Rated Power	Rated Speed	Air Flow	Air pressure	Noise Level
Part NO.	Type	B / S	VAC	Hz	A	W	RPM	M³/H	Pa	dBA
PB3N175B2EH	BE72AC-T	BALL	230	50/60	0.85	105	4460	810	744	76

FAQ:

1.How about the delivery time?

Within 25 days after we receive the order.

2.What kind of payments do you support?

T/T.L/C ,other kinds please contact with us.
3.What's the MOQ?

Generally speaking ,the MOQ is 100 pieces .Different products have different MOQ, Please contact with us.

4.Transportation

All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.

5.Global Market

Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best DC Axial Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.

6.Contact Us

We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.

Specifications:

Operating Temperature	-25 degrees to 60 degrees
Storage Temperature	-40 degrees to 75 degrees
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
Drop Test	In minimum packaging condition fan withstand each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board.
Vibration Test	Sine Wave. Displacement amplitude: 0.75mm(Equivalent 10G). Frequency Range: 10Hz~55Hz / 30 sec. 55Hz~10Hz / 30 sec Linear Scanning 120 Cycle Endurance timer per axis: 2 Hours Orientation: X,Y,Z.
Shock Test	Apply peak acceleration 50g and keep duration of the pulses for 11ms(Half sine wave).
Dustproof Test	Temperature range: degrees to 35 degrees. 2.5mm diameter metal wire cannot go through the gap between rotor cup and base . Follow IEC 60592 IP4X.
Waterproof Test	Temperature range: 15 degrees to 35 degrees and duration of test: at least 10 minutes, to dripping water from 15°Vertically. Follow IEC 60529 IPX4
RoHS	All the material meets RoHS standard.

PBM Motor and Fan is a China mainland manufacturing and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, Investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. We are able to stay at the forefront of EC motor and fan market and offer high quality & economical products, to many of the worldwide leading ventilation & refrigeration Original Equipment Manufacturers.

Our engineers have rich experience in supplying cost effective motor and fan solutions to exceed customer' S expectations. We understand that each customer' S application is different, and by understanding our customer' S needs in site allows us to offer the most cost effective solution.

From 2010, with China motor manufacturing industry was losing its advantage in material and labor cost, PBM Motor and Fan started to offer consulting service to abroad EC motor manufacturers who expected to organize motor assembly in their own countries for EC technology input and cost down.

Protecting our World with Energy Efficient Motor Solutions' Is our goal in an attempt to make tomorrow a greener & healthier world.

Please feel free to contact our Product Support or Sales Department to discuss your application requirements.
