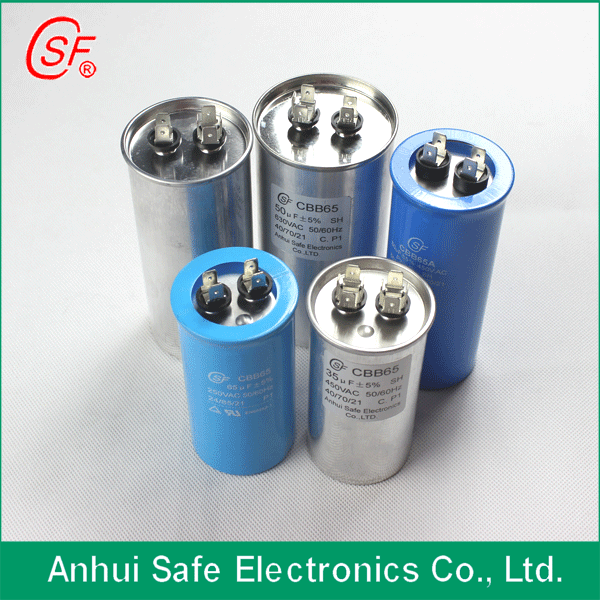

AC Motor Running Capacitor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
CBB65 AC Motor Capacitor(column,aluminum case,anti-explosion)Features:1.Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power2. Self-healing property3.High stability and reliablity4.Safer with Anti-explosion design.5.Round capacitor,can be provided oval capacitor6.Single capacitor,Can be provided doubleSpecifications:| Reference standards | GB/T 3667.1( IEC60252-1) |
| Climatic category | 40/70 /21,40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | P2/P1 |
| Voltage range | 200~500VAC |
| Capacitance range | 2~100μF |
| Capacitance tolerance | ± 5% , ± 10%,± 15% |
| Dissipation factor | 20 x10-4 (100Hz,20°C) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds |
| Insulation Resistance | ≥3000s (100Hz,20°C,1min) |
Dimensions(mm)
NO. |
production specifications |
terminal |
size (mm) |
| 1 | CBB65-450VAC 5μF ~9μF | 2*4 ,2*2 or 4*4 pin | φ40*60 |
| 2 | CBB65-450VAC-10μF | 2*4 ,2*2 or 4*4 pin | φ40*60 |
| 3 | CBB65-450VAC-12.5μF | 2*4 ,2*2 or 4*4 pin | φ40*70 |
| 4 | CBB65-450VAC-15μF | 2*4 ,2*2 or 4*4 pin | φ45*70 |
| 5 | CBB65-450VAC-20μF | 2*4 ,2*2 or 4*4 pin | φ50*75 |
| 6 | CBB65-450VAC-25μF | 2*4 ,2*2 or 4*4 pin | φ50*85 |
| 7 | CBB65-450VAC-30μF | 2*4 ,2*2 or 4*4 pin | φ50*100 |
| 8 | CBB65-450VAC-35μF | 2*4 ,2*2 or 4*4 pin | φ50*100 |
| 9 | CBB65-450VAC-40μF | 2*4 ,2*2 or 4*4 pin | φ50*100 |
| 10 | CBB65-450VAC-45μF | 2*4 ,2*2 or 4*4 pin | φ50*100 |
| 11 | CBB65-450VAC-50μF | 2*4 ,2*2 or 4*4 pin | φ50*125 |
| 12 | CBB65-450VAC-55μF | 2*4 ,2*2 or 4*4 pin | φ50*125 |
| 13 | CBB65-450VAC-60μF | 2*4 ,2*2 or 4*4 pin | φ50*125 |
| 14 | CBB65-450VAC-65μF | 2*4 ,2*2 or 4*4 pin | φ55*125 |
| 15 | CBB65-450VAC-70μF | 2*4 ,2*2 or 4*4 pin | φ55*125 |
| 16 | CBB65-450VAC-80μF | 2*4 ,2*2 or 4*4 pin | φ60*125 |
| 17 | CBB65-450VAC-90μF | 2*4 ,2*2 or 4*4 pin | φ60*125 |
| 18 | | | |
FAQ Q1: Are you a manufacturer or a trading company?A1: We are a manufacturer specialized in metallized film for capacitor use and metallized film capacitors since 2007. We enjoy great reputation among our customers not only for competitive price, qualified products but also for excellent service. Q2: How is your product quality?A2: We strictly executive ISO9001 quality management sustem certification, and our products won UL CQC, TUV, VDE performance certification and SGS report. Q3: How can I get some samples?A3: We are honored to offer you samples if you need! The little sample cost can be free, the large quantity samples,can be negotiable. Why us? 1.With 24 year's experience in manufacture, the quality of products is reliable.2. Advanced production facilities and inspection equipment.3.Fast delivery ad large production capacity for big orders.
| Prod Model: |
CBB65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacitor Type: |
AC/Motor Capacitor |
| Rated Voltage: |
220V~630V |
| Operating Temperature: |
40/85/21 |
| Rated Frequency: |
50/60Hz |
| Size: |
Availabel on Request |
| Capacitance Deviation: |
5% |
| Class Of Safety Protection: |
P1, P2 |
| Specification: |
Available on Request |
| Lead Out: |
Pin or Wire |
| Type: |
Polypropylene Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Usage: |
Air Conditioner |
| Structure: |
Film Capacitor |
| Capacitance: |
3-120UF |
| Electrolyte: |
Oil |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
