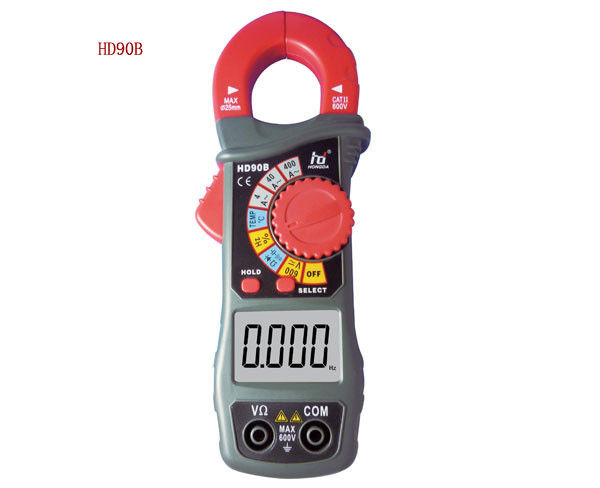

AC Pocket RMS 400A Digital Clamp Meter , battery multimeter with 4000 Counts
Quik details :
Place of Origin : Shenzhen ,China
Model : HD90B
Mini Clamp On Meter
True RMS
Brand Name : HD , OEM
Measuring Current Range : 4A-400A
Measuring Voltage Range :400mV-600V
Measuring Resistance Range : 40MΩ
MOQ : 300PCS
Jaw Size : 25MM
Payment : T / T , Paypal , West Union
Description :
100% Brand New
Application :
Ground fault current measurements
Electrical safety testing
Medical equipment safety testing
Process monitoring
General ac load monitoring
Weight: : 283g
Dimension : 170 x 65 x 27 mm
Made by famous T&M OEM manufacture
Fashionable Design, Top Quality and Portable
High Accurate & Superior Reliable Digital Multi-meter on the market, designed for use by electricians, technicians, serviceman and hobbyists, etc.
Detect live wire function
3½ digits LCD with a Max. reading of 4000
Manual Ranging
Auto Ranging
Automatic Zero Function
Automatic Power Off
Automatic Low Battery Indication
Data Hold Function for easy reading
Low Power Consumption, only 2x 1.5V AAA battery need!
The item has been tested in good working condition before auction
Specification:
Basic function |
Measurement range |
Basic accuracy |
DC voltage |
400mV/4V/40V/400V/600V |
±(1.5%+2) |
AC voltage |
4V/40V/400V/600V |
±(1.8%+3) |
AC current |
4A/40A/400A |
±(2.5%+10) |
Resistance |
400Ω/4KΩ/400KΩ/40MΩ |
±(1.5%+3) |
Capacitance |
51.2nF/512nF/5.12uF/51.2uF/100uF | ±(3.0%+5) |
Frequency |
2KHz-20MKHz |
±(0.1%+6) |
Duty cycle |
0.1%-99.9% | ±(1.0%+3) |
Temperature |
0-1000ºC | ±(3.0%+15) |
Auto power off |
V |
Continuity buzzer |
V |
Maximum display |
4000 |
Auto Zero Function |
V |
Data Hold |
V |
Auto range |
V |
General Characteristic :
Color Black+red
Weight 283g(including batteries)
Dimension 170*60*27mm
Accessories Test lead ,manual ,battery,K-type themocouple
Standard inner package Color box
Standard package quality 50 sets
Outer packing size 41.5*39*36.5cm
Standard packing gross weight 18.5kg
