AC Power Distribution System Lightning Protection Box

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Housing Material:	Iron
Color:	Black
Protection Mode:	L/N-PE
Housing Protection Grade:	IP20
Lightning Protection Class:	Class C
For:	Lightning Protection of Power Distribution Cabinet
Applicable Power Supply:	Tt, Tn, It
Rated Operating Voltage:	AC220V, 380V
Rated Operating Frequency:	50Hz(60Hz)
Voltage Protection Level:	1.5kv~2.0kv

Product Description

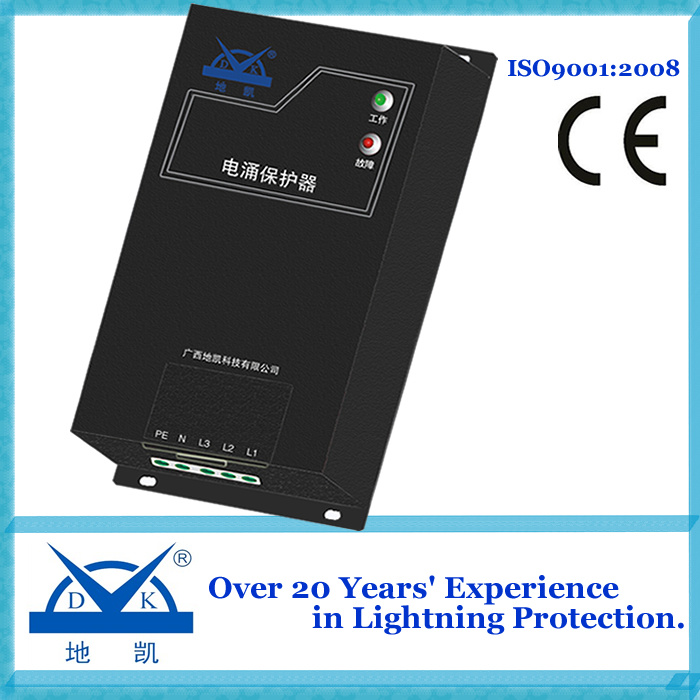

AC Power Distribution System Lightning Protection Box
1. AC power supply lightning protection
2. 22 years' experience
3. ISO9001: 2008
4. Malfunction Indicator
Material:

Box-Type SPD, surge protective device 220V 380V AC Imax 25kA~120kA Can be customized according to the customer's requirements of any specification for your original product.

It is designed according to IEC standard.

This product is suitable for lightning protection of 220/380V electrical distribution system.

This lightning protection SPD Case is combined with Working Indicator, Malfunction Indicator. Adopting Over Currents Protection, it can avoid fire danger. This product take advantage of low residual Voltage, quick responds, large discharge capacity, long life, easy maintain etc.
