Product Specifications
Prod Model: |
CBB60-5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shell: |
Plastic |
Type: |
Polypropylene Capacitor |
Application: |
Automobile |
Package Type: |
Through Hole |
Capacitance: |
1-150UF |
Product Description

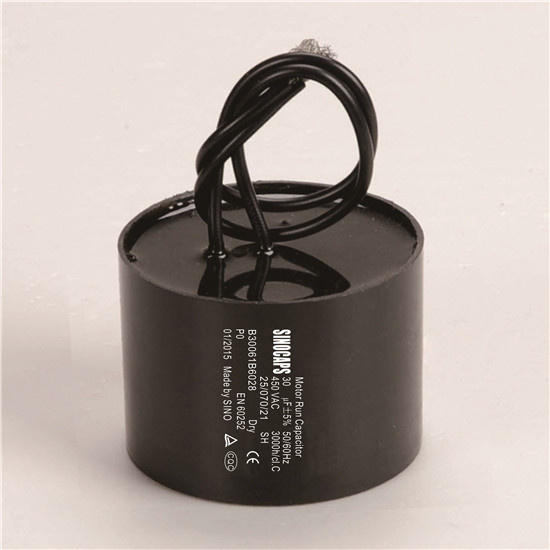

CBB60 AC run capacitor:
Detailed product description:
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area
Main feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.
Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
MSDS of AC run capacitor: |
Capacitance Range | 1μF~150μF |
Rated Voltage | 250VAC~500VAC(50/60Hz) |
Capacitance Tolerance | ±5% or Fulfilled upon request |
Loss Tangent | Tgδ≤0.002(50Hz-100Hz) |
Standard Temperature | -25ºC~+70ºC,-40ºC~+85ºC |
Climate Class | 25/70/21, 40/85/21 |
Test Voltage | Between terminals | AC≥2.00Un 2S NO BREAKDOWN |
Between terminals and case | AC≥2000V 2S NO BREAKDOWN |
Insulation Resistance | Between terminals | Rj·C≥3000MΩ.μF |
Between terminals and case | Rj≥1000 MΩ.μF |
Security Level | P0, P1, P2 |
Executing Standard | GB/T3667.1-2005, IEC60252-1:2001, IEC252 |
