Supplier: | Chinagros International Corporation Limited |
---|---|
Price: | US $ 0.18/Piece |
Min Order: | 10000/Piece |
Quantity:: | |
Trade Terms: | FOB,CIF,EXW |
![]() |
Prod Model: | CBB61-2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shell: | Plastic |
Type: | Polypropylene Capacitor |
Application: | Automobile |
Capacitance: | 1-50uf |
Package Type: | Through Hole |

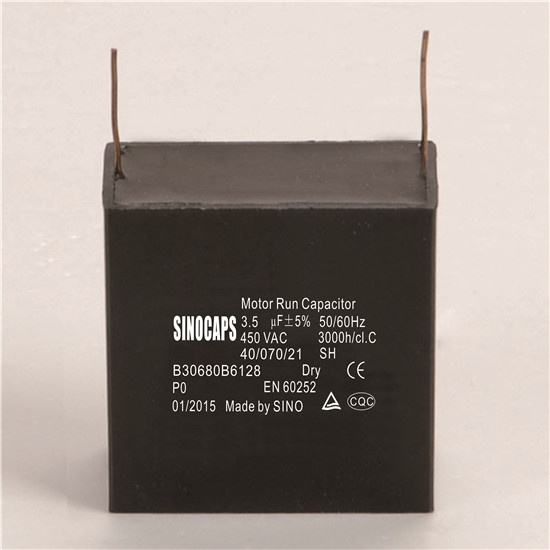

SINOCAPS #CBB61 Motor run capacitor: | ||
Capacitance Range | 1μF~30μF | |
Rated Voltage | 250VAC~500VAC(50/60Hz) | |
Capacitance Tolerance | ±5% or Fulfilled upon request | |
Loss Tangent | Tgδ≤0.002(50Hz-100Hz) | |
Standard Temperature | -25ºC~+70ºC,-40ºC~+85ºC | |
Climate Class | 25/70/21, 40/85/21 | |
Test Voltage | Between terminals | AC≥2.00Un 2S NO BREAKDOWN |
Between terminals and case | AC≥2000V 2S NO BREAKDOWN | |
Insulation Resistance | Between terminals | Rj·C≥3000MΩ.μF |
Between terminals and case | Rj≥1000 MΩ.μF | |
Security Level | P0, P1, P2 | |
Executing Standard | GB/T3667.1-2005, IEC60252-1:2001, IEC252 |
