Estun Automation Technology Co., Ltd. >> AC Servo System Equipped with 17 Bits Series Encoder/ Resolver

AC Servo System Equipped with 17 Bits Series Encoder/ Resolver

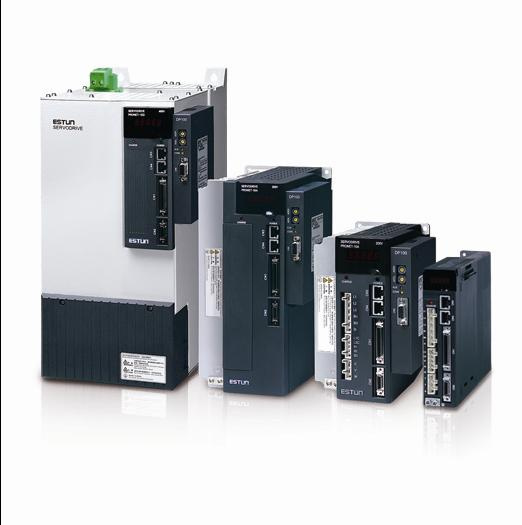

Name: AC Servo System Equipped with 17 Bits Series Encoder/ Resolver
Brand: China-Manufacturer-Directory.com
SKU: 721245325
Availability: InStock
Rating: 4.5 (91 reviews)

Supplier:	Estun Automation Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

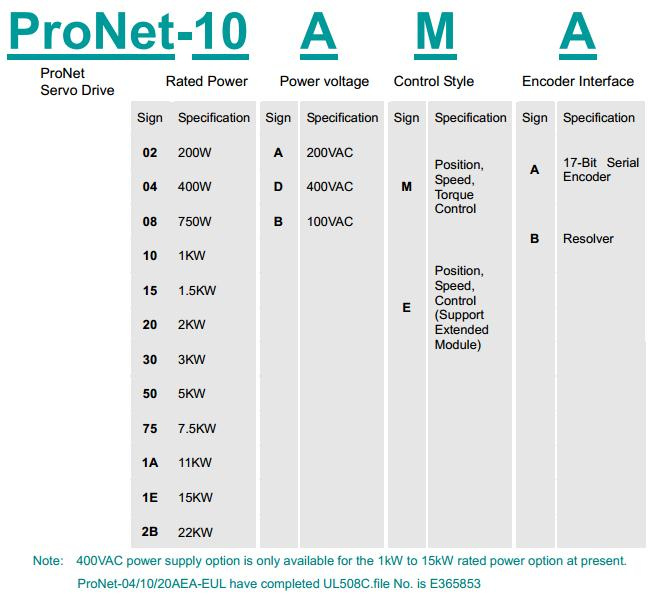

Prod Model:	ProNet-AMA series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Task:	Adjust
Structure:	Closed-Loop
Mathematical Model:	Non-Linear
Function:	Automatic Control
Certification:	UL
Condition:	New
Customized:	Non-Customized
Signal:	Pulse-Direction, Analog, Canopen, Ethercat

Product Description

Features
- Excellent Performance
High  responsiveness, current forward -feedback control,acceleration forward -feedback control, speed viewer, and inertia view.
it is available with online real-time workload, inertia check, and adjustment of gain to achieve better control.
2500ppr encoder and 17 bits encoder are optioanl.

- Simple & Convenient Setting
   Auto gain setting, it is automatically determine the mechanical
characteristics of your servo system. The servo system is equipped with an automatic adjustment feature which helps to lower debugging time and provide simpler operation.

- Mutiple field bus options
  CANopen and EtherCAT are optional.

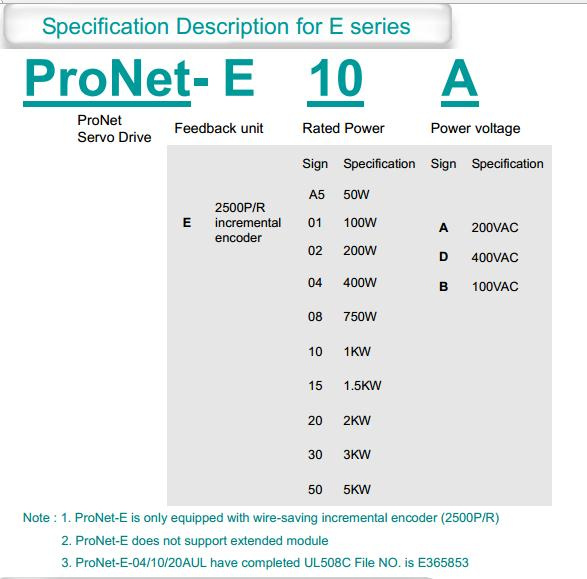

Specifications

Items			Specifications
Input Power Supply	Main Circuit	100V	Single-Phase 100~120VAC (50/60Hz) (0.2kW-0.75kW)
		200V	Single-Phase 200~230VAC (50/60Hz) (0.05kW-0.4kW)
			Three -Phase 200~230VAC (50/60Hz) (0.75kW-5.0kW)
		400V	Three-phase 380~440VAC +10%~-15%(50/60Hz)
	Control Circuit	100V	Single-Phase 100~120VAC (50/60Hz) (0.2kW-0.75kW)
		200V	Single-Phase 200~230VAC (50/60Hz) (0.05kW-0.4kW)
		400V	24VDC (1.0kW-7.0kW)
			Single-phase 380~440VAC (50/60Hz) (7.5kW-22kW)
Control Method			SVPWM Control
Feedback			Serial Encoder:131072P/R /1048576 P/R
			Resolver:65536P/R(Max.)
			Incremental Wire-saving type:2500 P/R
Operating Conditions	Ambient/Storage Temperature		Ambient temperature:0~+55ºC Storage temperature:-25~+85ºC
	Ambient/Storage Humidity		5%~95% RH (with no condensation)
	Elevation		1000m or less
	Vibration/ShockResistance		Vibration Resistance:4.9m/s²,Impact Resistance:19.6m/s²
	Electric Power System		TN system *3
Configuration			Base-mounted
Performance	Speed Control Range		1:5000
	Speed Regulation	Load Regulation	0~100% load:±0.01% or less(at rated speed)
		Voltage Regulation	Rated voltage ±10%:0%(at rated speed)
		Temperature Regulation	25±25ºC:±0.1% or less(at rated speed)
Torque Control	Analog Reference Input	Reference Voltage	±10VDC at rated torque(Variable setting range:±0~10VDC) Max. input voltage:±12V
		Input Impedance	About 10MΩ or above
		Circuit Time Constant	10μs
Speed Control	Analog Input Reference	Reference Voltage	±10VDC at rated speed(Variable setting range:±0~10VDC) Max. input voltage:±12V
		Input Impedance	About 10MΩ or above
		Circuit Time Constant	10μs
	Speed Selection	Rotation Direction Selection	With /P-CON signal
		Speed Selection	Speed 1 to 7
	Function	Soft Start Setting	0~10s(Can be set individually for acceleration and deceleration.)
Position Control	Pulse Reference	Type	Sign + pulse train;CCW + CW pulse train; 90°phase difference 2-phase (phase A + phase B)
		Form	Non-insulated linde driver (about + 5V), open collector
		Frequency	×1 multiplier:4Mpps ×2 multiplier:2Mpps ×4 multiplier:1Mpps Open collector:200Kpps Frequency will begin to decline when the duty ratio error occurs..
	Position Reference Setting	Position Setting	16 postion nodes can be set.
I/O Signals	Encoder Dividing Pulses Output		Phase-A, phase-B, phase-C, line driver output Number of dividing pulses:any
	Sequence Input	Number of channels	8 channels
		Function	Signal allocations and positive/negative logic modifications: Servo ON(/S-ON),P control(/P-CON),alarm reset(/ALM-RST),position error clear(/CLR), forward run prohibited(P-OT),reverse run prohibited(N-OT),forward current limit(/P-CL), reverse current limit(/N-CL) and so on.
	Sequence Output	Number of channels	4 channels
		Function	Signal allocations and positive/negative logic modifications: Positioning completion(/COIN), speed coincidence(/V-CMP),servomotor rotation detection(/TGON), servo ready(/S-RDY),torque limit output(/CLT), brake interlock output (/BK), encoder C pulse(/PGC) and Over travel (/OT).
	Regenerative Functions		0.75kW~7.5kW:internal regenerative resistor;11kW~22kW:external regenerative resistor
	Protection Functions		Overcurrent, overvoltage,low voltage, overload,regeneration error,overspeed,etc.
	Utility Function		Alarm trace back,JOG operation,load inertia detection, etc.
	Display Function		CHARGE(Red),POWER(Green),five 7-segment LEDS (Built-in panel operator)
	Communication Functiion		RS-485 communication port,MODBUS protocol ;CAN communication port,CANopen protocol; EtherCAT communication module,CiA402 protocol;POWERLINK communication module,CiA402 protocol

Estun Group
Estun Group is a leader in Chinese industrial automation realm that provides products, solution and related service that increase manufacturing precision and efficiency. Up to now, it is capable of offering numerical control system, SVP(Servo Variable Pump) system, AC servo system and industrial robotics which are widely applied in Metal forming, Textile, Packaging, Auto and Printing industries etc.,

Estun Automation Technology Co., Ltd.
Estun Automation Technology Company is a leading manufacturer which specializes in R&D, manufacturing and sales of reliable AC servo drive and motor. All of our products are strictly manufactured under ISO9001 quality control system and key electronic elements are imported from reputable overseas giant companies. As a result, we were awarded CE certificate in 2006.

After years of efforts, we have developed our own state-of-the-art IPR mature technology which is of the world's first class and much more attractively priced due to the competitive advantage of producing in China. We offer servo motors and drives with high reliability, and a high ratio of performance/price which, in turn, shall promise our clients good return upon cooperation with us. Just like our business philosophy goes "Growing Together". 2012 Chinese customs statistics shows that about 80% of Chinese servo system export was done by Estun in quantity.

At present, we are able to provide three series of all digital AC servo drives and five series of servo motors with a power range from 200W to 105kw which can be applied in a variety of industries such as: Machine tools, packaging, textiles, semiconductors, plastic, printing etc.
