Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P |
Items | Specifications | ||
Input Power Supply | Main Circuit | 100V | Single-Phase 100~120VAC (50/60Hz) (0.2kW-0.75kW) |
200V | Single-Phase 200~230VAC (50/60Hz) (0.05kW-0.4kW) | ||
Three -Phase 200~230VAC (50/60Hz) (0.75kW-5.0kW) | |||
400V | Three-phase 380~440VAC +10%~-15%(50/60Hz) | ||
Control Circuit | 100V | Single-Phase 100~120VAC (50/60Hz) (0.2kW-0.75kW) | |
200V | Single-Phase 200~230VAC (50/60Hz) (0.05kW-0.4kW) | ||
400V | 24VDC (1.0kW-7.0kW) | ||
Single-phase 380~440VAC (50/60Hz) (7.5kW-22kW) | |||
Control Method | SVPWM Control | ||
Feedback | Serial Encoder:131072P/R /1048576 P/R | ||
Resolver:65536P/R(Max.) | |||
Incremental Wire-saving type:2500 P/R | |||
Operating Conditions | Ambient/Storage Temperature | Ambient temperature:0~+55ºC Storage temperature:-25~+85ºC | |
Ambient/Storage Humidity | 5%~95% RH (with no condensation) | ||
Elevation | 1000m or less | ||
Vibration/ShockResistance | Vibration Resistance:4.9m/s2,Impact Resistance:19.6m/s2 | ||
Electric Power System | TN system *3 | ||
Configuration | Base-mounted | ||
Performance | Speed Control Range | 1:5000 | |
Speed Regulation | Load Regulation | 0~100% load:±0.01% or less(at rated speed) | |
Voltage Regulation | Rated voltage ±10%:0%(at rated speed) | ||
Temperature Regulation | 25±25ºC:±0.1% or less(at rated speed) | ||
Torque Control | Analog Reference Input | Reference Voltage | ±10VDC at rated torque(Variable setting range:±0~10VDC) Max. input voltage:±12V |
Input Impedance | About 10MΩ or above | ||
Circuit Time Constant | 10μs | ||
Speed Control | Analog Input Reference | Reference Voltage | ±10VDC at rated speed(Variable setting range:±0~10VDC) Max. input voltage:±12V |
Input Impedance | About 10MΩ or above | ||
Circuit Time Constant | 10μs | ||
Speed Selection | Rotation Direction Selection | With /P-CON signal | |
Speed Selection | Speed 1 to 7 | ||
Function | Soft Start Setting | 0~10s(Can be set individually for acceleration and deceleration.) | |
Position Control | Pulse Reference | Type | Sign + pulse train;CCW + CW pulse train; 90°phase difference 2-phase (phase A + phase B) |
Form | Non-insulated linde driver (about + 5V), open collector | ||
Frequency | ×1 multiplier:4Mpps ×2 multiplier:2Mpps ×4 multiplier:1Mpps Open collector:200Kpps Frequency will begin to decline when the duty ratio error occurs.. | ||
Position Reference Setting | Position Setting | 16 postion nodes can be set. | |
I/O Signals | Encoder Dividing Pulses Output | Phase-A, phase-B, phase-C, line driver output Number of dividing pulses:any | |
Sequence Input | Number of channels | 8 channels | |
Function | Signal allocations and positive/negative logic modifications: Servo ON(/S-ON),P control(/P-CON),alarm reset(/ALM-RST),position error clear(/CLR), forward run prohibited(P-OT),reverse run prohibited(N-OT),forward current limit(/P-CL), reverse current limit(/N-CL) and so on. | ||
Sequence Output | Number of channels | 4 channels | |
Function | Signal allocations and positive/negative logic modifications: Positioning completion(/COIN), speed coincidence(/V-CMP),servomotor rotation detection(/TGON), servo ready(/S-RDY),torque limit output(/CLT), brake interlock output (/BK), encoder C pulse(/PGC) and Over travel (/OT). | ||
Regenerative Functions | 0.75kW~7.5kW:internal regenerative resistor;11kW~22kW:external regenerative resistor | ||
Protection Functions | Overcurrent, overvoltage,low voltage, overload,regeneration error,overspeed,etc. | ||
Utility Function | Alarm trace back,JOG operation,load inertia detection, etc. | ||
Display Function | CHARGE(Red),POWER(Green),five 7-segment LEDS (Built-in panel operator) | ||
Communication Functiion | RS-485 communication port,MODBUS protocol ;CAN communication port,CANopen protocol; EtherCAT communication module,CiA402 protocol;POWERLINK communication module,CiA402 protocol |

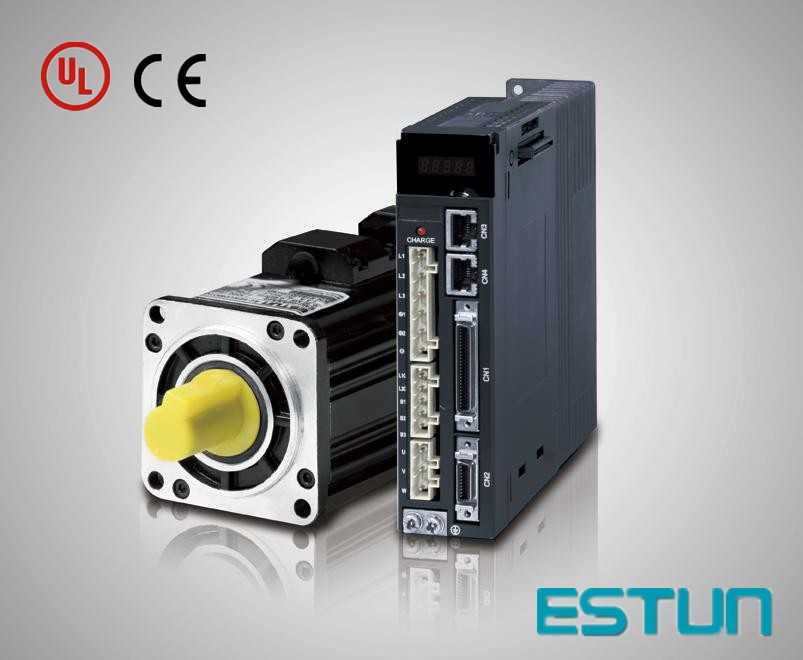

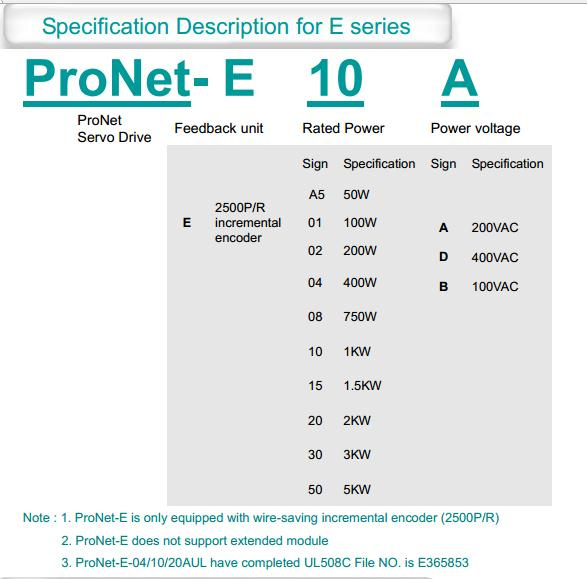

Prod Model: | ProNet-AMA/ ProNet-E/ EDC/ ETS |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Task: | Adjust |
Structure: | Closed-Loop |
Mathematical Model: | Non-Linear |
Function: | Automatic Control |
Certification: | UL |
Condition: | New |
Customized: | Non-Customized |
Signal: | Pulse-Direction, Analog, Canopen, Ethercat |
