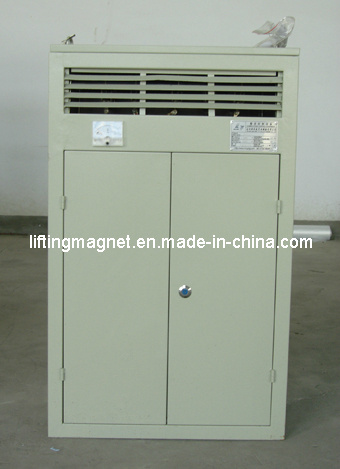

AC to DC Rectifier Control Panel
| Price: |
US $ 800-1500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
01/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Rectification Control Cabinet For Magnetic Separator SSTM Series
Brief Introduction:
This product series adopts bridge rectification mode to provide the power supply in single phase when the capacity is less than or equals to 6.2KW; In three phase for the capactiy more than 6.2KW. There designs push button center control panel as its controlling pattern, or the operating enclosure will be provided per the customers requirement.
Application:
Commutation Controlling Unit Series SSTM(Q)- D- links up with electromagnet iron remove series ML1 under continuous shifting system to be a complete set; Commutation Controlling Unit Series SSTM(Q)- DI- links up with electromagnet iron remover series RCDD to be a complete set. The outdoors protective type is of double cabinet structure featuring waterproof, anti-dust and anti-corrosion and can be available for open air operation.
|
Model |
Input voltage(V) |
Output voltage(V) |
Power(KW) |
External dimension(mm) |
Weight(kg) |
|
W |
D |
H |
X |
Y |
|
Indoor-safe |
SSTM-1.5D-C |
AC-380V |
DC-48V |
1.5 |
500 |
450 |
1200 |
466 |
310 |
180 |
|
SSTM-1.5D-C |
AC-380V |
DC-110V |
1.5 |
500 |
450 |
1200 |
460 |
400 |
180 |
|
SSTM-3.1D-C |
3.1 |
190 |
|
SSTM-4.2D-C |
4.2 |
210 |
|
SSTM-6.2D-C |
DC-220V |
6.2 |
300 |
|
SSTM-9.3D-C |
9.3 |
700 |
530 |
1500 |
660 |
480 |
360 |
|
SSTQ-12D-C |
12 |
390 |
|
Outdoor-safe |
SSTM-1.5-D |
AC-380V |
DC-110V |
1.5 |
770 |
590 |
1500 |
730 |
540 |
240 |
|
SSTM-3.1-D |
3.1 |
250 |
|
SSTM-4.2-D |
4.2 |
260 |
|
SSTM-6.2-D |
DC-220 |
6.2 |
270 |
|
SSTQ-9.3-D |
9.3 |
920 |
680 |
1570 |
880 |
630 |
520 |
|
SSTQ-12-D |
12 |
560 |
| Prod Model: |
SSTM-4.2D-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey |
| Input AC Voltage: |
380V |
| Output DC Voltage: |
110V |
| Rated Output Power: |
4.2kw |
| Working Condition: |
Indoors Type |
| Phase Number: |
Single Phase |
| Weight: |
210kg |
| Application: |
Used with Electromagnetic Separator |
| Task: |
Adjust |
| Structure: |
Closed-Loop |
| Signal: |
Continuous |
| Mathematical Model: |
Non-Linear |
