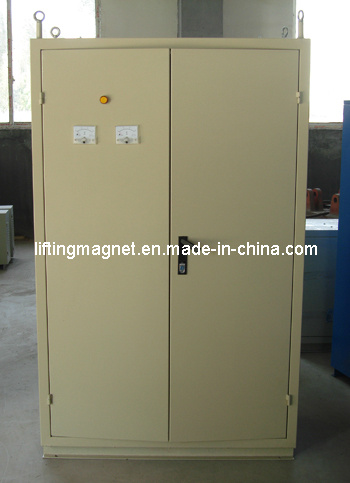

Noncontacting Commutation Control Cabinet
Product Specifications
| Prod Model: |
GTBMT-25E-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey |
| Input AC Voltage: |
380V |
| Output DC Voltage: |
0-180V,220V |
| Rated Output Power: |
25kw |
| Controlled Electromagnet Power: |
25kw |
| Magnetism Sustaining Time: |
5/10/15/20mins |
| Weight: |
320kg |
| Function: |
Magnetism Sustaining and Regulating |
| Application: |
Used with Electromagnet as Complete Equipment |
| Task: |
Program |
| Structure: |
Closed-Loop |
| Signal: |
Continuous |
| Mathematical Model: |
Non-Linear |
Product Description
Power-Cut Magnetism Sustaining Commutation Controlling Unit
GTBM & GTBMT Optional:
--GTBM is designed for rated voltage mode controlling type
--GTBMT: Has the funtion of power-cut magnetism sustaining and magnetism regulating, which can easily control the pieces of being handled steel plates by field exciting voltage to adjust the electromagnet freely. Magnetism Sustaining and Regulating Control Cabinet with Ventilation System GTBMT Series
Main Features:
--It will auto changeover the power supply in case of sudden power-cut of transmission-line system of eclectric power during operation. The holding materials will be guranteed not to fall down during the set time, and the band-tupe brake of the hoister will be open to release the attached materials down to ground safety.
--The unit has complete integration provided special charging equipment and wonderful testing&display alarm system.
--Using valve controlled all sealed non-service plumbic acid butteries, auto charging without man-watching. The butteries will auto changeover the charging mode by self monitoring. It has a long durability.
--The unit is light and compact. There is no special requirement for installation; Easy and convenient to be serviced.
Ordering Instruction:
Contactless power-cut magntism sustaining mode and contactless strong excitation controlling mode are VT-GTBM- & VTO-GTBM-. The technial data are the same.
Model designation:
G(type code): Cabinet type
TB: Power-cut magnet sustaining equipment
M: Service free mode
T: For magnetic regulating mode
E: Rated output power
C: For indoors
Rectification control
cabinet Model |
Input AC
voltage(V) |
Output DC
voltage(V) |
Rated output
power(kw) |
Controlled electromagnet
power(kw) |
Rated magnetic
sustainning time |
Overall dimension ( mm ) and installation size |
Weight(kg) |
|
W |
D |
H |
X |
Y |
installation
port |
|
GTBMT-7E-C |
380 |
0-180V,220V |
7 |
10 |
5min,10min,15min,20min |
1000 |
450 |
1520 |
795 |
420 |
4-ø14 |
250 |
|
GTBMT-15E-C |
380 |
15 |
20 |
1000 |
450 |
1520 |
795 |
420 |
300 |
|
GTBMT-25E-C |
380 |
25 |
25 |
900 |
530 |
1750 |
860 |
480 |
320 |
|
GTBMT-38E-C |
380 |
38 |
38 |
1100 |
530 |
1750 |
1060 |
480 |
380 |
Yueyang Shengang Lifting Electromagnet Co., Ltd., You Best Supplier:
1. Reliable manufacturer with 12 years experience
2. Mature technique and experienced workers
3. 100% good quality and Competitive prices
4. Authorized certificates like SGS and ISO9001
5. Thoughtful customer service within 24 hours
6. Fast and safe delivery
YueYang ShenGang Lifting Electromagnet Co, . Ltd located in Junshan Industrial Park, Yueyang city, Hunan province, which is a one of the electromagnet equipment manufacturer with the largest scale and the most complete product range in China. ShenGang integrates its functions with scientific research and development, engineering design, production and commission service. ShenGang is a high and new technology enterprise in Hunan province and has obtained ten national patents successively. Such as Power-cut Magnetic Sustaining Microcomputer Automatic Distribution Iron System, Electromagnetic Stirring System With Complete Set Of Control System, Multi-functional Lifting Electromagnet. The main products are widely applicable to metallurgy, electricity, mine, coal, chemical industry, building materials, cement, refractory materials, papermaking, glass industry and hoisting and conveying industry, which also have good sell to Japan, East Asia countries and some region of Europe, America and Southeast Asia.
ShenGang has been enjoying the support and cooperation of many scientific research institutions and numerous customers at home and abroad for recent years. It also has many years of experiences for researching, developing and manufacturing. It adopts up-to-date designing method and exquisite technology to provide the customers with the most advanced technology of superior products and perfect service. The main products include lifting electromagnet series, electromagnetic iron separator series, permanent-magnetic iron separator, commutation controlling unit series, cable reel series, electromagnetic stirrer series, permanent-magnet lifter, metal detector, magnetic drum separator, high and low voltage frequency conversion speed regulating system, and constant voltage water supply system.
ShenGang will continuously open up and make innovations under the enterprise spirit of being pioneering and innovative, pragmatic, solidarity and hard work, top -notch, concerned before our customers else and enjoy ourselves after our customers find their joys. To strive to develop and expand in the keen market competition, to become the world' S electromagnetic industry a new aircraft carrier.
Enterprise Tenet: Technology works, Customer first, People oriented, Win-win cooperation
