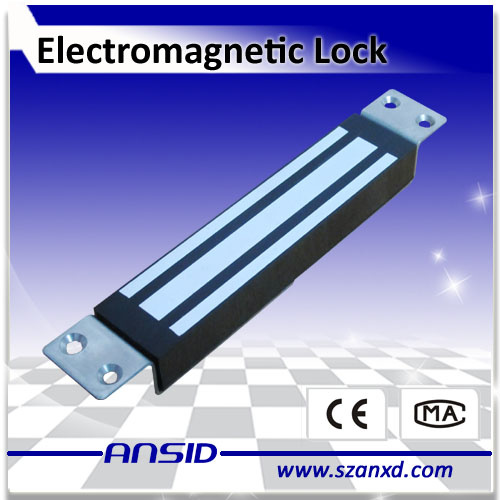

Access Control System Electronic Lock
Main Features:
1. High Quality Single Door Electric magnetic Lock 180KG(350Lbs)
2. Anti-Residual Magnetism Designed.
3. Adjustable Dual Voltage Design
4. Shell Finishing: Anodized Aluminum
5. Suitable for wooden door, glass door, metal door, fireproof door
6. Brackets optional: L-Shape; LZ-Shape, U-Shape
7.24 months Warranty
8. CE, MA standard
|
Specifications: |
|
|
Lock Dimension |
170Lx43Wx21H(mm) |
|
Armature Dimension |
130Lx35Wx9H(mm) |
|
Holding Force |
180kg(350Lbs) |
|
Input Voltage |
12/24VDC |
|
Current |
12V/300mA 24V/150mA (±5%) |
|
Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
|
Operating Temp |
-10~+55(14-131F) |
|
Humidity |
0~90%(non-condensing) |
|
Cover Finish |
Anodized aluminum |
|
Lock Finish |
Zinc |
|
Armature Plate Finish |
Zinc |
|
Weight |
1.15KG (±1%) |
