Product Specifications
| Prod Model: |
HHJ2-8, HHJ2-8V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Power: |
Built-in Power(Lithium Battery Inside) |
| Working Mode: |
Addition Counting; 8-Bit LED Display |
| Counting Speed: |
High Frequency 1000 Times/Second; Low: 30times/S |
| Counting Range: |
1-99999999 |
| Input Signal: |
Contact Signal/Electrical Level Signal |
| Power Off Memory: |
5 Years |
| Outline Dimension: |
24*48*54mm |
| Hole Size: |
22*45mm |
| Installation Mode: |
Panel Type |
| Type: |
Counter |
| Usage: |
Industrial |
| Function: |
Addition Counter |
| Theory: |
Digital |
Product Description

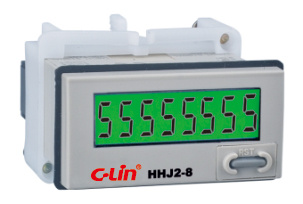

HHJ2-8&HHJ2-8V Accumulative Counter
General Introduction
Counting relay is used in the control circuit of alternating current 50 Hz, rated working voltage 380V or below 380V, direct working voltage 24V as the counting component which connects and break the circuit by the set number.
Counting relay, adopting the singlechip circuit and high performance counting chip, possesses of wide counting range, multiple counting modes and counting signal input.
The product, characterized by the stable counting performance and reliability, is widely used in the industrial automation control.
This series counting relays/meter counters meet the standard of GB14048.5 and JB/T8794 and got CCC approval.
Technical Specification
| Model Number | HHJ2-8, HHJ2-8V |
| Product name | Accumulative Counter/Counting Relay/Counter Relay |
| Working power | personal power supply(equipped with lithium battery) |
| Working mode | addition count, 8-bit LED display |
| Count speed | high frequency: 1000times/second |
| low frequency: 30times/second |
| Count range | 1-99999999 |
| Input signal | HHJ2-8: Contact signal |
| HHJ2-8V: electrical level signal |
| Output mode | N or C mode |
| No-power memory | 5 years |
| Overall Dimension | 24*48*54 |
| Mounting Dimension | 22*45mm |
| Installation | Panel mounting |
