Product Specifications
| Prod Model: |
JDM9-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Counter |
| Usage: |
Industrial |
| Function: |
Subtract Counter |
| Theory: |
Digital |
Product Description

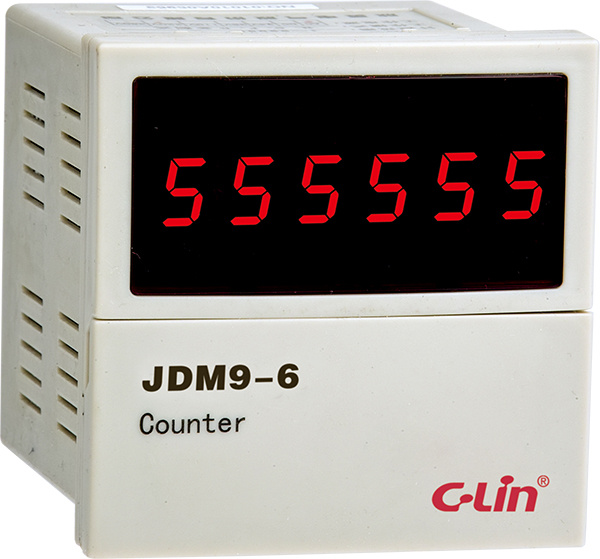

JDM9-6 Digital Display Counting Relay
General Introduction
Counting relay is used in the control circuit of alternating current 50 Hz, rated working voltage 380V or below 380V, direct working voltage 24V as the counting component which connects and break the circuit by the set number.
Counting relay, adopting the singlechip circuit and high performance counting chip, possesses of wide counting range, multiple counting modes and counting signal input.
The product, characterized by the stable counting performance and reliability, is widely used in the industrial automation control.
This series counting relays/meter counters meet the standard of GB14048.5 and JB/T8794 and got CCC approval.
Technical Specification
| Model Number | JDM9-6 |
| Product name | Digital Display Counting Relay/Counting Relay / Counter Relay/ Counter |
| Working power | DC24V; AC24V, 220V, 380V |
| Working mode | addition count, subtraction count |
| Count speed | high frequency: 1000times/second |
| low frequency: 30times/second |
| Count range | (1-999999)*1, *10, *100 |
| Input signal | Contact signal |
| PNP normally open photoelectric proximity switch |
| Output mode | N, C, F, R, T mode |
| No-power memory | 10 years |
| Contact form | one group normally open normally close contact |
| Contact capacity | 5A AC220V(resistance) |
| Overall Dimension | 72*72*81mm |
| Mounting Dimension | 68*68mm |
| Installation | Panel mounting |
