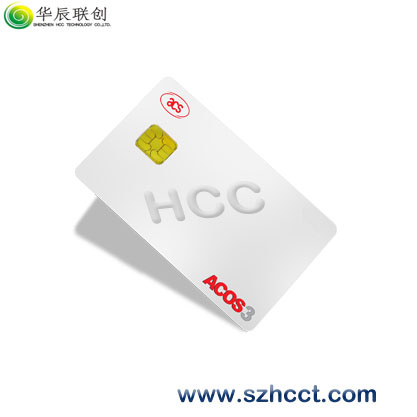

Acos-3 Microprocessor Smart IC Card ISO14443A
Product Specifications
| Prod Model: |
ACOS3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Data Transfer Rate: |
Supports106kbps, 212kbps, 424kbps and 848kbps |
| Compatible: |
Compatible with ISO14443A |
| Interface: |
Contactless Interface |
| Function: |
Payment |
| Usage: |
Microprocessor Card |
| Material: |
Microprocessor Card |
| Carrier Frequency: |
Microprocessor Card |
| Application Field: |
Microprocessor Card |
| Data Transmission Mode: |
Microprocessor Card |
| Structure: |
Microprocessor Card |
| Type: |
Microprocessor Card |
| Power Supply Mode: |
Microprocessor Card |
| Classification: |
Microprocessor Card |
Product Description
General
ACOS3 - Ideal Solution for Payment/Loyalty. ACS develops smart card operating systems (ACOS) as its intellectual property. Developed by our dedicated team of specialists, the ACOS3 Microprocessor Card unlocks the potential of a smart card. It enables a single card to support various applications such as loyalty program, parking registration, network access control, public transportation, telecommunication, and electronic purse. ACOS3 is specifically designed for highly secure payment applications. Featuring a high degree of security, ACOS3 is particularly suitable for secure loyalty programs, network access control and epurse applications. Likewise, it may be utilized for common payment solutions. Additionally, security provided by ACOS3 can be enhanced further by utilizing ACOS6-SAM, which, by enabling Mutual Authentication, Secure Messaging, Key Diversification and Key Injection, perfectly secures various applications. ACOS3 provides three interface options:
Contact Interface
Additionally, ACOS3 could have other options:
ACOS3-Mag (Contact card with magnetic stripe)
ACOS3-Hybrid (Contact and Contactless Smart card)
Contactless interface
Combi interface
| Contact interface |
| Full 32/72 Kbytes of EEPROM memory for application data |
| Compliance with ISO 7816 parts 1, 2, 3; supporting the T = 0 direct protocol |
| ISO7816-2 compliant 8-contact module |
| High-speed transmission possible (9.6 to 223.2 kbps) |
| Contactless interface |
| Full 8 Kbytes of EEPROM memory for application data |
| Compliance with ISO 14443 parts 1,2,3,4; supporting the T = CL protocol |
| Fully compatible with ISO14443A |
| Data transfer rate supports106kbps, 212kbps, 424kbps and 848kbps |
| Combi interface |
| Full 8 Kbytes of EEPROM memory for application data |
| Compliance with ISO 7816 parts 1, 2, 3; supporting the T = 0 direct protocol |
| Compliance with ISO 7816 Parts 1, 2, 3, 4 |
| ISO7816-2 compliant 8-contact module |
| Compliance with ISO 14443 parts 1,2,3,4; supporting the T = CL protocol |
| Fully compatible with ISO14443A |
| High-speed transmission possible (9.6 to 223.2 kbps) |
| Data transfer rate supports 106kbps, 212kbps, 424kbps and 848kbps |
| Common features among the three interfaces |
| DES / 3DES and MAC capabilities |
| Five secret codes + issuer code |
| PIN code that can be updated by card holder |
| Key pair for mutual authentication |
| Session key based on FIPS140-2 compliant true random numbers |
| Transparent files and linear files with fixed record length are available |
| Secure messaging option ensures transmission of user data is secured against eavesdropping,replay attack and unauthorized modifications. |
| Account data structure for highly secure payment applications as an optional feature |
| Completely backward compatible with ACOS1 / ACOS2 cards |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
