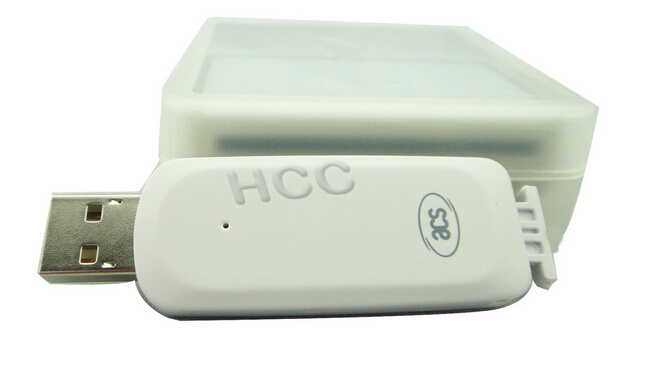

ACS Contact USB IC card reader--ACR38T
General
Sporting a new sleek case, the new ACR38T-D1 SIM-Sized Smart Card Reader is a small USB device that delivers more than what meets the eye. A powerful reader that packs a lot in feature despite its size, it has all the functionalities of a standard-sized ACR38 PC-Linked Reader, and supports ISO 7816 cards, MCU cards, memory cards, and GSM 11.11-compliant cards.
ACR38T-D1 has PC/SC and CCID compliance that make for its seamless interoperability and use across different platforms, particularly in PC environments. With its short circuit protection feature, it guarantees safe and durable usage all the time.
Weighing nothing more than your standard USB stick, ACR38T-D1 is a device you can bring anywhere to keep smart card technology right at your fingertips.
Feature
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards:
Cards following the I2C bus protocol (free memory cards), including:
Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
SGS-Thomson: ST14C02C, ST14C04C
Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
Cards with '104' type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Application
e-Government
Banking & Payment
e-Healthcare
Public Key Infrastructure
Access Control
Network Security
e-Purse & Lo
Dimension | 67.6mm (L) x 23.0mm (W) x 8.0mm (H) | Interface | USB 2.0 full speed | Supply Voltage | Regulated 5V DC | Supply Current | Max. 50mA | Operating Temperature | 0-50 | CLK Frequency | 4 MHz | MTBF | 500,000 hours | Smart Card Interface Support | ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) | Compliance/Certifications | EN60950/IEC 60950, ISO 7816, CE, FCC, PC/SC CCID, RoHS, USB Full Speed Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012 | Operating System Support | Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8 Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x64, Win 2012 x64 Mac Linux Android TM 3.1 and above |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
