Product Specifications
| Prod Model: |
DLGK-JD3 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Input Power Supply: |
Three Phase Five Wires ~380V±10% 50Hz; |
| Flow: |
Below 10L/Min |
| Capacity: |
<1kVA |
| Nominal Capacity: |
:10L |
| Control: |
PLC Optional |
| Shape Dimensionthe Object: |
800 *600 *2100mm |
Product Description

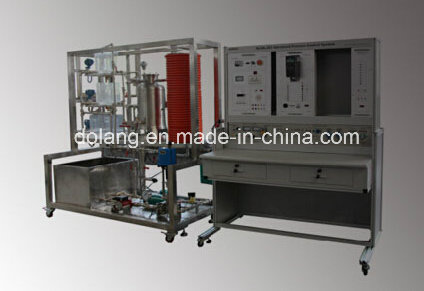

Advanced Process Control System Education Equipment
DLGK-JD3
System configuration:
The advanced process control systems experiment device contains of the following
Several parts (two control system can also tied for use (monitoring), experiment
Device installed without water, rusty phenomenon, steady operation, the noise is small,
All the water valve uses the copper electromagnetic valve, the controlled object
Separate with the control electrical system parts, avoid leakage of liquid cause electrical accident)
System total description:
1, Work power: The three-phase four-wire 380V± 5% 50Hz;
2, Shape dimension: The object 800 *600 *2100mm;
3, The machine capacity: < 5 KVA; Control signal: Voltage 1 ~ 5 V;
4, The collection of three parameters, for instance, a group measure flow, a group
Measure temperature, a group measure pressure;
5, Two control system can also tied for use (monitoring), experiment device installed
Without water, rusty phenomenon, stable operation, the noise is small, all the water
Valve uses the copper electromagnetic valve, the controlled object separate with the
Control electrical system parts, avoid leakage of liquid cause electrical accident;
6, The object system was designed according to the four let system;
JD2 The fieldbus process control system
It is built based on conventional process control integrated experiment system, the
Difference is add part profibus-PA fieldbus detection and actuators. Siemens S7-300
Control system; Based on the bus of SIEMENS S7300 medium PLC field bus control
System; Strong, weak electric signal separation routing, the digital quantity
Input/output use omron relay signal isolation, input/output terminals used Weidmuller
Terminals; Based on SIEMENS S7-300 PLC medium PLC expand superior process
Control system; Based on SIEMENS S7300PLC fieldbus upper control system.
