Agent for Eds800 Series Micro Frequency Inverter, VFD 50Hz to 60Hz

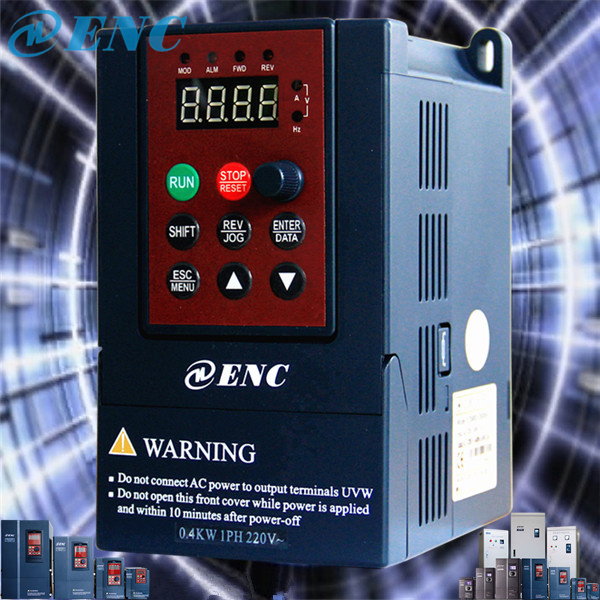

Name: Agent for Eds800 Series Micro Frequency Inverter, VFD 50Hz to 60Hz
Brand: china-manufacturer-directory.com
SKU: 731505795
Availability: InStock
Rating: 4.7 (30 reviews)

Supplier:	Shenzhen Encom Electric Technologies Co., Ltd.
Price:	US $ 62-70/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,others

Product Specifications

Prod Model:	EDS800 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gross Weight:	1.1kg
Size:	Super Mini (8X14X12cm)
Brand:	Enc
Dealership And Agent:	Available and Warmly Welcome
Starting Torque:	100% Rated Torque at Low Frequency
Control Method:	V/F Control
CPU:	Futjisu
IGBT:	Infineon
Applications:	General Purpose Applications
Stablility Precion:	High
Principle Of Work:	V/F Control Transducer
Main Circuit Type:	Voltage
Output Type:	Triple
Application:	General Transducer
Switch Mode:	High Carrier Frequency PWM Control

Product Description

Product Description

EDS 800 multi-functional mini frequency inverter is one of China top 10 best-selling low & medium frequency inverter. It features micro size, highly cost-effectiveness, and can be widely used in general purpose applications. EDS800 frequency inverter is designed to meet global OEM and user demands for simplicity, space saving, and cost efficiency. This series product provides intuitive features, such as integral keypad with local potentiometer and control keys that are active right out of the box.

Ratings for EDS800 Series
Single-phase AC 220V± 15% 0.2-1.5KW
Three-phase AC 380V± 15% 0.75-1.5KW

Features of EDS800 Frequency Inverter
Ideal for applications with limited panel space.
Digital inputs control digital outputs based on timer or counter function.
An economical replacement for electromechanical devices or DC solutions.
0...10V or 4 20 mA analog output for feedback or as reference for other drives.
Two analog input channels, including PID capability, offer enhanced application flexibility.
Integral RS485 communications let the drives be used in a multidrop network configuration.
The keypad, control keys and local potentiometer are active out of the box, simplifying start up.
Applications of EDS800 Frequency Inverter
EDS800 Series Mini frequency inverter can be used to Pump, Textiles, Plastics, Ceramics, Blower, Electronics, Numerical Controls, Foods Processing, weaving, transportation machine, packing machine, metallurgy machine, baccy machine, constant pressure water supply, air compressor, air conditioner, music fountain, paper making, and chemical etc.

Packaging & Shipping
Trade terms: FOB, EXW, CIF, CFR
Payment condition: TT, Western Union, Paypal, LC
Lead time: 3-20 days based on quantity
Package: Standard carton package & wooden case for larger piece
Shipment: By sea, by air, or by express delivery

Company Information
Management & R&D Capabilities: Our company is managed in line with Japanese management standard, with a production capacity of 20000 pieces/month. Strong R&D abilities (Over 50 professional R&D engineers). Each product is strictly inspected before delivery.
Main Overseas Markets: Our frequency inverters are mainly exported to Russia, Eastern European countries, Turkey, UAE, Pakistan, India, Vietnam, Thailand, Iran, USA, and Brazil.
Exhibitions: We have just participated MEE in Dubai & Turkey Exhibition this February and March, and will attend Hannover MESSE, Pakistan Exhibition and son on this year.

Powerful Performance, Flexible Control, Highly Cost-effective, Considerate Service
For more Information, please contact me directly!

Item			Item description
Input	Rating volt. frequency		3 phase 380V, 50Hz/60Hz; single phase 220V, 50Hz/60Hz
	Allowed work volt. range		3 phase voltage: 320V~460V; single phase voltage: 200V~260V
Output	Voltage		400V grade: 0~380V; 200V grade: 0~220V
	Frequency		0Hz-400Hz
	Over loading capacity		150% of rating current for1 minute,200% of rating current for 0.5 second;
Control performance	Over loading capacity		150% of rating current for1 minute,200% of rating current for 0.5 second;
	Control mode		Optimum space voltage vector SVPWM constant volt. Frequency ratio V/F control
	Speed regulation range		1:100
	Start-up torque		100% of rating torque at low frequency
	Running speed stable state precision		≤±0.5% of rating synchronous speed
	Frequency precision		Digital setting: max. frequency×±0.01%; Analog setting: max. frequency×±0.5%
	Frequency resolution	Analog setting	0.1% of max. frequency-+96
		Digital setting	0.01Hz
		Exterior pulse	0.5% of max. frequency
	Torque boost		Automatic torque boost,manual torque boost 0.1%~20.0%
	V/F curve (volt. Frequency characteristic)		Set rating frequency randomly at range of 5~400Hz,can choose constant torque, degressive torque 1, degressive torque 2, degressive torque 3 in total 4 kinds of curve
	Accelerating decelerating curve		2 modes: straight line accelerating decelerating and S curve accelerating decelerating; 7 kinds of accelerating decelerating time (unit minute/second can be optioned), max. time 6000 minutes.
	brake	Power consumption brake	exterior brake resistance
		DC brake	Optional start-up and stop,action frequency 0~15Hz,action volt. 0~15%,action time 0~20.0 s
	Jog		Jog frequency range: 0.50Hz~50.00Hz; jog accelerating decelerating time 0.1~60.0s can be set
	Multisection speed running		Realized by interior PLC or control terminal
	Interior PID controller		Be convenient to make closed-loop system
	Automatic energy save running		Optimize V/F curve automatically based on the load to realize power save running
	Automatic volt. regulation (AVR)		Can keep constant output volt. When power source voltage varies.
	Automatic current limiting		Limit running current automatically to avoid frequent over-current which will cause trip
Running function	Running order specified channel		Key pad specified, control terminal specified, serial port specified
	Running frequency specified channel		Digital provision, analog provision, impulse provision, serial port provision, combined provision,can be switched at any time by kinds of method
	pulse output channel		Impulse square wave signal output of 0~20KHz,can realize output of physical parameter such as setting frequency, output frequency etc.
	Analog output channel		1 channel of analog signal output,AO channel can be 4~20mA or 0~10V; through it the inverter can realize output of physical parameter such as setting frequency, output frequency etc.
Keypad	LED display		Can display setting frequency, output frequency, output voltage, output current etc. in total 14 kinds of parameter
	Lock the button		Lock all or part of the buttons(analog potentiometer can't be locked)
Protection function			Over-current protection, over-voltage protection, lack-voltage protection, over-heat protection, over-load protection, missing phase protection (in option)etc.
Fitting parts			brake subassembly, remote-control keypad, connecting cable for remote-control keypad etc.
ambient	Use ambient		indoor,not bare to sunlight,no dust, no corrosive gas, no flammable gas, no oil fog, no vapor, no water drop or salt etc.
	altitude		Lower than 1000m
	Ambient temperature		-10ºC~+40ºC(under ambient temperature 40ºC ~50ºC, please reduce the volume or strengthen heat sink)
	Ambient humidity		Smaller than 95%RH, no condensation water
	vibration		Smaller than 5.9m/s²(0.6g)
	Storage temperature		-40ºC~+70ºC
Configuration	Defending grade		IP20
	Cooling mode		By fan with automatic temperature control
Mounting mode			Wall hanging

Shenzhen Encom Electric Technologies Co., Ltd., with ISO9001: 2008 and CE & SGS certificate, is located in Southeast China, Guangdong Province. Founded by a group of professional personnel who are dedicated to power electronic technology research, development and industrialization in China and overseas all the year round, our company has a team of high qualified administration clerks, a team of high level technology developing personnel and a team of excellent market extending talent. Our company is mainly engaged in developing, producing and selling various frequency speed regulation products in electric transmission and industrial automation fields.

Our company has developed EDS1000 multi-functional universal inverters, EN500 multifunctional universal vector frequency inverter, EN600 high performance flux vector control frequency inverter, EDS2800 series current vector control engineering inverters, EDS2860 series special injection molding machines and EDS800 series mini universal inverters by ourselves successfully. Our unique proprietary technology has been presented completely by above products and other products we intend to develop, and all these products have their own knowledge property rights. We think that our products can fulfill all kinds of demands from you.

456 workers, 10000 square brand-new manufacture base, 10 years experience, 10 years cooperation relationship with Japanese Company Toyo Denki.

Attended FIEE ELETRICA 2013 in Brazil, Germany Hannover Messe, Automation 2013 in India, Dubai MEE(Middle East Electricity) in 2014, ELEKTRO-2014 in Moscow, Russia, Power Technology Pakistan 2014(POGEE);

One hour reach HK port, Guangzhou Canton Fair, all these are why we keep good quality and competitive prices for global valued customers.
