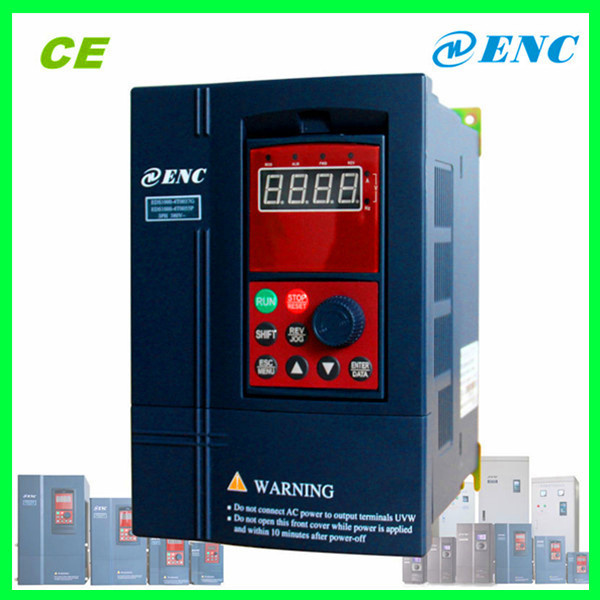

Shenzhen Encom Electric Technologies Co., Ltd. >> CE & ISO: 9001 Certificate AC Frequency Inverter, Encom AC Motor Speed Controller

CE & ISO: 9001 Certificate AC Frequency Inverter, Encom AC Motor Speed Controller

Name: CE & ISO: 9001 Certificate AC Frequency Inverter, Encom AC Motor Speed Controller
Brand: China-Manufacturer-Directory.com
SKU: 742839185
Availability: InStock
Rating: 4.5 (42 reviews)

Supplier:	Shenzhen Encom Electric Technologies Co., Ltd.
Price:	US $ 133USD
Min Order:	1pcs
Quantity::
Trade Terms:	FOB,others

Product Specifications

Prod Model:	EDS1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	3 Phase 380V/415V
Output Voltage:	0~380V
Match Motor:	1.5/2.2kw
Rated Output Current:	3.7/5A
Rated Power:	1.5/2.2kw
Size:	125170135.5mm
G.W.:	2kg
Certificate:	CE ISO9001:2008
Control Mode:	Sensorless Vector Control
Communications:	RS485
Main Circuit Type:	Voltage
Output Type:	Triple
Application:	High Frequency Converter Transducer
Switch Mode:	PWM Control
Principle Of Work:	Sensorless Vector & V/F Control

Product Description

EDS1000 inverter is organic combine of customer's general need and industrial requirement to provide practical PI adjuster/simple PLC/programmable input output terminal control/long-distance synchronous control/impulse frequency provision and other special VSD control with powerful function for customer and to provide highly-integrated incorporative solution of high value for reducing system cost and improving system reliability for device manufacturing and automatization engineering customers.

Merits of EDS1000 series inverter:

Power range: 1 phase 220V 0.4-3.7KW; 3 phase 380V 0.75-55KW; 3 phase 690V 18.5-132KW

1. Adopt space voltage vector PWM control and sensorless vector control.
2.150% of rated torque at 1 Hz frequency.
3. Perfect function, small volume, suitable for all kinds of spot.
4. Bears automatic voltage regulation (AVR) and automatic current limiting function, which makes the system more stable.
5. Built-in PID controller, can realize constant pressure (flux etc. ) "one drives multiple devices" control (function in option). 6.16 (maximum) section speed control and weaving swing frequency function give you more handy operation.
7.0-20kHz pulse input output interface are convenient for making up of digital closed-loop control system.
8. RS485 communication interface(part in option) can be built inside the AC drive to realize centralized control and main auxiliary consecutive action control easily.

Item					Item description
Input	Rating volt., frequency				3 phase 690V grade, 3 phase 690V ,50Hz/60Hz; 3 phase 380V grade, 3 phase 380V ,50Hz/60Hz; 1 phase 220V grade, 1 phase 220V ,50Hz/60Hz
	Allowed work volt. range				3 phase 690 V grade: 586V~760V; 3 phase 380 V grade: 320V~460V 1 phase 220V grade: 200V~260V
Output	Voltage				690V grade: 0~690V; 380V grade: 0~380V; 200V grade: 0~220V
	Frequency				0Hz-400Hz EDS1300: 0Hz-1000Hz
	Over loading capacity				G type: 150% of rating current for1 minute,200% of rating current for 0.5 second; P type: 120% of rating current for 1 minute;
Control performance	Control mode				Speed sensorless slip vector control, open loop V/F control
	Speed regulation range				1: 100
	Start-up torque				150% of rating torque at 1 Hz frequency
	Running speed stable state precision				≤±0.5% of rating synchronous speed
	Frequency precision				Digital setting: max. frequency×±0.01%;analog setting: max.frequency×±0.5%
	Frequency resolution			Analog setting	0.1% of max. frequency
				Digital setting	precision : <100Hz 0.01Hz; ≥100hz: 0.1Hz
				Exterior impulse	0.5% of max. frequency
	Torque boost				Automatic torque boost, manual torque boost 0.1%~12.0%
	V/F curve (volt. frequency characteristic)				Set rating frequency randomly at range of 5~400Hz,can choose constant torque, degressive torque 1, degressive torque 2, degressive torque 3 and user-defined V/F in total 5 kinds of curve
	Accelerating decelerating curve				2 modes: straight line accelerating decelerating and S curve accelerating decelerating; 7 kinds of accelerating decelerating time (unit minute/second can be optioned), max. time 6000 minutes.
	Brake		Power consumption brake		Interior or exterior brake resistance. 690 V grade haven't build-in brake unit .
			DC brake		Optional start-up and stop,action frequency 0~15Hz,action volt. 0~15%,action time 0~20.0 s
	Jog				Jog frequency range: 0.50Hz~50.00Hz; jog accelerating decelerating time 0.1~60.0s can be set
	Multisection speed running				Realized by interior PLC or control terminal
	Interior PID controller				Be convenient to make closed-loop system
	Automatic energy save running				Optimize V/F curve automatically based on the load to realize power save running
	Automatic volt. regulation (AVR)				Can keep constant output volt. When power source voltage varies.
	Automatic current limiting				Limit running current automatically to avoid frequent over-current which will cause trip
Running function	Running order specified channel				Key pad specified, control terminal specified, serial port specified
	Running frequency specified channel				Digital provision, analog provision, impulse provision, serial port provision, combined provision,can be switched at any time by kinds of method
	Pulse output channel				Impulse square wave signal output of 0~20KHz,can realize output of physical parameter such as setting frequency, output frequency etc.
	Analog output channel				2 channel of analog signal output,thereinto AO1 channel can be 4~20mA or 0~10V and AO2 channel is 0~10V; through them the inverter can realize output of physical parameter such as setting frequency, output frequency etc.
Keypad	LED display				Can display setting frequency, output frequency, output voltage, output current etc.
	Lock the button				Lock all or part of the buttons(analog potentiometer can't be locked)
Protection function					Over-current protection, over-voltage protection, lack-voltage protection, over-heat protection, over-load protection, etc.
Fitting parts					brake subassembly, remote-control keypad, connecting cable for remote-control keypad etc.
Cmbient		Use ambient			indoor,not bare to sunlight,no dust, no corrosive gas, no flammable gas, no oil fog, no vapor, no water drop or salt etc.
		Altitude			Lower than 1000m ,if higher than 1000m ,need to reduce amount to use.
		Ambient temperature			-10ºC~+40ºC(under ambient temperature 40ºC ~50ºC, please reduce the volume or strengthen heat sink)
		Ambient humidity			Smaller than 95%RH, no condensation water
		Vibration			Smaller than 5.9m/s²(0.6g)
		Storage temperature			-40ºC~+70ºC
Configuration		Defending grade			IP20
		Cooling mode			By fan with automatic temperature control
Mounting mode					Wall hanging

Shenzhen Encom Electric Technologies Co., Ltd., with ISO9001: 2008 and CE & SGS certificate, is located in Southeast China, Guangdong Province. Founded by a group of professional personnel who are dedicated to power electronic technology research, development and industrialization in China and overseas all the year round, our company has a team of high qualified administration clerks, a team of high level technology developing personnel and a team of excellent market extending talent. Our company is mainly engaged in developing, producing and selling various frequency speed regulation products in electric transmission and industrial automation fields.

Our company has developed EDS1000 multi-functional universal inverters, EN500 multifunctional universal vector frequency inverter, EN600 high performance flux vector control frequency inverter, EDS2800 series current vector control engineering inverters, EDS2860 series special injection molding machines and EDS800 series mini universal inverters by ourselves successfully. Our unique proprietary technology has been presented completely by above products and other products we intend to develop, and all these products have their own knowledge property rights. We think that our products can fulfill all kinds of demands from you.

456 workers, 10000 square brand-new manufacture base, 10 years experience, 10 years cooperation relationship with Japanese Company Toyo Denki.

Attended FIEE ELETRICA 2013 in Brazil, Germany Hannover Messe, Automation 2013 in India, Dubai MEE(Middle East Electricity) in 2014, ELEKTRO-2014 in Moscow, Russia, Power Technology Pakistan 2014(POGEE);

One hour reach HK port, Guangzhou Canton Fair, all these are why we keep good quality and competitive prices for global valued customers.
