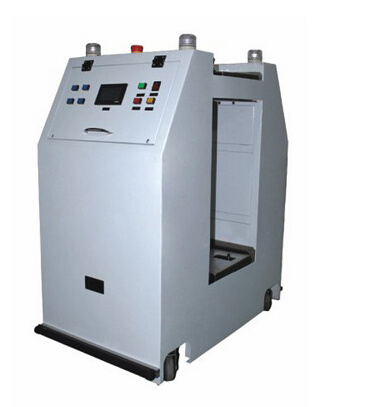

Agv for SMT Loader & Unloader

Name: Agv for SMT Loader & Unloader
Brand: china-manufacturer-directory.com
SKU: 696361622
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Trademark: OKAGV
Packing: Wooden Case
Origin: Shenzhen, China
Product Description
The AGV for SMT Loader & Unloader is the type of AGV only for PCB material frames to the specific loader & unloader for empty frames collection or full frames transportation. Other normal AGV can't have perfect turning or docking, so this AGV can work in compact space and on narrow tape. This AGV can move both directions and turn left and right, or move diffluently and it can also move transversely, use secondary positioning when docking with devices in order to keep < 5mm positioning accuracy. Perfect docking with device accomplished.

Type of AGV	Knapsack AGV
Size	L960W520H1050(mm)
Control Mode	PLC/AGV Moving Control Chip (Optional)
Guidance Mode	Magnetic Tape Guidance /Electro-Optical Guidance /Laser Guidance (Optional)
Direction of Moving	Forward, Backward, Lateral movement, Left & Right Turning, Diffluence
Communication	Wireless LAN (Optional)
Driving Mode	Differential Speed Driving
Power Supply of Driving	DC24V\DC48V
Lifting of Driving	Manual/Electrical Lifting
Load	100\300\500\1000KG(Customizable)
Speed of Moving	30-45m/min (or customizable)
Turning Radius	Minimum to 300mm (Radius of Tape Installation)
Guidance Accuracy	± 10mm
Working Time	24Hours
Climbing Ability	3-5°
Parking Accuracy	± 10mm
Charging Mode	Manual Charging (Automatic Charging Optional)
Battery	Maintenance-Free Rechargeable Battery Ongoing Discharging Times: > 500 Times
Safety Proximity Range	≤ 3m, Adjustable, Less Than 20mm Emergency Breaking Distance
Human-Computer Interaction	With Touch-Screen Human-Computer Interaction, user can easily set parameter, station and warning.
Environment for use	Indoor Temperature: 0-4° C, Relative Humidity: 40%-80%
Protection	Front Roadblock Detecting Sensor + Mechanical Anticollision Dual-Protection
Service Life	> 10 Years
