Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
ISO9000 |
Product Description
- Trademark: OKAGV
- Packing: Wooden Case
- Origin: Shenzhen, China
Product Description

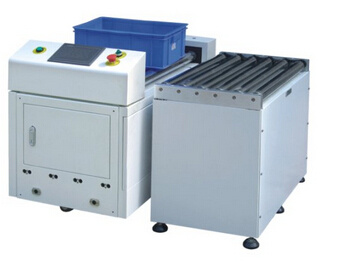

The Bidirectional Driving Self-Unloading AGV. It's easy to finish the carriage by putting materials on the knapsack AGV. It also can be assembled as assembly line instead of flow line when multiple AGVs are used coordinately, which can be regarded as flexible manufacturing system. This type of AGV is widely used in electronic and house appliance industry.
Type of AGV | Bidirectional Self-Unloading AGV |
Size | L1200*W600*H600(mm) |
Control Mode | PLC/AGV Moving Control Chip (Optional) |
Guidance Mode | Magnetic Tape Guidance /Electro-Optical Guidance /Laser Guidance (Optional) |
Direction of Moving | Forward, Backward, Left & Right Turning, Diffluence |
Communication | Wireless LAN (Optional) |
Driving Mode | Differential Speed Driving |
Power Supply of Driving | DC24V\DC48V |
Lifting of Driving | Manual/Electrical Lifting |
Load | 100\300\500\1000KG(Customizable) |
Speed of Moving | 30-45m/min (or customizable) |
Turning Radius | Minimum to 300mm (Radius of Tape Installation) |
Guidance Accuracy | ± 10mm |
Working Time | 24Hours |
Climbing Ability | 3-5° |
Parking Accuracy | ± 10mm |
Charging Mode | Manual Charging (Automatic Charging Optional) |
Battery | Maintenance-Free Rechargeable Battery Ongoing Discharging Times: > 500 Times |
Safety Proximity Range | ≤ 3m, Adjustable, Less Than 20mm Emergency Breaking Distance |
Human-Computer Interaction | With Touch-Screen Human-Computer Interaction, user can easily set parameter, station and warning. |
Environment for use | Indoor Temperature: 0-4° C, Relative Humidity: 40%-80% |
Protection | Front Roadblock Detecting Sensor + Mechanical Anticollision Dual-Protection |
Service Life | > 10 Years |
Ningbo Glorious Co., Ltd. is a manufacturer, which specialize in developing, designing and produce the products of: Adhesive Tape(PVCTape, kintape, DuctTape, AntiSlipTape, AntiCorrosionTape, petro Tape, pipe wrap tape, pipe coat tape, denso tape, warning tape, adhesive floor tape, caution tape, insulation tape, electric tape, outer tape, inner tape, wrap tape); etc in China. We own the most advanced production equipments and passed ISO9000 international quality system. We will be available at any time to provide the latest and the best products. We are devoted to deliver to our customers the highest standard of customer service that is possible at all times. We strive to supply you the best products at the best price possible. Most important, we provide you with the best service possible. From the time you order your items, we will delivery the goods to you within 20 to 30 days of deposit recieved!
Contact us right now to get more informations from us!
