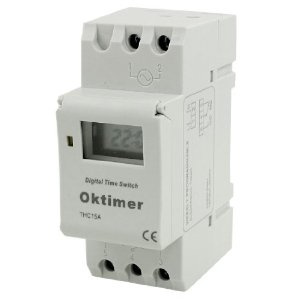

Ahc15A Thc15 Digital LCD Programmable Timer

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Time Switch
Usage:	Summation Meter
Function:	Addition Counter
Theory:	Electronic
Mechanism:	Electronic

Product Description

Model No: AHC15A THC15
Product name: Weekly programmable Electronic Timer
Operating Voltage: 220~240V AC, 50Hz/60Hz, 85%~110%
Power Consumption: 4.5VA
Ambient Temperature: -10~+50 C
Accuracy: ≤ 2 s/day 25C
Minimum Setting Unit: 1 min
Time setting Range: 1 min~168 hours
Contact Capacity: AC 250V, 12A
Contact Form: 1 Z
Working reserve time: 48 hours charged can lasts 15 days
Expectancy Display: LCD
Mounting Form: Front-panel, DIN rail
Life: Electrical ≥ 10 5 Times

Mechanical ≥ 10 5 Times
Operating Mode: -20C~+50 C
Programmable: 10 Time/week or day
Full Timing Range: Per week or per day cycle
AC 220V 16A DIN Rail Digital Programmable Timer Switch Ideal for household use in DB Boards 3500 Watt / 16 Amps 24 hours / 7 days a week programmable Built-in battery for backup the memory when power failure Auto time error correction +/- 30 sec, weekly Repeat programs with 16 on/off settings, and setting on/off manually Specification: Model TM-615 Temp. Range: -20° C+50° C Ui: 220~240V, 50/60Hz Power consumption 4.5 VA (MAX) Display: LCD Switching contact: 1 changeover switch Programs: 16 on/off each day or week Hysteresis 2 sec/day (25° C) Mini interval: 1min Capacity: 16(8) 250V AC Black-out: 60 days Timer range: 1min~168hr Recharge battery: 1.2V 40Ma Average error: 1s/24h, 25° C Weight: 0.2kg Pregramming steps: Steps Key-press programming 1 press " P " setting 1 on time (display 1 on) 2 press H+/M+ setting hours and minutes 3 press D+ select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WEFR, TU TH SA, MO-WE, TH-SA (if it is same everyday, no need to press this key) 4 press " P " Setting 1 OFF time (display 1 off) 5 press H+/M+ Setting hours and minutes turn off time 6 press D+ if you want the same setting everyday, you don't need to press this key 7 repeat step 2-6 Setting the 2 to17 ON and OFF time 8 press"clip_image001 " Completeset Full time clock setting: (1)press the " clip_image001 " and " D+ " at same time to set the week. (2)press the " clip_image001 " and " H+ " at same time to set the hours. (3)press the " clip_image001 " and " M+ " at same time to set the mins. (4)press the " MANUAL " will display " AUTO ON " or " AUTO OFF (5)press the " MANUAL " can change the status, " ON " is normally open, " OFF " is normally off. Package included: 1 x 220V Digital Programmable Timer 1 x User Manual
IC65N MCB
LD7 PFIM MW MY MT MC L7 PLSM/6 MCB CM1 NF ABE MCCB
AEG PFIM FI F7 PKNM LD7 PG TG RCCB F7 LD7 PFIM RCCB L7 PLSM/6 MCB Circuit Breaker
BHCO Adjustable earth leakage Circuit Breaker
PG series breaker is suitable for AC 50Hz or 60Hz, 250V/440V circuit. Withoverload, short circuit and earth leakage protection. On the occasion of shock hazard or earth leakage, the switch cuts off the fault circuit immediately. What is more, the rated current of overload protection is adjustable. The customer can adjust suitable current according to need. Thus its function is very well in overload and leakage protection.

Model No: AHC15A THC15
Product name: Weekly programmable Electronic Timer
Operating Voltage: 220~240V AC, 50Hz/60Hz, 85%~110%
Power Consumption: 4.5VA
Ambient Temperature: -10~+50º C
Accuracy: ≤ 2 s/day  25º C
Minimum Setting Unit: 1 min
Time setting Range: 1 min~168 hours
Contact Capacity:   AC 250V, 12A
Contact Form: 1 Z
Working reserve time: 48 hours charged can lasts 15 days
Expectancy Display: LCD
Mounting Form: Front-panel, DIN rail
Life:	Electrical          ≥ 10 5 Times
	Mechanical    ≥ 10 5 Times
Operating Mode: -20º C~+50º C
Programmable:   10 Time/week or day
Full Timing Range: Per week or per day cycle
