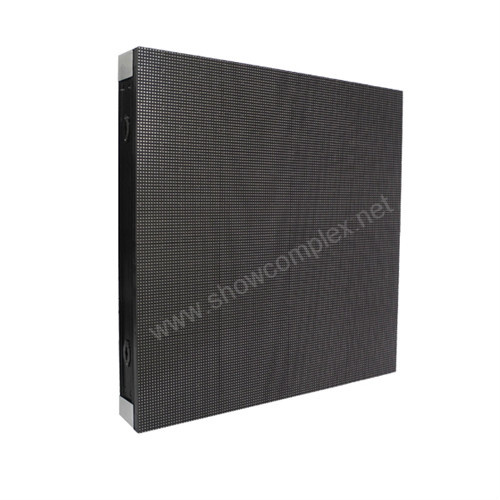

Aif P1.9 Indoor Fixed LED Display

Product Specifications

Prod Model:	P1.9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP43
Certification:	CCC
Pixel Pitch:	1.9mm
Pixel Density:	360000

Product Description

1.High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
2. No mosaic due to excellent flatness and nice uniformity of light-emitting.
3.Wide viewing angles and the horizontal angle can reach 120° , The images effect will not change largely in the range.
4. High density make the images softer and vivider.
5. Single-lamp maintenance with low cost.
6.Good heat dissipation capability because of the unique design of vent fan (liking shutter).
7. Environmental-friendly and energy-saving.

Features:

High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display
Color uniformity, high contrast, clear picture
Ultra thin body, easy to transport and loading and unloading
High stability, high reliability, long service life
Support for both front and back maintenance, easy installation
Parameters:

Model	SC-AIF1.9 Indoor Fixed LED Display
Pixel pitch	1.9mm
LED Encapsulation	1515
Pitch Composing	1R1G1B
Module Size	200mm*150mm
Module Resolution	120dot*90dot
Cabinet Size	400mm * 300mm * 65mm
Cabinet Resolution	240dot*180dot
Density	360000dot/
Brightness	800nits
Brightness Adjustment	Auto 256 level
Viewing Distance	2.5m-10m
View Angle(H)	150°
View Angle(V)	140°
Max Consumption	360W/
Driving Method	Constant Driving
Brightness Adjustment	Manual/Auto/Programmable
Scan Mode	1/16 Scan
MTBF	10000hours
Lifespan	100000hours
Frame Frequency	60Hz
Working Temperature	-20ºC+50ºC
Humidity Range	10% ~ 90%
Voltage	110 ~ 240V
IP Ranking	Indoor use
Blind Spotrate	<0.0003
Signal Type	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance	UTP:100 meters; single-mode fiber: 10 km
