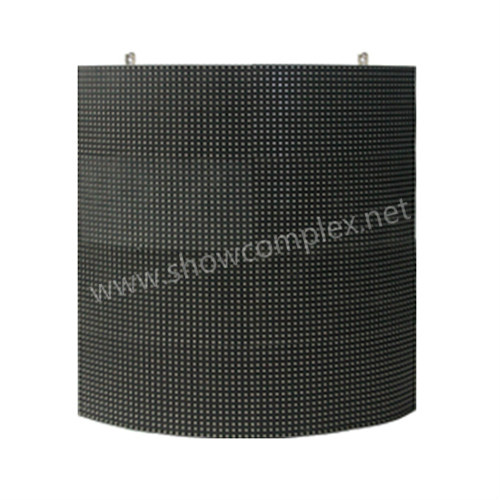

AIS P6.67 Soft LED Display

Product Specifications

Prod Model:	P6.67
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP54
Certification:	CCC
Pixel Pitch:	6.67mm
Pixel Density:	22477dots/Sqm
Scanning Mode:	1/6san

Product Description

The unique features of flexible LED display enable it to make any shape possible:

1. Mounted onto rubber, can be bended into any shape.
2. Just 8mm thin and 0.51kg/pc, one of the thinnest and lightest tiles on the market. Easy to transport and install, saving your transportation fee
3. Magnetic backing, easy to attach to any metal surface, whatever shape or size. Saving cost of frame manufacture and installation space.
4. Convenient maintenance, broken module can be replaced with a new one only,
5. Cost saving in custom charge, clearance fee based on module not screen body
6. Working without fan, popular in Church, Meeting Room and quiet place for zero noise pollution

Features:
Adopt soft Module and it has good flexibility.
High brightness,High definition can display the picture clearly.
Supports brightness adjustment and white balance custom adjustment with 256 levels,
High stability and long lifespan.
Parameters:

Model	SC-AIS 6.67 Soft LED Display
Pixel pitch	6.67mm
LED Encapsulation	3528
Pitch Composing	SMD 3 In 1
Module Size	320mm*160mm
Module Resolution	48dot*24dot
Cabinet Size	640mm * 640mm * 95mm
Cabinet Resolution	96dot*96dot
Density	22500dot/
Brightness	1100-1300nits
Brightness Adjustment	Auto 256 level
Viewing Distance	≥6m
View Angle(H)	160°
View Angle(V)	110°
Max Consumption	168W/
Brightness Adjustment	Manual/Auto/Programmable
Driving Method	1/12Scan Constant Driving
MTBF	>10000hours
Lifespan	100000hours
Frame Frequency	60Hz
Working Temperature	-20ºC+50ºC
Humidity Range	10% ~ 90%
Voltage	110 ~ 240V
IP Ranking	IP43
Blind Spotrate	<0.0003
Signal Type	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance	UTP:100 meters; single-mode fiber: 10 km
