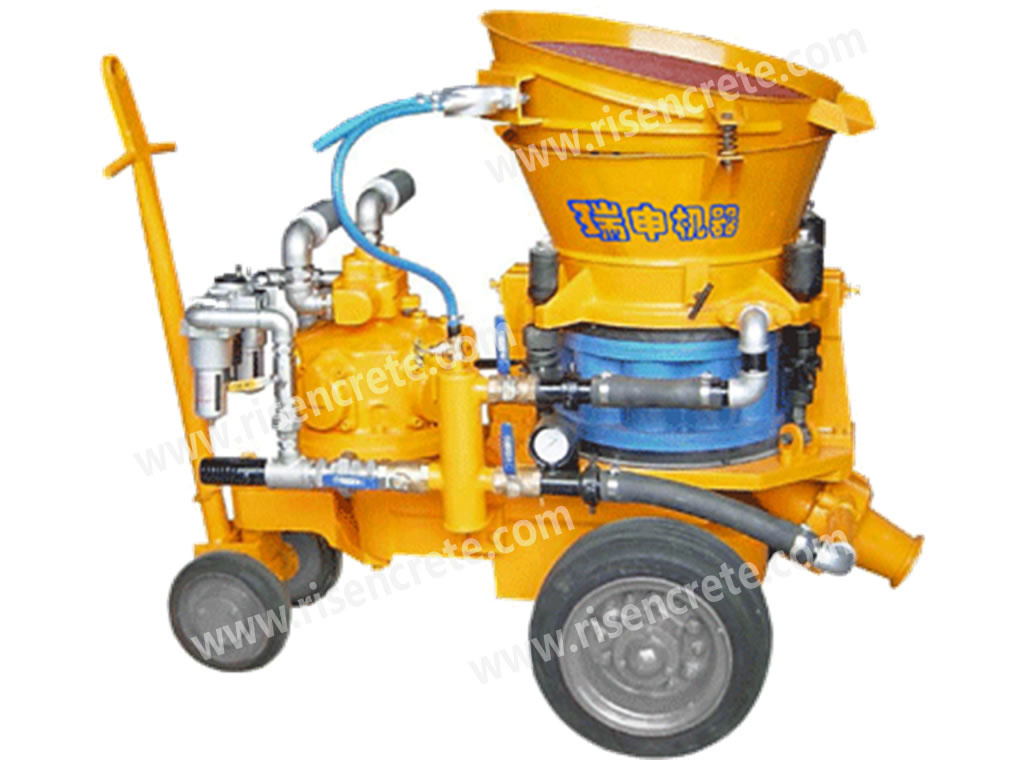

Air Driven Sprayed Concrete Machine

Product Specifications

Prod Model:	PZ-3 air motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Customized Color
Guarantee:	One Year
Minmum Order:	One Set
Size:	Small
Output:	3 Cubic Meter/Hour
Max. Conveying Distance:	200m
Max. Aggregate Size:	10mm
Delivery Time:	The Fastest
Payment Term:	FOB, CNF, CIF
Certificate:	CE
Condition:	New
Certification:	CE
Type:	Shotcrete

Product Description

1. Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
3. Refractory spraying and repair for industrial kilns or kilns' inner liner.

Features:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
5. Three drive models: By Electric motor, air motor or diesel engine.
