Product Specifications
| Prod Model: |
HLG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Heating And Cooling: |
Heating and Cooling |
| Color: |
Blue |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
24-35dB |
| Certification: |
CE |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
20 Kw to 200kw |
Product Description

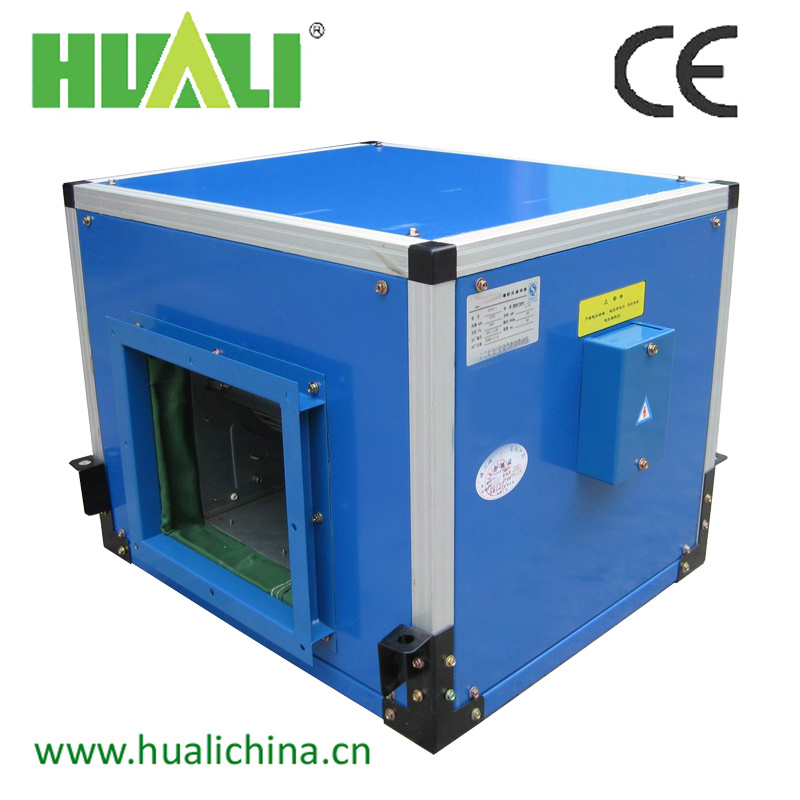

AHU, Air handling unitCeiling horizontal AHU
Ceiling, vertical, horizontal air handling unit, made up by the filters, efficient heat exchangers, low-noise fan, framework, and panels
Suitable for:Air-conditioned area temperature, humidity treatment and air purification, major ending equipment of central air-conditioning system, widely applicable to hotels, theaters, shopping malls, hotels, office buildings and so on various occasions, and meet the requirement of air-conditioning configuration, such us electronics, chemical fiber, textiles, cigarettes, pharmaceuticals, medical care, food, light industries
Adopts advanced technology, well-designed and manufactured for aiming at reducing noise
Energy savingCollects advantages of similar products at home and abroad
Reasonable structure, beautiful appearance, high performance, dependable quality, disassemble and assembly department easily, long life, it is the advanced levels of air-conditioning equipment at home and abroad.
Parameter of AHU| model | Air flow | Moter enternal | Outlet motor | Return air condition |
| New air condition | NOISE |
Weight |
| Rated air flow | Application | PA | Motor power | PA | Motor power | cooling capacity | heating capacity | WATERFLOW | water resistance | Inlet and outlet | cooling capacity | heating capacity | water flow | water resistance | Inlet and outlet |
|
| ×1000CMH | Pa | kW | Pa | kW | kW | L/min | kPa | DN | kW | L/min | kPa | DN | dB(A) | kg |
| G-1 | 1 | 0.8~1.1 | 110 | 0.18 | 100 | 0.25 | 8.42 | 13.04 | 29 | 4.5 | 32 | 17.4 | 16.8 | 53 | 7.2 | 40 | <60 | 80 |
| G-1.5 | 1.5 | 1.1~1.7 | 120 | 0.25 | 120 | 0.37 | 11.96 | 18.14 | 39 | 5.7 | 32 | 25.5 | 24 | 74 | 10.1 | 40 | <60 | 90 |
| G-2 | 2 | 1.7~2.2 | 100 | 0.32 | 150 | 0.55 | 15.42 | 24.82 | 46.5 | 6.6 | 32 | 31.6 | 28.7 | 95.2 | 13 | 40 | <60 | 121 |
| G-2.5 | 2.5 | 2.2~2.7 | 205 | 0.45 | 180 | 0.55 | 17.14 | 27.59 | 51.7 | 8.4 | 32 | 38.7 | 35.3 | 116.8 | 16 | 40 | <60 | 143 |
| G-3 | 3 | 2.7~3.2 | 190 | 0.55 | 200 | 0.75 | 18.74 | 30.17 | 56.5 | 9.8 | 32 | 46 | 41.9 | 138.7 | 20.6 | 40 | <60 | 154 |
| G-3.5 | 3.5 | 3.2~3.7 | 205 | 0.75 | 200 | 1.1 | 23.28 | 37.48 | 70.2 | 11.7 | 40 | 54.9 | 49.9 | 165.5 | 24.2 | 40 | <60 | 176 |
| G-4 | 4 | 3.7~4.3 | 190 | 0.75 | 250 | 1.1 | 27.83 | 44.80 | 83.9 | 15.2 | 40 | 63.9 | 58.1 | 192.5 | 30 | 40 | <60 | 187 |
| G-5 | 5 | 4.3~5.4 | 205 | 2*0.45 | 250 | 2*.0.75 | 34.72 | 55.89 | 104.7 | 17.7 | 40 | 78.5 | 71.4 | 236.7 | 36.4 | 50 | <60 | 220 |
| G-6 | 6 | 5.4~6.4 | 190 | 2*.055 | 300 | 2*1.1 | 41.72 | 67.16 | 125.8 | 24.4 | 40 | 94.8 | 86.2 | 285.7 | 48.6 | 50 | <60 | 242 |
| G-7 | 7 | 6.4~7.4 | 205 | 2*0.75 | 300 | 2*1.1 | 48.69 | 78.39 | 146.8 | 31.5 | 50 | 111 | 101 | 334.7 | 59.5 | 50 | <60 | 253 |
| G-8 | 8 | 7.4~8.5 | 190 | 2*0.75 | 350 | 2*1.5 | 55.69 | 89.66 | 167.9 | 41.1 | 50 | 127.2 | 115.8 | 383.6 | 88.3 | 65 | <60 | 297
|

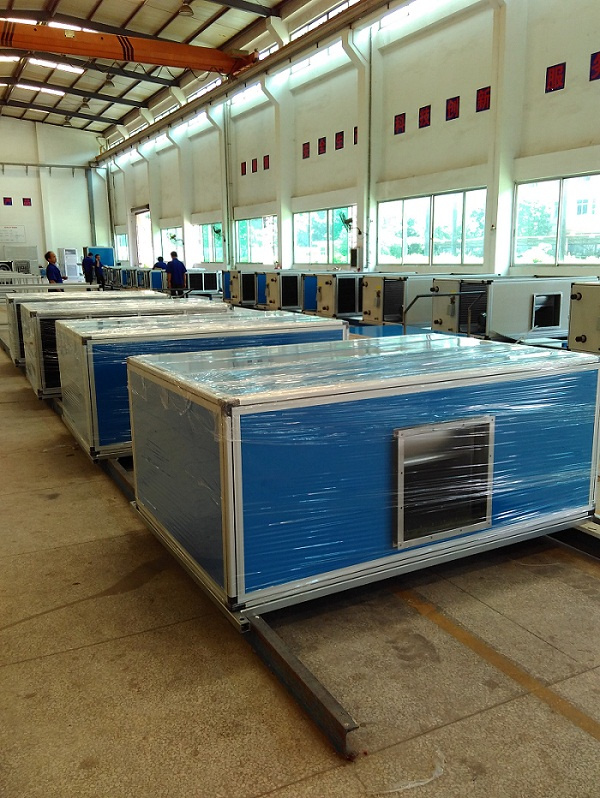

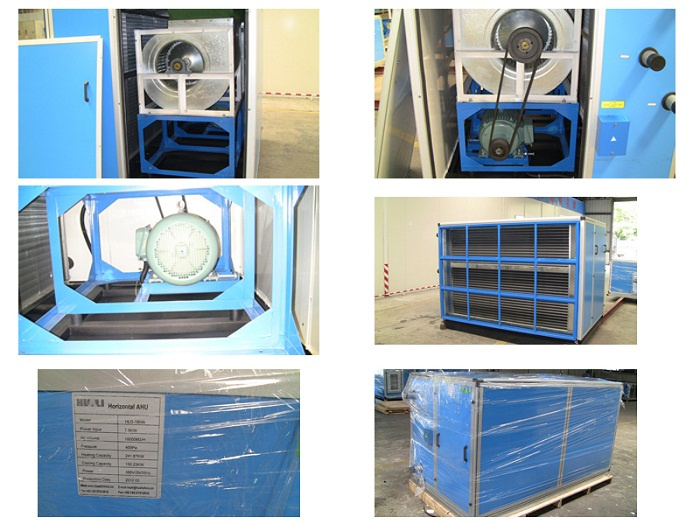

Photos of AHU
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
