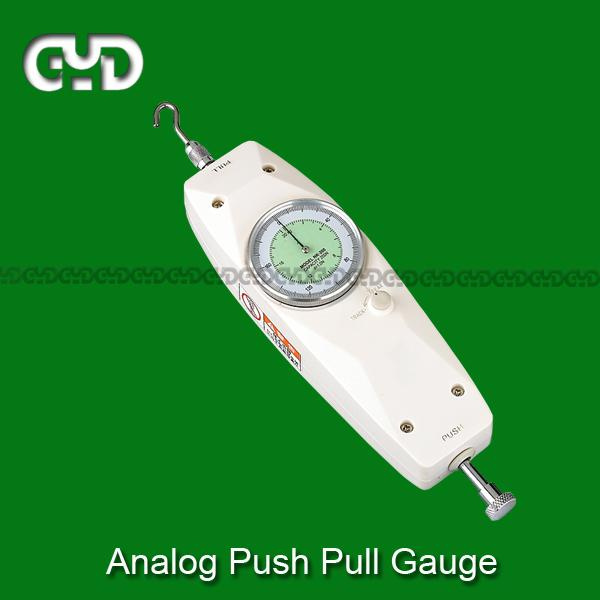

Analog Force Gauge (ALB)

Name: Analog Force Gauge (ALB)
Brand: china-manufacturer-directory.com
SKU: 674977492
Availability: InStock
Rating: 4.9 (24 reviews)

Supplier:	Wenzhou Tripod Instrument Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ALB-2/4/10/20/40/100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Alb-2/4/10/20/40/100
Max Load:	2.2lb/4.5lb/11lb/22lb/45lb/110lb
Load Graduation Value:	0.01lb/0.02lb/0.05lb/0.1lb/0.2lb/0.5lb

Product Description

NK, NLB, ALB, series (pointer push-pull gauge) Series is a high-precision small portable push pull testing equipment. Its products are widely used in the fields of high and low voltage electrical appliances, electronics, hardware lock, auto accessories, lighters and ignition devices, pens, light industry, construction, fishing gear, textile, chemical, mechanical, IT, etc. They are replaced by tubular dynamometer new generation of products.

Main characteristics
1. Pointer instructions, reading easy, accurate, high precision
2. Two units (N, kgf) dual-display, no unit conversion
3. Peak hold and load real-time value indicates the free switch, easy to use
4. Handheld design, compact, simple and can be installed in all the table and they can fit all kinds of fixtures, to facilitate various types of product testing
5. Reliable and attractive packaging, easy to transport, storage, maintenance
6. 1year warranty and lifetime maintenance

(Table-1)Parts technical specifications
Model	NK-10	NK-20	NK-30	NK-50	NK-100	NK-200	NK-300	NK-500
Max load	10N	20N	30N	50N	100N	200N	300N	500N
Max load	1kg	2kg	3kg	5kg	10kg	20kg	30kg	50kg
Min load	1N	2N	3N	5N	10N	20N	30N	50N
Min load	0.1kg	0.2kg	0.3kg	0.5kg	1kg	2kg	3kg	5kg
Load graduation value	0.05N	0.1N	0.2N	0.25N	0.5N	1.0N	2.0N	2.5N
Load graduation value	10g	20g	20g	50g	100g	200g	200g	500g
Rod journey	10mm
Work temperature	20C± 10C
Carry temperature	27C+70C
Relative humidity	15%~80%RH
Work entironment	No vibrancy and no cautery
(Table-2)Parts technical specifications
Model	NLB-10	NLB-20	NLB-30	NLB-50	NLB-100	NLB-200	NLB-300	NLB-500
Max load	10N	20N	30N	50N	100N	200N	300N	500N
Max load	2.2lb	4.4lb	6.6lb	11lb	22lb	44lb	66lb	110lb
Min load	1N	2N	3N	5N	10N	20N	30N	50N
Min load	0.2lb	0.4lb	0.6lb	1lb	2lb	4lb	6lb	10lb
Load graduation value	0.05N	0.1N	0.2N	0.25N	0.5N	1.0N	2.0N	2.5N
Load graduation value	0.02lb	0.04lb	0.04lb	0.1lb	0.2lb	0.4lb	0.4lb	1.01lb
Rod journey	10mm
Work temperature	20C± 10C
Carry temperature	27C+70C
Relative humidity	15%~80%RH
Work entironment	No vibrancy and no cautery
(Table-3)Parts technical specifications
Model	ALB-2	ALB-4	ALB-10	ALB-20	ALB-40	ALB-100
Max load	2lb	4lb	10lb	20lb	40lb	100lb
Max load	0.9KG	1.8KG	4.5KG	9KG	18KG	45KG
Min load	0.2LB	0.4LB	1LB	2LB	4LB	10LB
Min load	0.1kg	0.2kg	0.5kg	1kg	2kg	5kg
Load graduation value	0.01lb	0.02lb	0.05lb	0.1lb	0.2lb	0.5lb
Load graduation value	0.01kg	0.02kg	0.05kg	0.1kg	0.2kg	0.5kg
Rod journey	10mm
Work temperature	20C± 10C
Carry temperature	27C+70C
Relative humidity	15%~80%RH
Work entironment	No vibrancy and no cautery

Table of appendix
MODEL/AMOUNT/NAME	NK-10	NK-20	NK-30	NK-50	NK-100	NK-200	NK-300	NK-500
	NLB-10	NLB-20	NLB-30	NLB-50	NLB-100	NLB-200	NLB-300	NLB-500
	ALB-2	ALB-4		ALB-10	ALB-20	ALB-40		ALB-100
push clamp	4	4	4	4	4	4	4	4
pull clamp	1	1	1	1	1	1	1	1
added pole	1	1	1	1	1	1	1	1
user' s manual	1	1	1	1	1	1	1	1
check certificate	1	1	1	1	1	1	1	1

Wenzhou Tripod Instrument Manufacturing Company Limited is established in 2003 years, (the original company's name is Aliyiqi instrument co. Ltd. ) it is a high-tech enterprise integrating R&D, manufacture, service and trade. Our factory is located in the south foothill of Yandang Montain - Yueqing urban area.

Our company has strong technical strength, excellent design, comprehensive process control and reliable detection means to provide users with cost-effective mechanical equipment. And partial products have through the European Union CE Certification

Our main products are: Force gauges, tension gauge, durometer, and matching manual and electric test stand, which they are suitable for various trades and industries: Electronic appliances, wires and cables, electromagnetic machinery, auto parts, power machinery, chemical glue, building doors and windows, plastic and plastic woven, spring manufacturing, medical equipment, fire equipment, printing and packaging, razor industry, fishing gears, aviation, zipper buttons, textiles, coal, furniture, elevators, lighters and ignition devices, locks, pens, as well as research institutions and schools.

QUALITY POLICY:

Our tenet is "make high-quality goods, serve the public" by fine pre-sales, sales, after-sales service. Insure to Achieve the Fixed Quality And Reliability. Pursue Perfect Service to The Customers
