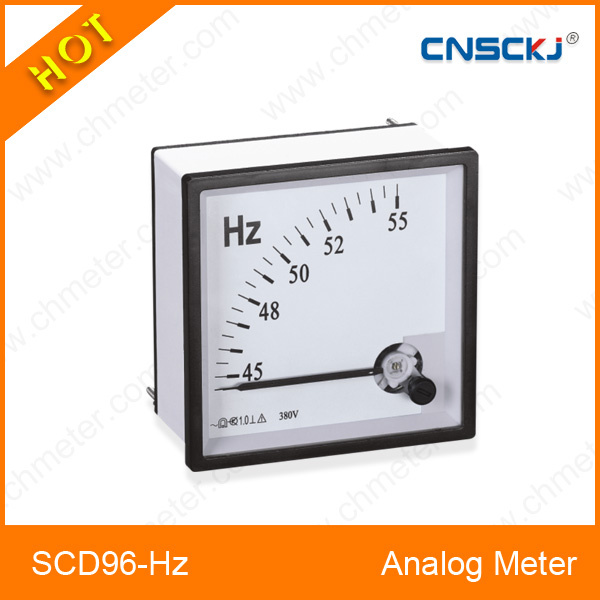

Analog Panel Hz Meter (SCD96-H)

Name: Analog Panel Hz Meter (SCD96-H)
Brand: china-manufacturer-directory.com
SKU: 695113892
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 1.35/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Analog Panel Hz Meter (JY-96)

JY96-Hz\JY72-Hz
Product name: JY96-Hz\JY-72Hz panel meter
Product category > analog panel meter > 96\72 48series
Product model: JY-96 Hz JY-72Hz
Accuracy clsaa: 0.5 or 1.0
Voltage: 110V, 220V, 380V, 415V, 440V
Frequency: 45-55Hz, 45-65Hz, 55-65Hz, 47-53Hz, 57-63Hz,
450-550Hz, 450-650Hz, 550-650Hz

The more technical data
Name		precision	normal specification	remark
AC ammeter	A	1.5	0.5-50A	can be diractly connected
	A	1.5	10/5A-800/5A	secondary current passed by current transformer
	KA	1.5	1KA-10KA	secondary current passed by current transformer
AC voltmeter	V	1.5	10V-600V	can be diractly connected
	KV	1.5	1KV-35KV	100V secondary voltage passed by voltage transformer
DC ammeter	µ A, mA	2.5	50μ A-500μ A 1mA-500mA	can be diractly connected
	A	1.5	1A-15A	can be diractly connected
	A	1.5	15A-750A	outer attached shunt 75mV 60mV 50mV
	KA	1.5	1KA-3KA	outer attached shunt 75mV 60mV 50mV
DC voltmeter	V	1.5	3V-600V	can be diractly connected
	KV	1.5	1KV-3KV	outer attached resistance value
Hz meter	Hz	2.5	45-55HZ 55-65HZ36V. 100V 127V. 220V. 380V
Power meter	W, VAR	2.5	100V 380V 380-380KV 5-10KA/5A	100V secondary voltage passed by voltage transformer
cosφ metert	cosφ	2.5	COS φ =0.5-1-0.5 100V/5A 220V/5A 380V/5A
Overall dimension: 96x96mm				opening overall: 91x91mm

Prod Model:	SCD96-H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	96*96mm
Theory:	Electronic Meter
Display:	Indicator
Power Source:	AC and DC
Installation:	General Installation Meter
Usage:	Voltage Measurement

Wenzhou CNSCKJ Meter Technology Co., Ltd. Specialized in manufacturing various digital display meter, which is member enterprise of the National Electrician instrument& Meter Standardization Committee. The products manufactured by our company strictly complied with IEC 51 publication rev4 issued by international electrician Committee and IEC1010 Standard, and meet the National Standard Requirement GB/T7676-1998. CNSCKJ company have passed through ISO9001: 2000 Certificate and CE Certificate.

(1) We are one of organizations chiefly editing the national standard, Mounted Digital Display Electric Measuring Instrument:

(2)We are involved in the edition of national standards, low-voltage Reactive Power Compensation Switching Device and General Specification for Digital Motor Combined Protection Equipment;

(3)We participate in the revision work of industrial standard, low -voltagea Reactive Power Compensation Control Device

(4) We play an essential role in editing the national standard diagram collections for electrical design, commonly-used Pump Control Circuit Diagram and Commonly-USD Blower Control Circuit Diagram, and the reference diagram collections for eletrical design, Fire-fighting Equipment Power Supply Monitoring System.

Under holding up the enterprise tenet: Survive on quality, Create brand with the credit, CNSCKJ sincerely wish friends at home and abroad to cooperate with for brilliant tomorrow!
