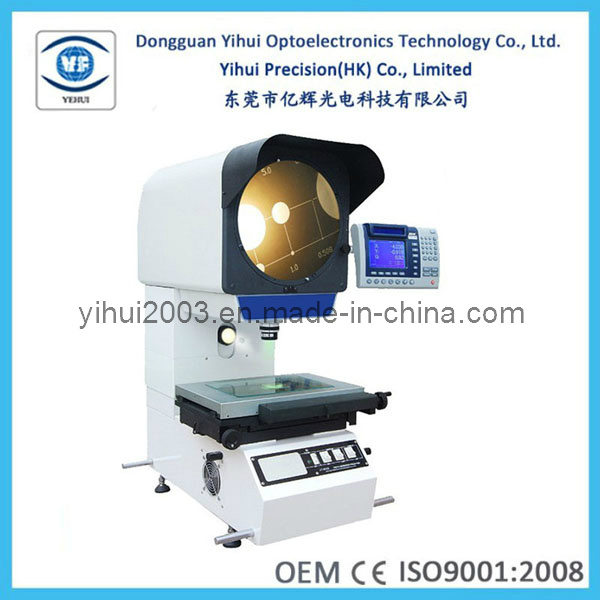

Angle Test Profile Projector Instruments (CPJ-3025)

Name: Angle Test Profile Projector Instruments (CPJ-3025)
Brand: china-manufacturer-directory.com
SKU: 710359685
Availability: InStock
Rating: 5 (134 reviews)

Supplier:	Dongguan Yihui Optoelectronics Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	CPJ-3025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Angle Test Profile Projector Instruments
Usage:	Measuring and Testing
Application:	Machinery, Metal, Mould, Electronic etc
Dimension:	10908301010mm
Travel:	XZY :20010090mm
Accuracy:	0.003mm
Resolution:	0.001mm
Screen Size:	300mm
Package:	Vacuum Packaging and Free Fumigation Wooden Case
Warranty:	12 Months
Type:	Standard
Measure Method:	Manual
Material:	Stainless Steel

Product Description

No Difficult Products to Test in the World!

Angle Test Profile Projector Instruments (CPJ-3025)

Usage:

1. To measure mechanical parts(like the length, angle, contour or surface shape)
2. To inspect surface and complicated work-pieces(such as cam, screw thread, gear and so on )
3. To be used in meter, electron, aerospace machinery, light industry, research institute and measurement- -inspecting department.
"Established in 2003, professional manufacturer of measuring machine. "

12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.

2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.

3. We provide life warranty services of machine for users with cost.
01. If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.

4. Extra warranty period: We will provide to user long-life after-sale advisory service.

5. Our company has spare parts which can be provided for the users with cost.

6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.

Our Pictures:

Working table	Model	CPJ-3020W
	Working table size(mm )	400*150
	X-axis travel(mm)	200
	Z-axis travel(mm)	100
	Y-axis travel(mm)	90 for focus
	Turning range	±15°
	Resolution(X-axis,Z-axis)	0.001mm
	The indication error of coordinate(µm)	<=(4+L/200)
Dimension	LWH(mm)	10908301010
Weight	Unit:(kg)	200
Projector screen	Screen size(mm)	Ø300
	Screen rotary range	0°~360°
	Rotary angle Resolution	1´ or 0.01°
Lens	Lens Multiple	10X(option)	20X(option)	50X(option)	100X(option)
	Object view(mm)	Ø30	Ø15	Ø6	Ø3
	Working distance(mm)	77.7	44.3	38.4	25.3
Data processing system	DC-3000 multi-function data processing system ,appearing in English, can be used to gather the data and measure the point ,line, circle, angle and distance
Illumination	24V/150V halogen transmitted illumination for the launch of 21V/150W halogen lighting, etc. (with illumination light)
Power	110V/220V(AC);50/60HZ; Total power=400W
Option	Mini-printer, Edge detector,M2D software and so on,

Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.

At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.

"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.

Our Target: No Difficult Products To Test In The World!
