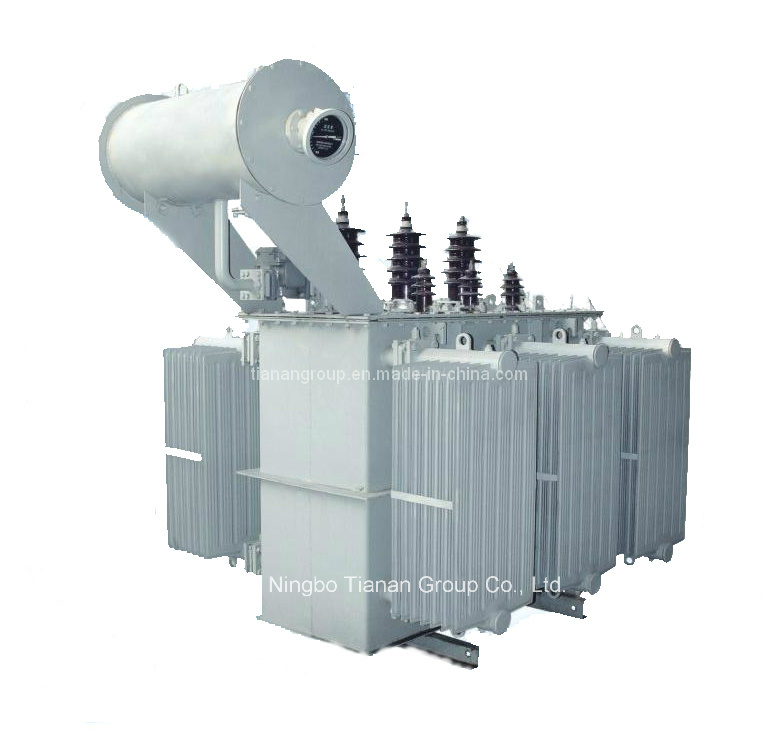

ANSI Three Phase Oil Immersed Power Transformer
Product Specifications
| Prod Model: |
SZ9 |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
Product Description
SZ9 power transformer
Main technical parameters:
1. Capacity range: 50-50000kVA
2. Secondary voltage: 415V, 400V etc.
3. Frequency: 50Hz, 60Hz
4. Type: Single phase, three phase
5. No-load tap changer and on-load tap changer
6. ONAN and ONAF
7. Set-up and set-down type
Standard: IEC60076-1, IEC60076-2, IEC60076-5, IEC60317, ANSI, IEEE, AS, etc.
60 years transformer production experience
| Model | Capacity (KVA) | High Voltage (KV) | Tapping Range | Low Voltage (KV) | Verctor Group | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) | Weight (KG) | Dimensions |
| SZ9-M-200/10 | 200 | 6 | +/-5% | 0.4 | Y,yn0 | 480 | 3060 | 1.7 | 4 | 1160 | 1555*830*1240 |
| SZ9-M-250/10 | 250 | 6 | +/-5% | 0.4 | Y,yn0 | 560 | 3600 | 1.4 | 4 | 1270 | 1690*830*1280 |
| SZ9-M-315/10 | 315 | 6 | +/-5% | 0.4 | Y,yn0 | 670 | 4320 | 1.4 | 4 | 1550 | 1760*850*1345 |
| SZ9-M-400/10 | 400 | 6 | +/-5% | 0.4 | Y,yn0 | 800 | 5220 | 1.3 | 4 | 1730 | 1870*860*1405 |
| SZ9-M-500/10 | 500 | 6 | +/-5% | 0.4 | Y,yn0 | 960 | 6210 | 1.2 | 4 | 1960 | 1875*875*1440 |
| SZ9-M-630/10 | 630 | 6.3 | +/-5% | 0.4 | Y,yn0 | 1200 | 7650 | 1.1 | 4.5 | 2510 | 2060*970*1600 |
| SZ9-M-800/10 | 800 | 6.3 | +/-5% | 0.4 | Y,yn0 | 1400 | 9360 | 1.0 | 4.5 | 2820 | 2110*990*1635 |
| SZ9-M-1000/10 | 1000 | 6.3 | +/-5% | 0.4 | Y,yn0 | 1700 | 10980 | 1.0 | 4.5 | 3130 | 2110*990*1730 |
| SZ9-M-1250/10 | 1250 | 10 | +/-5% | 0.4 | Y,yn0 | 1950 | 13050 | 0.9 | 4.5 | 3520 | 2155*1005*1770 |
| SZ9-M-1600/10 | 1600 | 10 | +/-5% | 0.4 | Y,yn0 | 2400 | 15570 | 0.8 | 4.5 | 4220 | 2355*1150*1850 |
| SZ9-M-2000/10 | 2000 | 10 | +/-5% | 0.4 | Y,yn0 | 2900 | 18700 | 0.7 | 4.5 | 5020 | 2705*1125*2255 |
| SZ9-M-2500/10 | 2500 | 10 | +/-5% | 0.4 | Y,yn0 | 3420 | 21800 | 0.6 | 4.5/5.5 | 6500 | 2665*2020*2450 |
