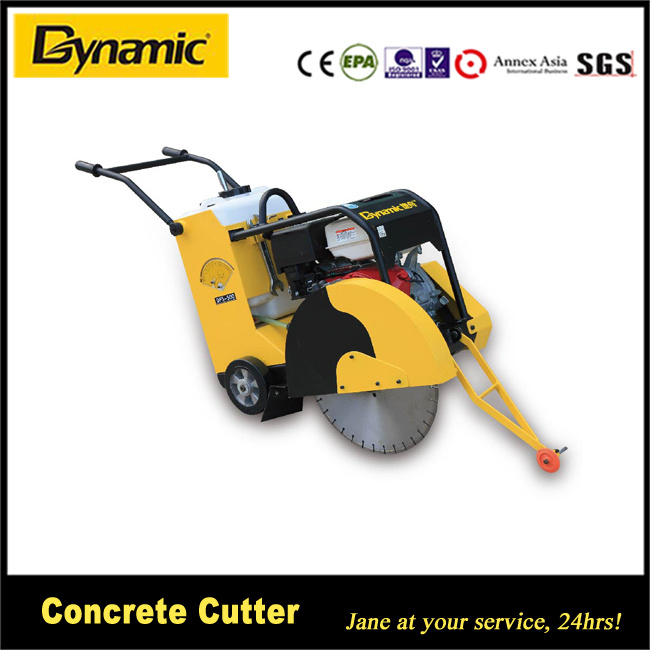

Asphalt Concrete Cutter (DFS-500) with Honda Engine Gx390

Name: Asphalt Concrete Cutter (DFS-500) with Honda Engine Gx390
Brand: china-manufacturer-directory.com
SKU: 723784575
Availability: InStock
Rating: 4.9 (128 reviews)

Supplier:	Shanghai Jiezhou Engineering & Mechanism Co., Ltd.
Price:	US $ 500-1000/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DFS-500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	135kg
Max Cutting Depth:	80mm
Engine:	Honda, Robin, Locin
Certification:	CE
Condition:	New
Type:	Cutter

Product Description

Specification:

1) Ergonomics designed handle makes the operation more comfortable and speedy.

2) Special protective covering protects the engine perfectly and makes the transportation more safely.

3) The unique designed water tank provides adequate water supply and perfect cooling effect, no residual water and makes the maintenance easier.

4) Flexible blade cover makes the assembling and disassembling more easier.

5) Folding guide wheel for accurate cutting.

6) Adjustable cutting depth assures the cutting working more precise and efficient.

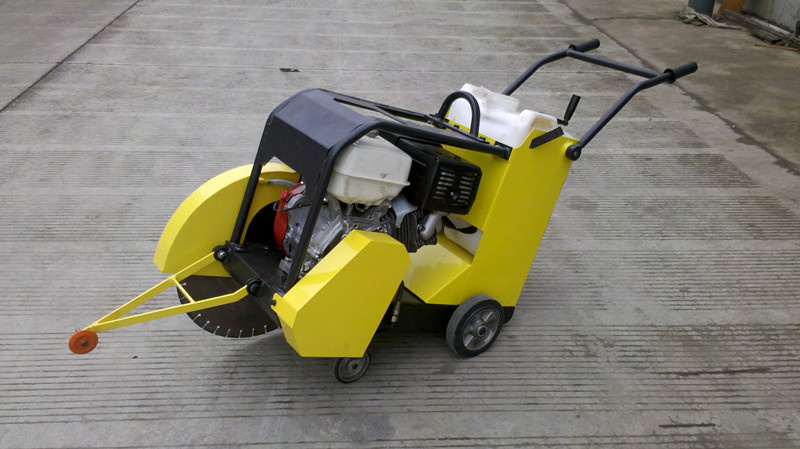

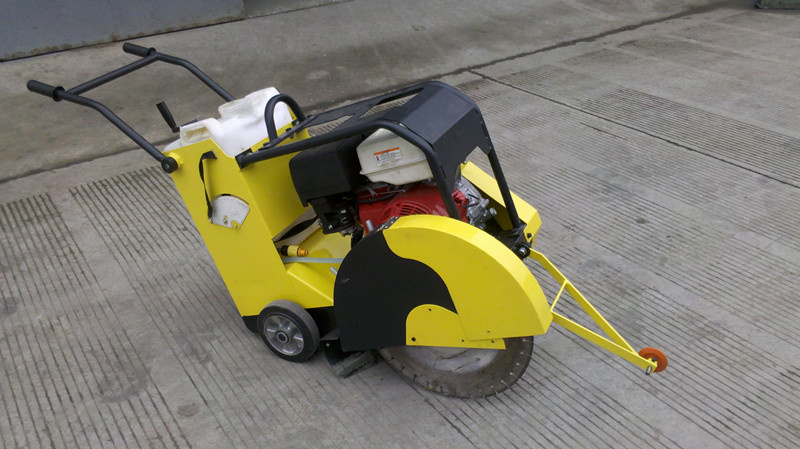

Picture:

Model	DFS-500
Weight kg(lb)	110(242)
Dimension mm(in)	1260(50)×540(21)×1035(41)
Cutting width mm	5-8
Max. cutting depth mm	180
Disk Size mm	300-500
Install aperture mm	26-50
Engine	Air-cooled,4-cycle, Gasoline
Type	Honda GX390	Robin EH41
Max. output kw(hp)	9.6(13)	9.9(13.5)
Max. speed rpm	3600	3600
Fuel tank liter(gal)	6.5	7.0

Shanghai Jiezhou Engineering and Mechanism Co., Ltd., located in Shanghai Comprehensive and Industrial Zone of China, have been specialized in light construction machinery 33 years. Our products covers power trowel, tamping rammer, plate compactor, truss screed, concrete cutter, concrete vibrator and so on. They are very popular both at home and abroad.
