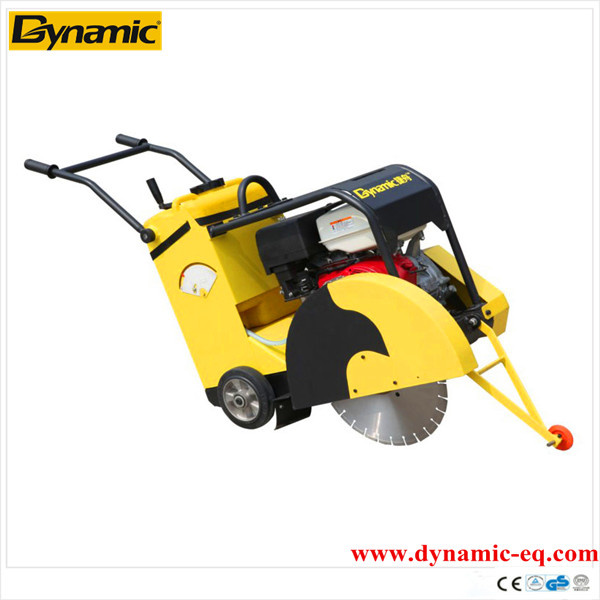

Specification:
1) Ergonomics designed handle makes the operation more comfortable and speedy.
2) Special protective covering protects the engine perfectly and makes the transportation more safely.
3) The unique designed water tank provides adequate water supply and perfect cooling effect, no residual water and makes the maintenance easier.
4) Flexible blade cover makes the assembling and disassembling more easier.
5) Folding guide wheel for accurate cutting.
6) Adjustable cutting depth assures the cutting working more precise and efficient.
|
Model |
DFS-500 |
|
Weight kg(lb) |
110(242) |
|
Dimension mm(in) |
1260(50)×540(21)×1035(41) |
|
Cutting width mm |
5-8 |
|
Max. cutting depth mm |
180 |
|
Disk Size mm |
300-500 |
|
Install aperture mm |
26-50 |
|
Engine |
Air-cooled,4-cycle, Gasoline |
|
Type |
Honda GX390 |
Robin EH41 |
|
Max. output kw(hp) |
9.6(13) |
9.9(13.5) |
|
Max. speed rpm |
3600 |
3600 |
|
Fuel tank liter(gal) |
6.5 |
7.0 |
Shanghai Jiezhou Engineering and Mechanism Co., Ltd., located in Shanghai Comprehensive and Industrial Zone of China, have been specialized in light construction machinery 33 years. Our products covers power trowel, tamping rammer, plate compactor, truss screed, concrete cutter, concrete vibrator and so on. They are very popular both at home and abroad.
