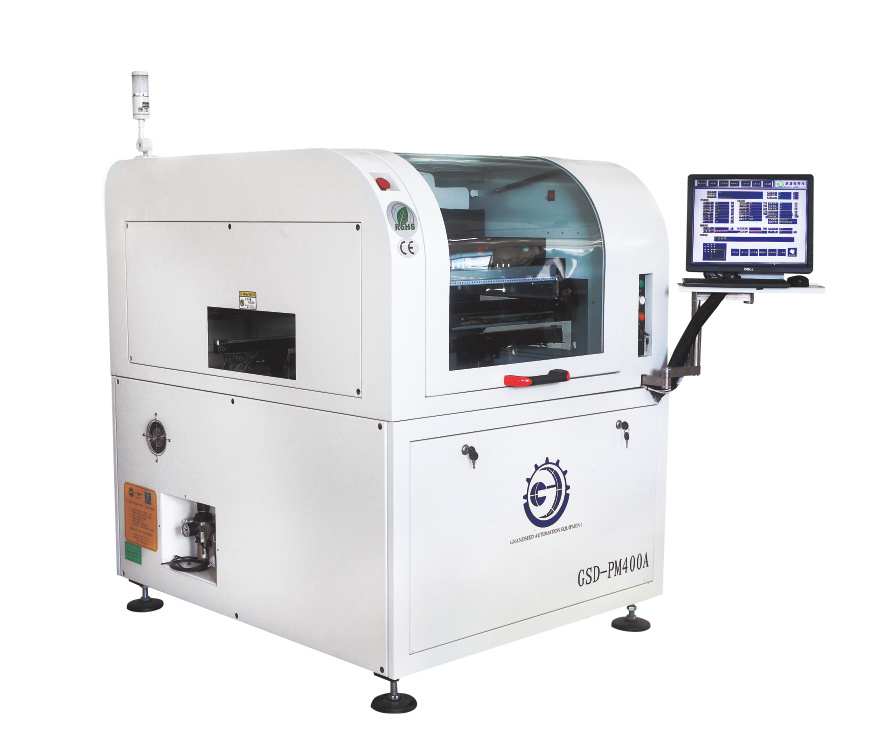

Auto Solder Paste Printing Machine

Name: Auto Solder Paste Printing Machine
Brand: china-manufacturer-directory.com
SKU: 742937135
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 62000-420000/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1.Stream line appearance design;
2. Clean system;
3.Mark marking image recognition system;
4.Unique PCB holder and transport structure;
5.Suspended stable motor scraper;
6.Unique PCB locator hostage and transport mechanism;
7. Printing accuracy;
8.Easy user-friendly chinese/English operation screen;

	Model	GSD-PM400A
Item
Screen Frames	Min Size	420X500mm
	Max Size	737X737mm
	Thickness	25~40mm
PCB Min Size		50X50mm
PCB Max Size		400X300mm
PCB Thickness		0.2~6mm
PCB Warpage		Max.PCB The diagonal 1%
Transport Height		900±40mm
Transport Direction		Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed		Max 1500mm/S Programmable
Board Location PCB	Support System	Magnetic Pin/Up-down table adjusted by hand
	Clamping System	Patented over the top clamping, side clamping, vacuum nozzle
Print head		Two independent motorized print heads
Squeegee Speed		6~300mm/sec
Squeegee Pressure		0~10Kg/cm2
Squeegee Angle		55°Standard
Squeegee Type		Stainless steel(Standard), plastic
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning System		Dry\Wet\Vacuum (Programmable)
Table Adjustment ranges		X:±5mm;Y:±5mm;θ:±2°
Machine Specifications
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<10s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		4.5~6Kg/cm2
Power Input		AC:220±10%,50/60HZ 1Φ 3KW
Control Method		PC Control
Machine Dimensions		1146(L)X1364(W)X1440(H)mm
Machine Weight		Approx:1000Kg
PCB transport over plate height PCB		35mm

Prod Model:	GSD-PM400A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max PCB Size:	400*300mm
Min PCB Size:	50*50mm
Printing Area:	737*737
PCB Thickness:	0.2~6mm
Transport Height:	900±40mm
Repeat Position Accuracy:	±0.009mm
Air Required:	4.5~6kgf/Cm2
Power Input:	AC:220±10%,50/60Hz ,1~3kw
Machine Dimensions:	1146(L)X1364(W)X1440(H)Mm
Machine Weight:	Approx:1000kg
Structure:	Two-revolution Printing Press
Style:	Screen-process Printing Press
Type:	Automatic Screen Printing Machine
Print Interface:	USB3.0
System Supported:	Windowsxp64
Application:	Solder Paste Printing
Color & Page:	PCB Pringting

Grandseed is specialized in researching, developing, manufacturing and marketing lead free wave soldering, relow soldering, SMT peripheral equipment, and other electronic equipment. The company is well known in China depending on its quality products, complete product variety and considerate after-sale service from its powerful technical strength and advanced detecting measures.

The utility model lead free tin furnace is a patent product of the company on which it has the independend intellectual property. The unique anti-oxidation device equipped in the furnace has greatly reduced the cost of electronic manufacturing, and has made big contribution to the improvement of the PCB soldering workmanship in the field.

The company believes in an after-sale policy of "high efficiency and low charge", and always tries to satisfy every demand of all customers. We will continue to improve the company in the aspects of honesty integrity, and team work spirit, so as to gradually satisfy the requirements for an international standard enterprise. With the purpose of rewarding the country, honest operation and practical development, we will try our best to make Grandseed a famous international brand.
