Product Specifications
| Prod Model: |
YT-6800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Material: |
Polyethylene, Polyethylene Plastic Bagglass Paper |
| Embossing Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
| Type: |
Ink Printing |
| Printing Speed: |
50m/Min |
Product Description
Usage:

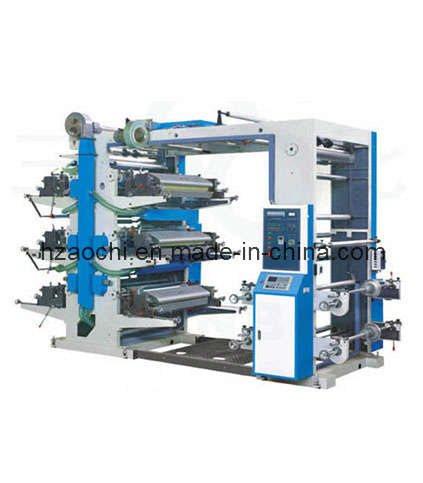

This Automatic Flexo Printing Machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bagglass paper and roll paperetc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
1. Easy operation, flexible starting accurate colour register.
2. The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4. The printing ink is spread by the knurled cylindder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 degrees continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameter:
Model of Machine |
YT-6600 |
YT-6800 |
YT-61000 |
Max. Width of Printing Material |
600mm |
800mm |
1000mm |
Max. Printing With |
560mm |
760mm |
960mm |
Length Range of Printed Product |
191-914mm |
191-914mm |
191-914mm |
Max. Diameter of Roll Material |
φ 450mm |
φ 450mm |
φ 450mm |
Printing Speed |
550m/min |
550m/min |
550m/min |
Thickness of plate(Including Two-sides Glue Paper) |
2.38mm |
2.38mm |
2.38mm |
Total Power |
13kw |
15kw |
18kw |
Weight of Machine |
3500kg |
4200kg |
5000kg |
Overall Dimensions |
3900× 1660× 2950mm |
3900× 1860× 2950mm |
3900× 2060× 2950mm |
Hangzhou Aochi International Co., Ltd. is professional exporter and manufacturer of printing and packaging and plastic machines & materials in China, set by jointed together of more than fifteen manufacturers.
In order to provide all around products and better service to our increasing customers, we adopt latest information technology. Using carefully selected local or overseas raw materials & components, most of our machine already got CE approved. Our engineer team provides design realization service for your every requirement, and employ professional trained staff, so we have quick response to different customer' S enquiry everyday.
If you are looking for relative machines and materials from China, we sincerely hope we can be your best choice! Let' S work together to build a much brilliant future now!
