Product Specifications
| Prod Model: |
WS806 -1000GJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Doctor Blade: |
Single Doctor Blade |
| Anilox Roller: |
Ceramic Anilox Roller |
| Type: |
Laser |
| Embossing Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Speed: |
70-220m/Min |
Product Description

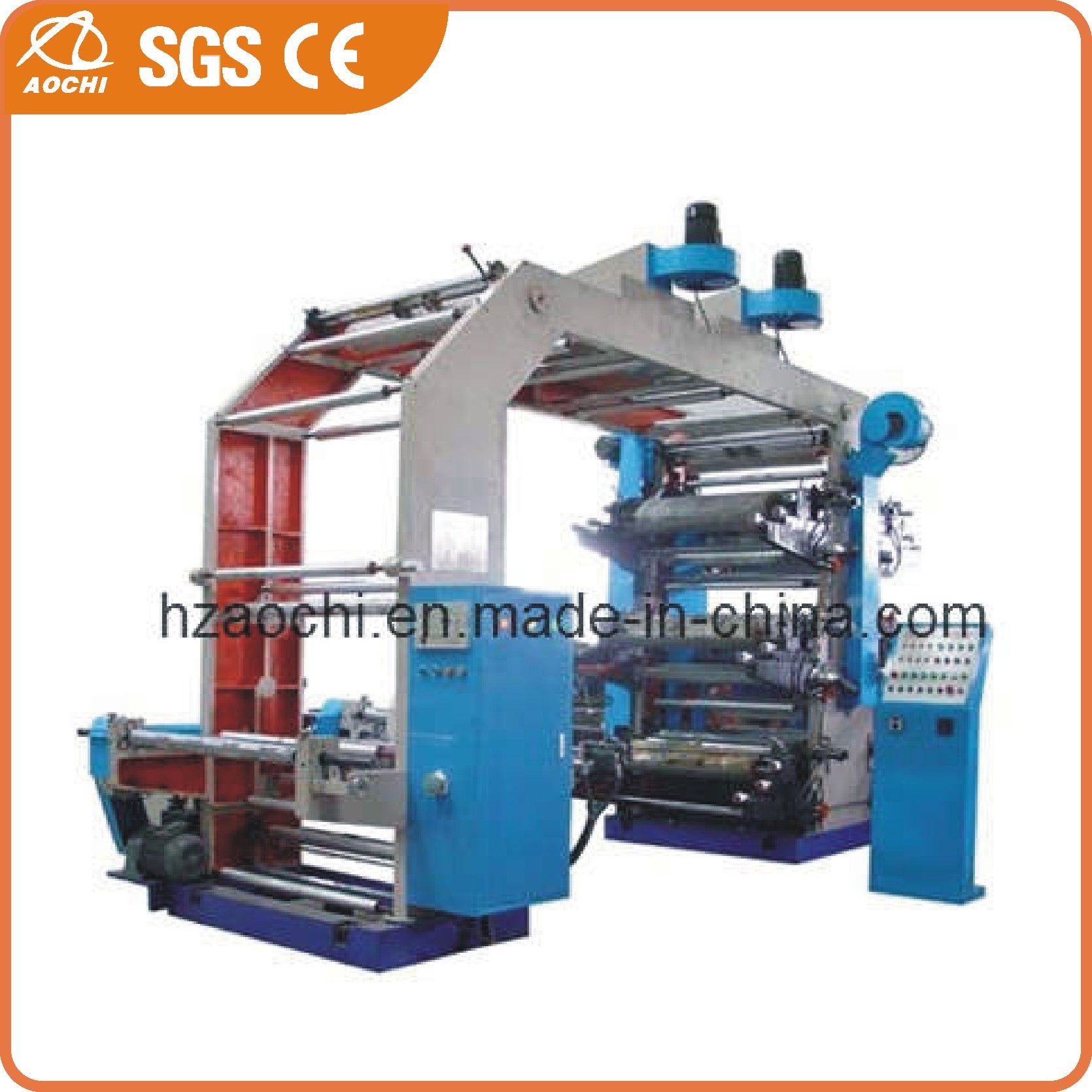

Major configuration of Multi-Color And High Speed Flexo Printing Machine (WS 806 -1000GJ):
1. Low speed and full load startup; Stable running by tension control when increasing and decreasing speed, noise is decreased
2. High dots presentation rate under high speed; Clear and vivid stratification of screen printing; Strong stereo effect and accurate registering.
3. Aluminum roller adopts the Japan semi-sealing small bearing; Flinty oxidation, static and dynamic balancing treatments are conducted; Low resistance and small flop.
4. The special made modulus angular gears adopted; Accurate printing size and full printing specifications (5mm is a spec)
5. With the air exhaust, blowing and heating settings; The heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Chamber doctor blade system with ink container and circulating pump
9. The type of providing the ink is smearing the ink with plastic roller and grain roller
10. The specially-made vertical gear transmission which present the accurate printing size
11. Fix with the blower and the heater including the heater employing the central constant temperate controlling system
12. The grouped and controlled bottom roller processed with Germany particular steel materials processed with special techniques and electrically gilded with 0.1mm hard chromium protective layers
13. Auto tension control for winding and unwinding
14. Auto registration system by means of buttons
15. Unwind with auto deviation correction system (EPC)/ Edge control system with one photo cell
16. EDGE position control
17. Angular gears
18. High resolution printing of photo
19. Reversible printing 6 color press for6+0, 1+5, 2+4, 3+3.
20.1 sets of printing cylinder, sizes: 15 inches.
Main technical Parameter:
Printing color: 6 color (Reversible printing 6 color press for 1+5, 2+4, 3+3. )
Printing width: 1000mm
Web path width: 110mm
Printing length (repeat): 190 ~ 1000mm (7.5"~ 40")
Highest machine speed: 90 meters/per minute
Highest printing speed: 60 meters/per minute
Plate thickness: 1.7mm
Anilox roller: 200LPI 1PCS 300LPI 1PCS 800LPI 4PCS
Register precision: Longitude ± 0.15mm
Transverse: ± 0.15mm
Unwind reel diameter: Φ 600mm
Rewind reel diameter: Φ 600mm
Tension scope: 3 ~ 50kg
Tension precision: 0.3kg
Unwind and rewind web cylinder: Φ 76mm (inner diameter)
Unwind and rewind material holder: Air shaft
Press power: Mechanic control
Inking: Auto cyclic system, one diaphragm pump
Inking distributing: Deceleration motor (reduction ratio 1: 50)
Drying model: Electric heating /Infrared(hot air)
Bearing: : NSK
One direction bearing: ASNU
Drying power: 20kw
Air blower (large): 1.1kw / 2 PCS
Air blower (small): 1.5kw / 2 PCS
Master motor power: 5.5kw (reduction ratio 1: 5)
Machine power: 34kw
Deviation correction system: Auto hydraulic pressure
Power: Voltage 220V, 3 pH, 60 Hz
Voltage: 380V, 3 pH, 50 Hz
Acceptable printing material
LDPE: 28 ~ 100μ M
HDPE: 30 ~ 100μ M
LLDPE: 25 ~ 100μ M
PVC: 25 ~ 70μ M
CPP: 20 ~ 60μ M
PP: 23 ~ 65μ M
NY: 20 ~ 50μ M
PET: 16 ~ 60μ M
OPP: 18 ~ 70μ M
BOPP: 17 ~ 60μ M
OPA: 20 ~ 60μ M
Plating film: 30 ~ 80μ M
Aluminum: 25 ~ 80μ M
Cellophane: 30 ~ 150G/M2
Paper: 30 ~ 150G/M2
Wrapping paper: 30 ~ 150G/M2
