Product Specifications
| Prod Model: |
TPB-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Application: |
Machinery & Hardware |
| Type: |
Beading Machine |
| Type For Cutting Machine: |
Automatic |
| Type For Fold-bending Machine: |
Automatic |
Product Description

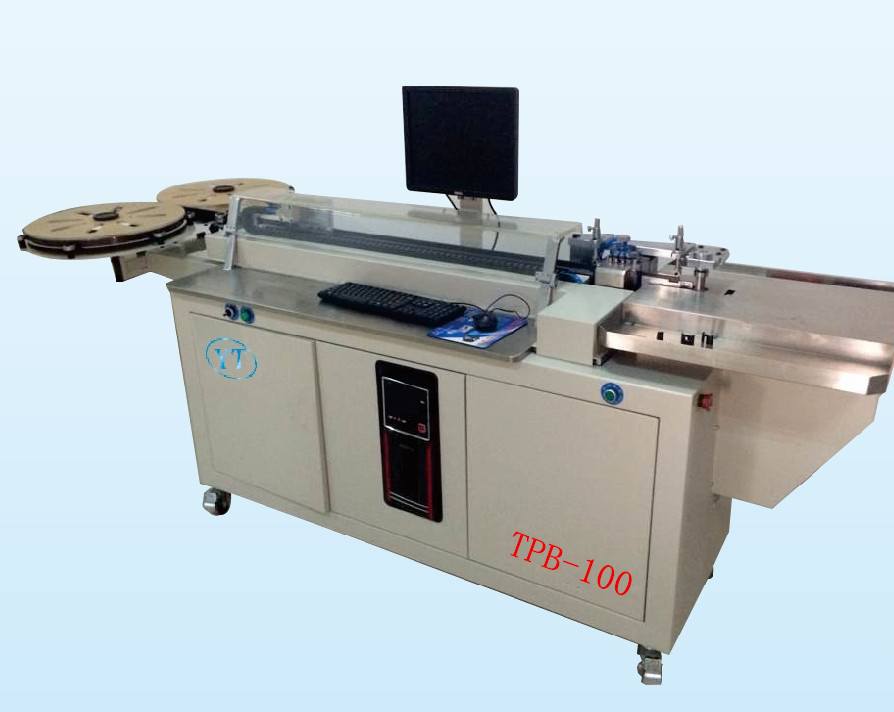

Type: TPB-100
Product Features:
Individual bending, simple operation;
Adjustable bending and feed speed for various bending requirements of different graphs;
Auto identification of straight or circular cutter to guarantee correct cutting delivery action;
Special circular cutter rest installed for different rotary direction;
Different types of bending molds can be replaced in one minute;
Original drive and control units imported from abroad to guarantee precision and long service life.
|
Specification |
|
The precision after bending |
±0.05MM |
|
The planeness |
0.25MM |
|
The min head length of the bending |
1.8MM |
|
The min end length of the bending |
1.8MM |
|
The max bending angle |
90 degree |
|
The min radius for 90 degree angle |
0.5mm |
|
Material applied |
0.45MM/0.53MM/0.71MM/1.05MM |
|
The height of the blade |
8-30MM |
|
Power supply |
220/380V 50/60HZ |
|
Air pression |
0.6MPA |
|
Size |
2600*850*1500MM(L*W*H) |
|
Weight |
400KG |
Yitai Packing-Materi Accessories(Kunshan)Co., Ltd. was established in 2003. We belong to Grandcorp precision mould group, but professional of die-making materials and package machines.
Our main business scope is as below: Flat & rotary die board, cutting rules, creasing rules, creasing matrix, doctor blade, manual die making machine, auto-bender machine, sample making machine, nick grinder, trash-cleaning machine and so on. Specialty and first class service make us attract the customers from domestic and overseas.
Our products are well sold to South Africa\ Australia\ Brazil India We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
