Automatic Big Wire Dia. Transformer Coil Winding Machine (SS85X Series)

Name: Automatic Big Wire Dia. Transformer Coil Winding Machine (SS85X Series)
Brand: china-manufacturer-directory.com
SKU: 608480854
Availability: InStock
Rating: 5 (97 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,EXW,others
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

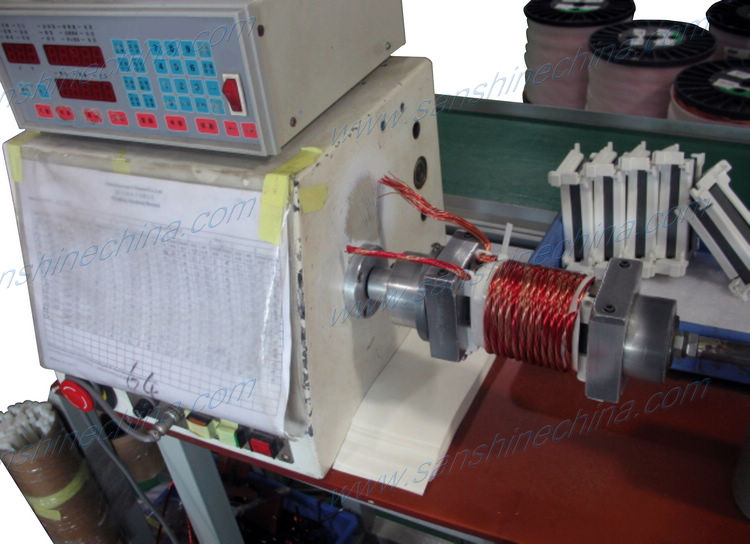

(SS85X) series automatic high torsion thick wire coil winding machine

Description of SS85X series automatic high torsion thick wire coil winding machine :

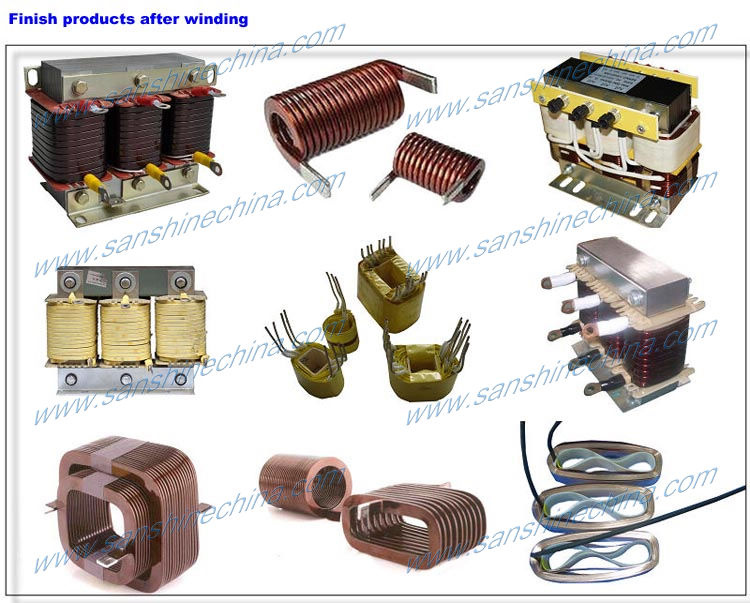

SS-85X series High-Torsion Series digital coil winding machine is digital Programmable coil winding machine with 1/2HP DC motor. The Maximum wire size can reach 3.0mm. It's the best choice for Secondary winding, reactive coil, electric power transformer and for big coil of thick wire .

This series machine can be customized by requested.

Feature of SS85X series automatic high torsion thick wire coil winding machine :

1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, , high spreading Speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Multiple spindles winding synchronal for highest efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.

Model	SS-851	SS-852	SS-851A
Spindles	1	2	1
Wire size	0.5~3.0mm	0.5~1.6mm	0.5~2.0mm
Spread pitch	0~9.999mm		0.001~9.999mm
Spread width	300mm	100mm	Max.700mm
Coil diameter	200mm	110mm	Max.200mm
Main motor	500W DC Motor
Spread motor	4-Phase Stepper Motor
Max. speed	1600 / 400rpm	3000 rpm	Max.3000 rpm
Memory	999 Steps
Power source	AC220V/110V + 10%, 50/60 Hz
Dimension(cm)	70x52x60	70x52x60	120x52x70
Net weight	42kgs	44kgs	55kgs

Prod Model:	SS851 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Semiautomatic

SanShine has been created in 2000. SanShine is the leading machine, electronic test instrument and tools manufacturer. We offer competitive price and good quality & service for our customers.

Our products service electronics/electric manufacturers(transformer, inductor, PCB, motor, relay, link, cable, socket, capacitor, resistor, toroid coil manufacturers).

1. Transformer Auto. Analyzer, LCZ / LCR analyzer, DCR analyzer, LCR meter, surger tester, Hi-pot tester(high voltage tester), insulation tester, digital oscilloscope, cable / linker Auto. Tester, AC/DC power supplier, UPS supplier, frequency conversion power supplier, optical fiber tester, bobbin coil turns tester, toroid coil turns tester, multimeter.

2. Amorphouse ribbon produce machine, Transformer Auto. Winding machine, toroid coil Auto. Winding machine, toroid coil hook type winding machine, air coil Auto, winding machine, solder tinning pot, Auto. Solder tinning machine, maganetic wire stripping machine, PVC insulation wire hot stripper, glue dispenser machine, wire cutting machine, textile belt cutting machine.

3. Winding nozzle of transformer / inductor / relay / motor Auto. Winding machine, toroid coil winding hook, wire tensioner, ceramics parts for winding machine, testing clip, testing wire, testing jig, testing prob, branding iron, product box / dish, liquid dispenser nozzle and tank.

SanShine makes your T&M quickly and easy!
