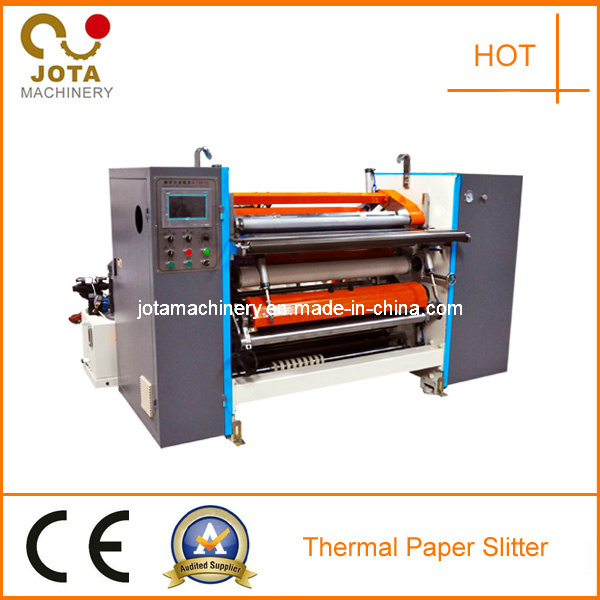

Automatic Cash Register Paper Slitter Machine (JT-SLT-900A)
Product Specifications
| Prod Model: |
JT-SLT-900A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PLC: |
Siemens |
| Synchronic Belt: |
Adopted |
| Speed: |
200m/Min |
| Cutting Type: |
Disc Blades |
| CNC Processing: |
Provide High Precision |
| Output: |
1800 PCS Paper Rolls Per Hour |
| Frequency Inverter: |
Yaskawa From Japan |
| Main Motor: |
Siemens |
| Magnetic Brake: |
Re From Italy |
| Ultrasonic Analog EPC: |
Tech Mach From USA |
| Work Method: |
Round Knife Cutting |
| Type: |
Roll Slitter |
Product Description
Automatic Cash Register Paper Slitter Machine
Application Material:all kinds of thermal paper,including fax paper,cash register paper, ATM paper,ECG
paper,medical record paper,POS paper,self-adhesive trade marks, non-woven cloth,films etc.

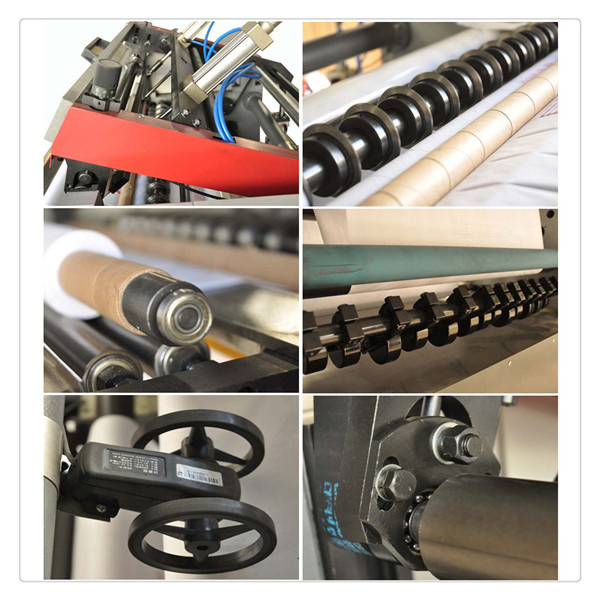

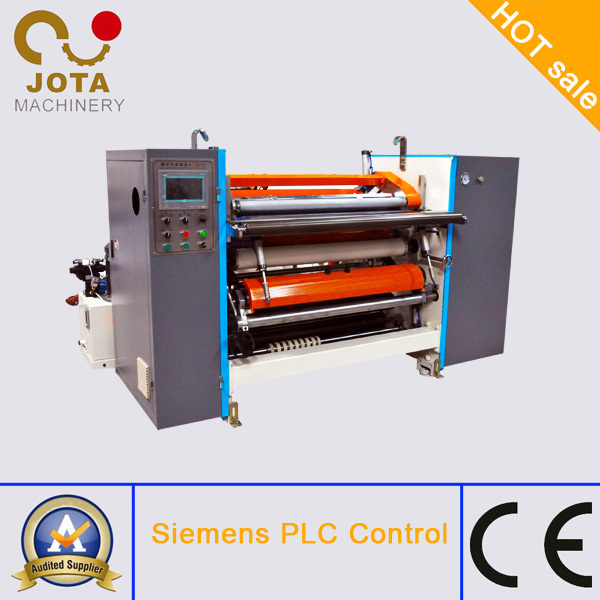

- It adopts Siemens PLC control system and touch screen,all the parameters are displayed on the
monitor, and the machine will automatically work.
- It adopts Siemens inverter motor and Yaskawa frequency inverter.
- It adopts hydraulic lift-up loading system for heavy materials loading.
- It adopts 20kg/m2 RE brand magnetic braking device from Italy.
- It adopts balance roller to keep the surface of paper smoothly.
- It adopts Tech Mach ultrasonic analog EPC from USA to keep the accurate position.
- It adopts Tech Mach floating roller from USA to keep constant control.
- It adopts banana roller to avoid overlap problem.
| Technical Parameters | JT-SLT-900A |
| Max. Unwinding Width | 900mm |
| Max. Unwinding Diameter | 800mm |
| Max. Rewinding Diameter | 200mm |
| Min. Slit Width | 30mm |
| Max. Machine Speed | 200m/min |
| Unwinding Shaft | 3" Air Expanding Shaft |
| Rewinding Shaft | 0.5", 1"are available(or as request) |
| Voltage | Three-phase,Four-wire, 380V,50HZ |
| Main Power | 2.2kw |
| Weight | 1300KGS |
| Overall Dimensions(LxWxH) | 2000x1700x1500mm |
Focusing on the Environment and Labor Safety, Jota Machinery Industrial (Rui'an) Co. Ltd is specialized in the Paper Slitter Rewinder, Paper Sheeter, Coating and Laminaiton as well as the complete range of other converting equipment with Innovance and high Technology.
