Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feeding: |
Automatic and Continuous Feeding |
| Adhesive: |
Solute Type |
| Basic Box Gluing Methods: |
One Side-Gluing, Both Sides Side-Gluing, Bottom Gl |
| Power: |
3p380V50Hz |
| Type: |
Shun Stick Folder Gluer |
| Automatic Grade: |
Automatic Folder Gluer |
Product Description

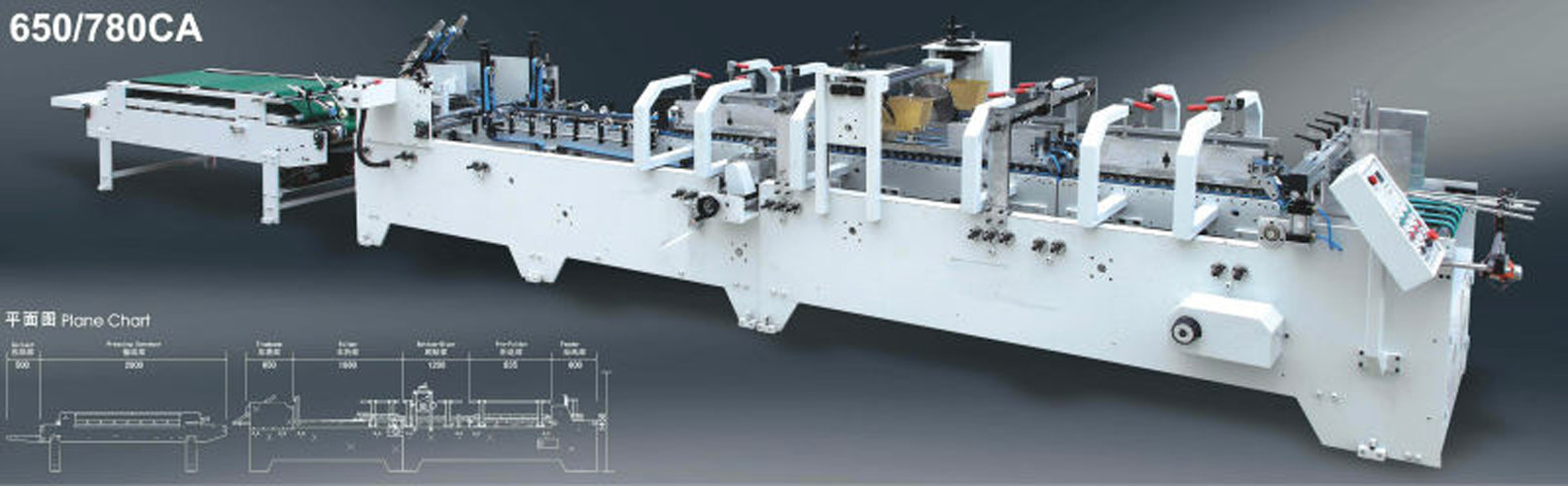

Automatic corrugated carton box folder gluer paper box folding gluing bottom lock folder gluer/box folding machine
Series ZX-650/780CA are equipments with 4 folds and bottom-lock (Apply to carton paper) are equipments with 4 folds and bottom-lock (Apply to carton paper)
Introduction:
The Machine consists of feeding, paper correction, pre-folding, bottom locking, folding, full pressing, press and so on.
Feeding
1. 5 independent feeding belts ensure the stability of paper feeding and easy calibration.
2.Continuously Variable Speeder to ensure the blank in even distance, and stable transmission
3.Pneumatic cutting lifting makes it easy to adjust the feeding belt.
Pre-folding
Double-board structure (with a set of pre-folding knife)
Bottom-gluing:
1 3-board structure
2 Equipped with glue-applying device
Folding: Double-board structure
Full pressing
1.2-board structure
2.Two modes for pressing belt speeding:
1/Auto: set distance between boxes, pressing belt speed is the same as the machine, belt removes while opto-electronic detect it.
2/Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.
3. With counting device to count the finished boxes to match with boxes regulating, easy to count and pack
Back machine
3 Equipped with feeding paper inspection device.
4 Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
Brief introduction
5 Feeding: Automatic and continuous feeding
6 Adhesive: Solute type
7 Basic box gluing methods: one side-gluing, both sides side-gluing, bottom gluing
8 Power: 3P380V50HZ
The parameter of 4 folds box with bottom locked and the folded box:
| Model | ZX-650CA | ZX-780CA |
| A | MAX | 650 | 780 |
| MIN | 110 | 110 |
| B | MAX | 700 | 700 |
| C | MIN | 55 | 55 |
| D | MAX | 700 | 700 |
| MIN | 70 | 70 |
| E | MIN | 10 | 10 |
| F | MIN | 25 | 25 |
