Product Specifications
| Prod Model: |
ZXJ-1650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Paper Web: |
1600mm |
| Corrugation: |
UV/B\E |
| Speed: |
50m/Min |
| Adhesives: |
Corn or Potato Starch |
| Heating Method: |
Steam Heating |
| Power Supply: |
3 Phase Four-Wire |
| Paper Diameter: |
1300mm |
| Power: |
4.5kw |
| Diameter: |
3300×2000×1100mm |
| Weight: |
2300kg |
| Type: |
Cultural Paper |
| Sheet Former Type: |
Fourdrinier Wire |
Product Description

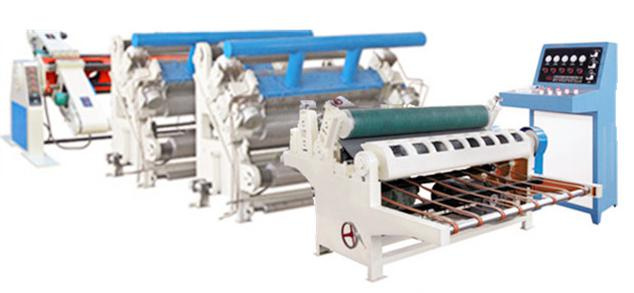

ZXJ-1650the vacuum outside adsorption single corrugated paper box making machinery
1. The vacuum outside adsorption corrugated machine
corrugated roll diameter:266mm
corrugated roll materials:45# Quality steel,after high temperature heat treatment
Corrugated roller thickness: 50mm
Pressure roller material: 45# high temperature heat treatment
Pressure roller thickness: 40mm
Feed paper way: vacuum adsorption
Upon corrugated roller, pressure roller, upper roller with pneumatic adjustment.
Corrugated roller, pressure roller bearings LYC bearings, adopt to resistant high temperature grease lubrication.
Gluing parts adopt to automatic cycle for glue supply, gluing roll surface after anilox engraving and chrome-plated.
Corrugated roller for precision grinder grinding teeth
| Maximum paper web | 1600mm |
| Corrugation | UV/B,E |
| Speed | 50m/min |
| Adhesives | Corn or potato starch |
| Heating method | Steam heating |
| Power supply | 3 Phase four-wire |
Parameters
2. Mechanical shaftless paper holder
Mechanical shaftless paper holder lifting roll, clamping, release, move, center are electrically controlled,fast feed paper,flexible rotation,tension control with manual brake,Top with a tapered top
Parameters
| Maximum paper web | 1600mm |
| Paper diameter | Φ1300mm |
| Power | 4.5KW |
| Diameter | 3300×2000×1100mm |
| Weight | 2300KG |
3. Computer rotary Slitter
Cutting area: 300-1800mm
Cutting accuracy: ±1mm(Steady speed)
The machine adopts PLC programmable control, frequency control, touch screen adjustment cardboard desired length, belt drive with high precision, low noise and so on.
Parameters
| Maximum paper web | 1600mm |
| Cutting length | 300-1800mm |
| Power | 8KW |
| Diameter | 2000×1800×1100mm |
| Weight | 2500KG |
