Zhengzhou Nanbei Instrument Equipment Co., Ltd. >> Automatic Digital Display Surface Tension Meter for Sale

Automatic Digital Display Surface Tension Meter for Sale

Automatic Digital Display Surface Tension Meter for Sale
Supplier: Zhengzhou Nanbei Instrument Equipment Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: BZY-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Surface Tension Meter
Measuring Range (Mn/M): 0-400mn/M
The Mode Of Lifting: Automatic
Lifting Distance: 30-60mm
Power Supply: AC220V+-10V
Dimensions (Mm): 400*200*400
Weight: 15kg
Warranty: 3 Years
Condition: New
Advantage: Factory Directly Sale

Product Description

ZHENGZHOU NANBEI INSTRUMENT EQUIPMENT CO., LTD
Automatic digital display Surface tension meter for sale

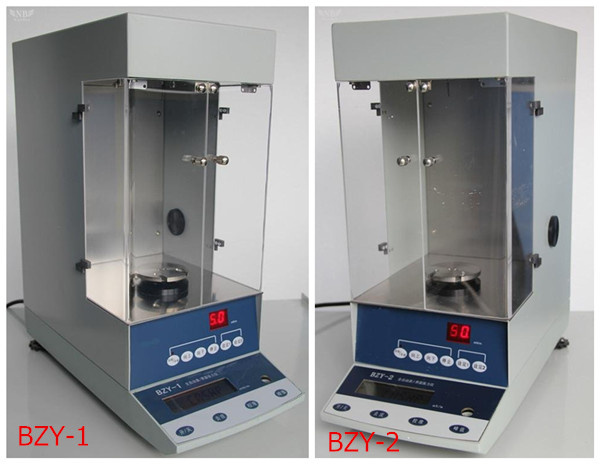

BZY-1 Automatic surface tension meter
Surface Tension Meter

Description of BZY-1; BZY-2
As we all know, the surface tension is to determine the liquid nature principles of solubility, wetting, bubbling, coating and permeability. People often analysis surface tension of a given liquid, and then study the physical representation compared to other liquids or solids. This study is the basic means of quality control in the process of industrialization.

BZY series of Automatic surface tension meter. It provides a perfect solution for customers on the surface tension. It is the perfect "linear" fully able to detect changes due to existence of solution time changes or surfactant. Moreover, the scope of its application will be more widely used due to users'reasonable and smart use.

features of BZY-1; BZY-2
Instrument features: Compared with other surface tension meter, BZY series of Automatic surface tension meter including but not limited to the following advantages:
1.Automatic measurement, reduce human error to a minimum;
2.Automatic reading of surface tension balance value;
3.One key to reset(any number between0-400mN),absolutely correct;
4.One key to calibrate, with standard weights attached, rapidly and accurately;
5.The platinum plate method, fully comply with the requirement of basic principle of Wilhelmy platinum plate, so as to provide possibility of measuring under the following environment:
A:Changes of surface tension due to the presence of surfactants value
B:The measurement of high viscosity liquids (automatically read balance value)
C:Interfacial tension is not dissolved between two kinds of liquid, such as oil and water.
D:Sensor has sensitive response, high accuracy, in order to provide possibility of excellent repeatability and comparability of data .
E:Simple operation, without the need for any external computer control
F:small machine error, more effective control of all kinds of errors in testing process
G:sample temperature cup , sample temperature detection device and the external thermostatic bath can be chosen

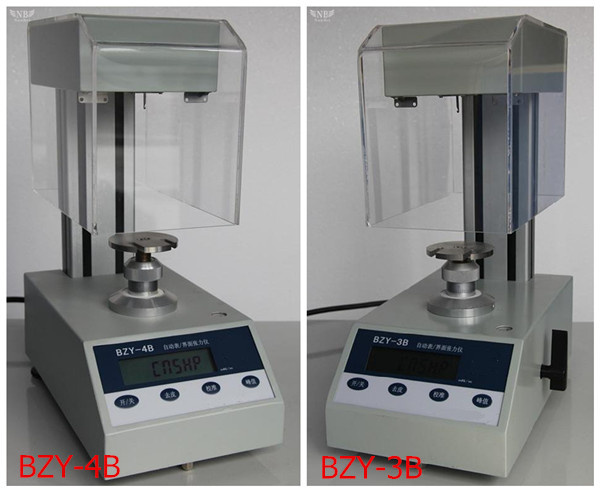

Semi-automatic Surface tension meter: BZY-3B; BZY-4B (Patented product)
Description of BZY-3B; BZY-4B
These two Semi-automatic Surface tension meter technically achieve the basic function of automatic surface tension meter.

Features of BZY-3B; BZY-4B
Advantages:

1.Sensor has sensitive response, high precision, liquid crystal display;
2.Automatically read the value and the maximum value of the surface tension balance, as long as the selection of platinum or platinum gold plate, plate, ring can be measured
3.Manual lifting fast and fine tuning of block two, simple operation, reliable;
4.A clear, absolutely correct;
5.A correction, with standard weights attached to the rapid, accurate;
6.Error of the instrument itself is small, more effective control of all kinds of errors in the process of measurement;
7.The use of platinum or platinum ring plate method, connected to a computer, real-time curve matching software:
A:Can clearly display the resulting from the presence of surfactants change with time tension to rise or decline curve.
B:Can display two kinds of liquid interfaces of different density from low to the maximum tension value curve and time, such as the oil / water interfacial tension value.
8.Optional sample constant temperature cup, external thermostat can control the temperature of the fluid to be measured.
9.
Low price

Main technical parameters
ModelBZY-1BZY-2BZY-3BBZY-4B
MeasurementPlatinum plate method
Measuring Range
 (mN/m)
0-400mN/m0-200mN/m0-400mN/m0-200mN/m
Minimum Resolution
(mN/m)
0.1mN/m0.01mN/m0.1mN/m0.01mN/m
Standard Error(mN/m)
(second distilled water at 20ºC)
±0.1mN/m±0.02mN/m±0.1mN/m±0.03mN/m
Repeatability (mN/m)±0.1mN/m±0.02mN/m±0.1mN/m±0.03mN/m
DisplayLCD
The mode of Liftingautomaticmanual
Lifting distance(mm)30 and 60fast: 16; 35 scale sleeve:
fine fine tuning:0.02/ lattice
Reading timeUsually 3-5seconds
Power SupplyAC220V±10V
Dimensions (mm)400*200*400300*190*400
Net weight (kg)157
Application
No.Application of industryApplication
1petrochemical industryTesting oil-water interface;
controlling the quality of oil
2Printing industryDeveloping the formula of printing ink,
 Screen cleaning fluid developing and
 wettability analysis
3Electric IndustryTransformer oil, insulating oil
interfacial tension analysis
4Cleaning agent IndustryAnalysis the absorption rate and nature
 of Surfactant
5Promoter industryResearching accumulation and diffusion
 ability
6Farm chemical industryAdditive developing, formula and
wettablity analysis
7Medicine IndustryInterfacial tension
analysis ,wettability analysis
