Product Specifications
| Prod Model: |
SYQ51 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Method: |
Rebound Method |
| Rebound Kinetic Energy: |
2.207j |
| Rebound Springs Rigidity: |
785.0 +/- 40.0(N/M) |
| Rebound Bar Impact Length: |
75.0 +/- 0.3mm |
| Average Rebound Value On Calibration Anv: |
80+/-2 |
| Size: |
205mm*173mm*86mm |
Product Description

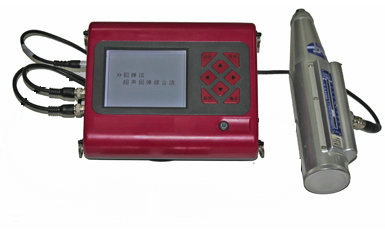

PurposeSYQ51 automatic digital rebound instrument is used to test the compressive strength of concrete by rebound method.
SpecificationTechnical specification for inspection of concrete compressive strength by rebound method (JGJ/T23-2011)
Performance1. Simple operation. Software flow is designed fit for user operation habit, so user can operate it simply.
2. Get the compressive strength value of concrete after test immediately.
3. Can save test date. This function is convenient for laborer data management.
4. Real USB transmission. Data can be transmitted to computer for future process and analysis.
5. Powerful data process and analysis software in windows. Test data can be export to word or excel for future process and analysis.
Technical Data1. Rebound kinetic energy: 2.207J
2. Rebound springs Rigidity: 785.0 +/- 40.0(N/m)
3. Rebound bar impact length: 75.0 +/- 0.3mm
4. Rebound value permission error: =< +/-1
5. Average rebound value on Calibration anvil: 80+/-2
6. Temperature: -4°C~+40°C,
7. LCD screen: 160*128
8. Power: 6 dry cells,work more than10 times
9. Size: 205mm*173mm*86mm
10. Weight: 850g
SAMYON commit us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on.
Our service and equipment include:
1. Geophysical exploration Consultation and relative instruments such as: IP& Resistivity systems, Fluxgate Magnetometer, Optical pump Magnetometer, Proton Magnetometer, TEM, EM system, Seismograph, Logging system, etc.
2. Construction lab and NDT instruments: Ultrasonic Cross-Hole Pile Tester, Integrity Pile tester, Rebar Locator, Concrete Chloride Migration Tester( RCM), ect.
3. We are also distributor of Petroleum equipment and accessories, to supply our clients inquiry.
With our engineer and professional technology team, we hope we can cooperate with you in future. Relative consultation service, mainly refers to Building, Bridge, Highway and lab. Relative consultation service, mainly refers to Building, Bridge, Highway and lab.
