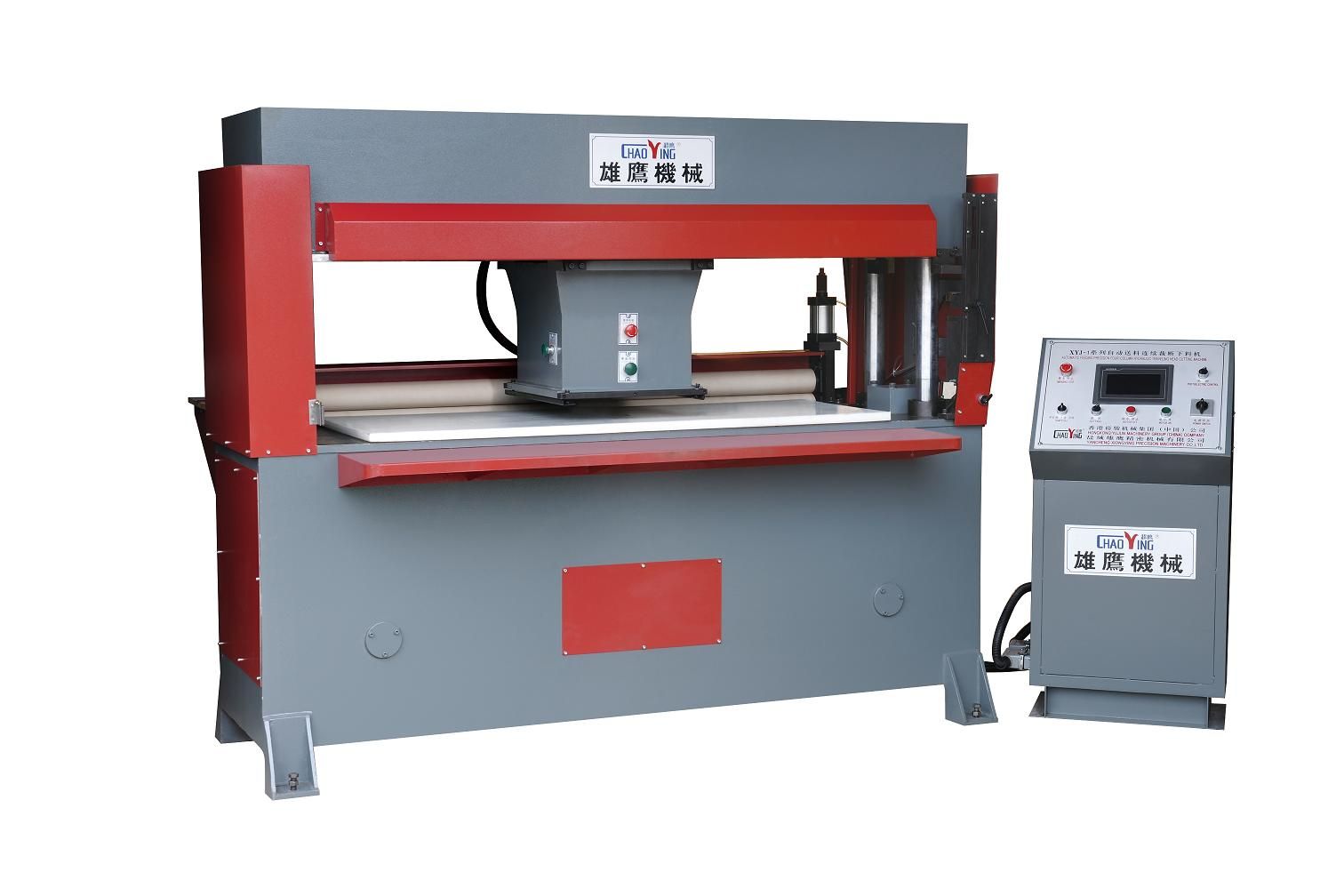

Automatic Feeding Precision Four-Column Hydraulic Traveling Head Cutting Machine (XYJ-3/35)
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
XYJ-3/35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
USE AND CHARACTER:
The machine is suitable for the ball, sand paper, shoes, toys, crafts with molding cutter cutting wide wide, volumes of the leather, rubber and plastic materials, such as composite materials, especially for cutting materials have the rule, not the parts of the knife mold batch continuous cutting operations.
1. The mechanism of double oil cylinder, gantry type guiding type guiding and precise four-column automatic balancing connection rod can guarantee the same cutting depth of each cutting position.
2. PLC full automatic computer control, the punch move transversely speed, pressure roller speed can be adjusted freely feeding
3. The punch below can be fixed molding tool, easy installation, and flexible operation
4. When the cutting board is pressed downwards to contact the cutter, it carries out automatic and slow cutting to make no size error between the uppermost layer and lowermost layer of the cut materials.
5. The special setting mechanism makes the travel adjustment simple and accurate in conjunction with cutting force and cutting depth.
6. The central oil supply automatic lubricating system guarantees machine precision and prolong service life of machine.
7. The overall machine is Compact structure, the operation effort, simple and convenient, cutting efficiency is high
8. When cutting work with infrared security protection, safe and reliable operation.
Technical information:
|
Maximum momentum |
350kN |
|
Stroke adjustment |
0-120mm |
|
Range between the working tables |
30-150mm |
|
Transverse movement speed of cutting head |
50-250 mm/s |
|
Feeding speed |
20-90 mm/s |
|
Effective size of punch |
450× 450mm |
|
Effective size of lower worktable |
1600× 600mm |
|
Motor power |
3 kW |
|
Overall dimension |
2300× 1300× 1900mm |
|
Total weight |
2500kg |
Yancheng Xiongying Precision Machinery Co., Ltd. is a scale enterprise specialized in producing series precision machinery and general machinery products such as hydraulic cutting machines, die cutting machines, cloth cutting machines, embossing machines and etc. With powerful technical strength, complete production facilities, beautiful environment and convenient traffic conditions, the company is located in Dagang Industrial Park, Yancheng City, Jiangsu Province --- the "Hometown of Chinese Shoe Machinery" known as a national intensive area of spark plan technology.
The company has developed comprehensive technical cooperation with internationally famous companies from Hong Kong, Italy and etc. By insisting on developing with scientific innovation and continuously introducing advanced production technology and modern management mode from home and abroad, the company has made unceasing efforts to establish and strengthen management systems for product research and development, flow work, inspection and installation, quality control, and sale and maintenance, accelerating independent research and development of hi-tech products.
The main products with the brand of "Chaoying" include 10-20T hydraulic swing arm cutting machine, 22/27T automatic hydraulic swing arm cutting machine, 25T hydraulic plane cutting machine, 25/30T hydraulic traveling head cutting machine, 25-60T automatic feeding hydraulic traveling head cutting machine, 25-250T four-column hydraulic plane cutting machine, 30-300T precision four-column hydraulic plane cutting machine, 30-150T automatic parallel-moving precision four-column hydraulic plane cutting machine, 30-300T single & double side automatic feeding precision four-column hydraulic plane cutting machine, 150-300T Top-down pressure(Bottom-up pressure) four-column hydraulic plane cutting machine, 30-60T precision four-column half/full-cut hydraulic die cutting machine, 30-60T automatic feeding cloth material cutting machine, 130T leather embossing machine and etc., which are widely used in such industries as shoes, caps, clothing, toys, jigsaw puzzles, balls, sand paper, plastic packing, wood industry, sports articles, packaging, printing, carpets (floors), home textile, medical goods, PU, air conditioner seals, automobile inner decorations, adhesives and etc.
The products are sold well in the country and exported far to USA, UK, Japan, Canada, Italy, Argentina, Vietnam, India, Saudi Arabia, Sri Lanka, South Africa, Malaysia, South Korea, Hong Kong, Taiwan and other countries and areas. The series products of "Chaoying" brand have been successively appraised as "Creditable Quality Product in Jiangsu Province" and "Famous Product in Yancheng", and the company has been successively honored such titles as "Chairman Unit of the Council of China Light Industry Machinery Association", "Member Unit of China Leather Industry Association", "Member Unit of Standing Committee of Professional Commission of Leather and Footwear Machinery of China Leather Industry Association", "Jiangsu Province Private Science and Technology Enterprise", "Yancheng High-tech Enterprise", "Member Enterprise of Yancheng Chamber of Commerce of Shoe Machinery" and "Contract Honoring and Credit Keeping Enterprise" etc. In addition, the company has been granted the right of independently managing import and export.
Military strategies are used to achieve grand prospect, and Xiongying will assist you to build a successful business. By adhering to the development guideline of "innovative science and technology, quality first; Sincere management and excellent service", we will provide customers with all-round and high quality service with the strict and down-to-earth working style, enterprising spirit of continuous perseverance, honest and sincere management conception, as well as the strong support of advanced technology and soaring development.
Sincerely welcome merchants from home and abroad to visit and instruct us!
