Automatic Filter

Name: Automatic Filter
Brand: china-manufacturer-directory.com
SKU: 700779292
Availability: InStock
Rating: 4.6 (41 reviews)

Supplier:	Henan Jincheng Filter Equipment Co., Ltd.
Price:	US $ 20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XMZ250/1250-30U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Filtering Area:	250m2
Filter Board Specifications:	1250*1250mm
Thickness Of Press Cake:	30mm
Number Of Filter Plate:	93pieces
Cubage Of Filter Chamer:	3800L
Filtering Pressure:	05-1.6MPa
Rating Pressure Of Oil Cyliner:	20MPa
Oil Cylinder Maximun Trip:	700mm
Filter Plate Thickness:	75mm
Total Weight:	10500kg

Product Description

Trailer Mounted Filter Press
Industrial Filter Press Wastewater Treatment Plant

Why you choose filter press from Jincheng

Advantages:

1. Short working cycle and high efficiency: high pressure squeezing, can greatly reduce the water content in cake in a short time,

2. Low operation cost: wholly Automatic program-controlled. This membrane filter press can be working unattended, and saving the operation cost.

3. Simple operation: Adopt upper washing device, with few actions and synchronous with auto plate shifting machine. The washing cycles can be set according to requirements (can be regulated on site)

4. Low power consumption: the diaphragm squeezing function, in a very short time to complete this process, save the power consumption.

5. Widely application: corrosion resistance is strong; basic applies to all solid-liquid separation projects

6. High pressure squeezing: the TPE elastomer makes the filter plate with good quality and can achieve maximum pressure filter 25 MPA, so that the moisture content is reduced greatly, save drying cost and improve the yield.

7 Automatic drip trays: drip tray also can be added according to customer's needs and auto open & close can be controlled by PLC system

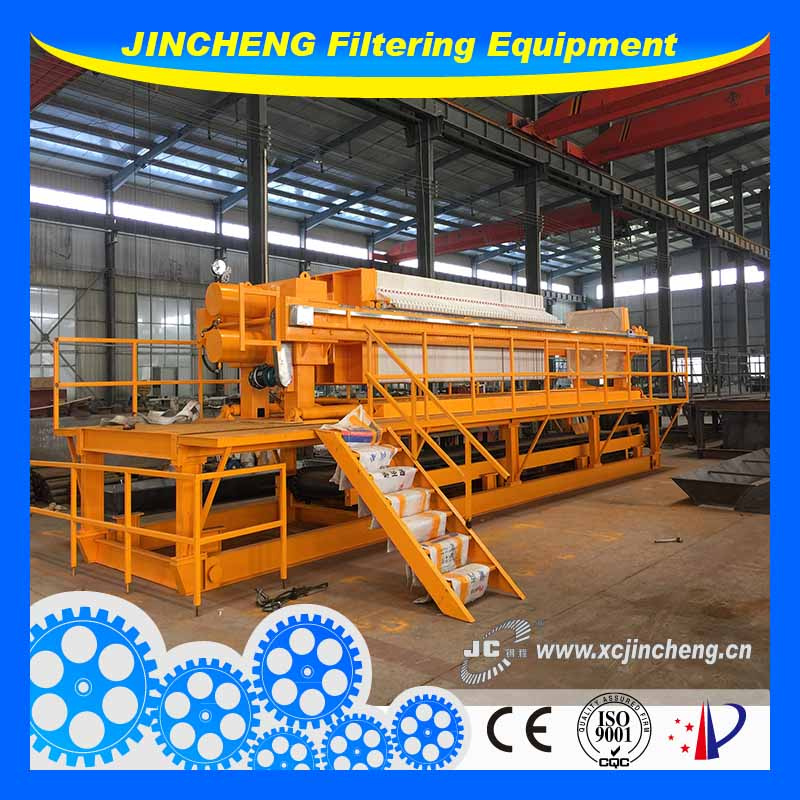

Auto Filter Press

We also can make the smaller full-auto filter press.

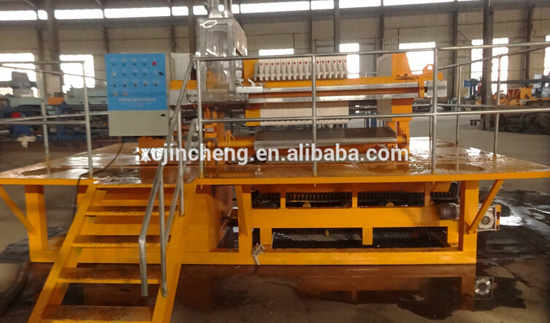

See the 700 size with 18 plates, filtering plant.It is also with auto compression, auto pull-plate system, auto bomb door, auto washing cloth, belt conveyor,working plant. Need only one worker to do inspection work.

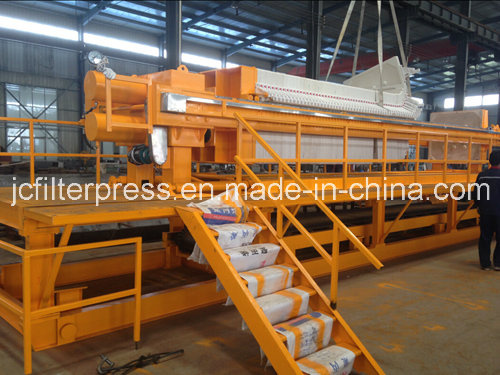

This is a type 1250 size with 200 m2 filtering area machine, made for an USA customer.

It is with auto compression, auto pull-plate system, auto bomb door, auto washing cloth, belt conveyor,working plant. Need only one worker to do inspection work.

Automatic Dewatering Membrane Filter Press Features:

Automatic dewatering diaphragm filter press
1 fully automatic control system
2 low dewatering cost
3 low maintenance cost

Slurry treatment from mineral and metallurgical processes - filtration of concentrates:

The filter presses used in these installations allow the slurry treatment for the recovery and recycling of economically important substances and waste disposal. we have been designed to maximize the performance of metal beneficiation (filtration of concentrates) and refining processes. Filtration has gained a thorough experience in the treatment of slurries produced in mines and in the metallurgical industry from the following processes:

Flotation (filtration of concentrates):

Flotation is a process of solid-solid separation used to separate the gangue (waste mineral) from the pulp (desired mineral), exploiting the different surface properties of minerals. The several outlet currents from flotation, composed of concentrated minerals, are filtrated through filter presses.

Hydrometallurgical:

lixiviation, is the process of separating one or more soluble elements from a solid substance using a solvent which can be chemical (acid), biological (bacterial strains) or organic (solvents containing carbon atoms)

purification through active carbons used in gold refining

Pyrometallurgical:

it concerns the refining and working of metals through fusion from which oxides and sulphides are produced. filter presses are fundamentally used for the treatment of slurries obtained from fume-control processes.

Electrolysis:

it concerns the decomposition reactions caused by continuous electric current in order to produce extremely pure metals and recover precious metals.

Service:

Our goal is to add value to your business and contribute to your success:
You get fast delivery
You get first rate technical care
You get the most from your investment.

Henan Jincheng Filter Equipment Co., Ltd. is a professional manufacturer of filtering equipments. We are one of the key enterprises specializing in manufacturing and exporting Chinese filter press.

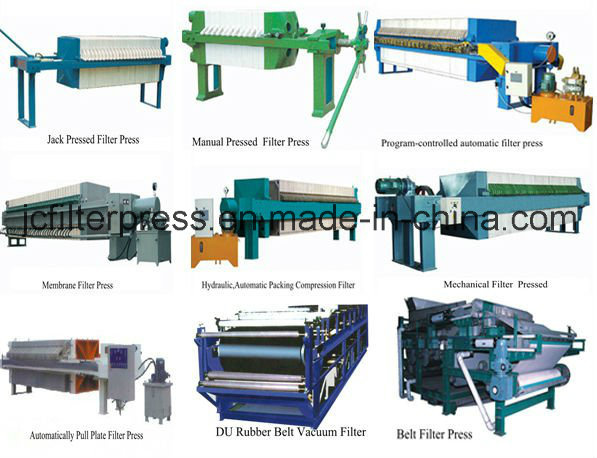

Our products range covers series of plate and frame filter press, chamber filter press, belt vacuum filter press, membrane filter press, centrifuge, shale shaker, industrial pumps, deep cone thickener, flotation column, etc. Those products are widely used to separate the solid and the liquid in many industries such as petroleum, chemical industry, metallurgy, environmental protection, foodstuff, beverage, pharmacy, sugar-making, starch, paper making, coal washing, ceramics, and sewage processing.
