Product Specifications
| Prod Model: |
7400N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product Description

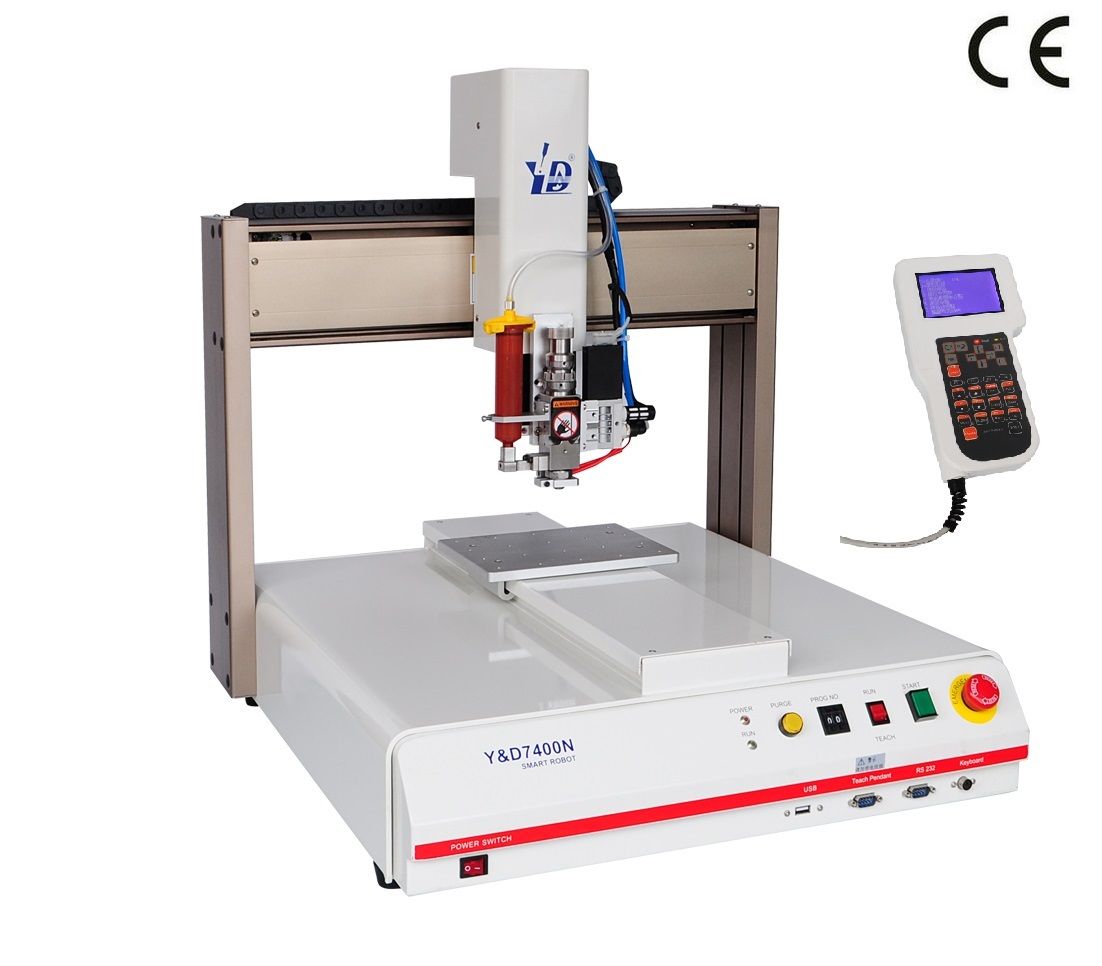

automatic glue dispensing machine for Mobile Phone
About us
We, Y&D Technology (H. K. ) Co., Ltd. is a professional fully/semi-automatic gluing equipment manufacturer, specializing in fluid dispenser, dispensing robot and all the accessories. With more than 9 years experiences, we have obtained a leading position based on innovation and speciality in China. Our aim is to provide complete fluid application solutions for automation via Y&D brand dispenser all over the world.
Applied Industry
Wireless communication, electronics, semi-conductor, automobile, medical machinery, chemical industry, artware, etc.
Application Range
Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery packaging, the coil point glue, PCB bonding/ sealing, IC bonding/ sealing, horn external punctuate glue, PDA sealing, LCD sealing, IC packaging, casing bonding, optical device processing, mechanical sealing, ink clip, LED, DVD, digital cameras, switches, connectors, radiators, semiconductor and other electronics, clocks, toys, medical equipment, etc.
Applied glue or liquid
Silica gel, EMI conductive adhesive, UV glue, AG glue, Fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, epoxy resin, instant glue, thermal compound, anti-solder paste, paint, etc.
Main Uses
1) Processing with bonding, infusion, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.
3) Comparing with the similar products, this machine features 4-axis with R-axis 360 degrees rotation and four linkage running, which solves the trouble of four space trajectory dispensing in the workpieces, such as the outer wall, vertical, the inner gap line, circles or dots.
Y& D7400N Dispenser Robot Specification |
| Working area X/Y/Z(mm){R° } | 400/400/100{+/-360° } |
| Load Y Axis / Z Axis | 10kg / 5kg {R 2kg} |
| Program Display | Teach Pendant LCD |
| Programming Method | Teach Pendant |
| Power Supply | AC90~260V320W |
| Working Temperature | 0~40° c |
| Working Relative Humidity | 20~90% no condensation |
| Dimensions(W x D x H) | 585 x 610 x 610 |
| X& Y/Z(mm/sec) | 0.1~800/500 |
| Resolution | 0.01mm / Axis |
| Repetitive Positioning Accuracy | ± 0.01mm/Axis |
| Program Capacity | Min 100 group, 4000points/group |
| Data Storage Type | CF Card |
| Motion Control | PTP(Point to Point) & CP(Continuous Path) |
| Motor System | Micro Stepping motor |
| Interpolation Function | 3 Axis(Suit for 3D requirement) |
| I/O Signals Port | 8 Inputs / 8 Outputs |
| Robot Weight (kg) | 41kg |
Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.
We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.
We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
