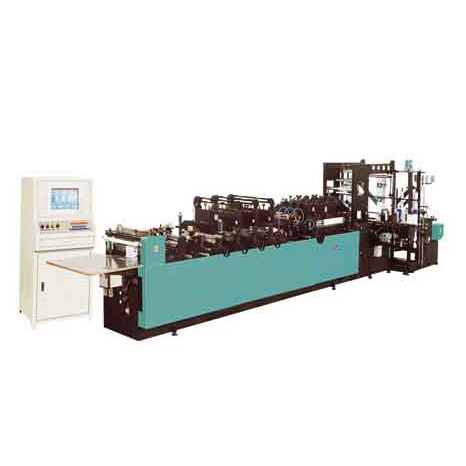

Automatic High Speed Three Edge Sealing Bag-Making Machine
Product Specifications
| Prod Model: |
DSBF-350B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Unwind Width: |
350mm |
| Heat Sealing: |
Yes |
| Cooling Section: |
Yes |
| Mold Cutting: |
Yes |
| Photocell Tracking: |
Taiwan |
| Thermal Electric Press Set: |
Yes |
| Machine Type: |
Sealing Machine |
| Computerized: |
Computerized |
| Type: |
Plastic Bag Making Machine |
| Product Line: |
1 |
Product Description
Automatic High Speed Three Edge Sealing Bag-making Machine
1. Use&feature:
The machine is suitable for double-edge sealing, central sealing and sealing & cutting the lamination material. Adopting frequency converter and automatic braking system, step motor to feed, photocell tracking system, temperature preset system; It has advantage of stepless speed, high precision and stable function. Above all, it is a kind of ideal bag making machinery in food and medicine packing.
2. Main technical parameters:
| Width | 350mm |
| Max. length | 680mm |
| Max. unwinding diameter | 600mm |
| Speed | 20-100pcs/min |
| Hot forming blade | 2 sets |
| Cooling blade | 1 set |
| Total power | 10kw |
| Weight | 3 ton |
| Overall dimension | 5800x1200x1600mm |
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, which is grow out from Ruian City Dongfang Machinery Manufacture Co., Ltd. It is founded in 1993, is specialized in producing complete sets of soft packing equipments and has been appointed as one of units Honouring Contracts and Abiding Its Words by the municipal government for fifteen times in succession. In 1997, it was agian awarded titles as Hourning Contracts and Abiding Its Words, Grade Advanced Unit, Star Enterprise and Grade-AAA Credit Unit. Specially, It has been assessed and found to be in conformity with the requirements of ISO9001-2000. And got CE in the year of 2006.
We develop high-new products uninterruptedly by introducing advanced technology, combinging national conditions, depending on scientific and technical development.
We keep developing sheeter and slitter machine from DONGFANG brand. We naming them as main two series ROLL TO ROLL and ROLL TO SHEETS.
Our machines offer solutions for different industries, like paper bag making, paper cup raw board sheeting, carton box board cutting, food anti-oil paper cross-cutting, thermal paper roll making line, printing house and raw reel-material supplier searching.
All staff of our company will open up the market at home and abroad with a completely new appearance and provide numerous customers with famous-brand products and credit service.
