Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials >> Automatic Hydraulic Making Machine (QTY4-20A)

Automatic Hydraulic Making Machine (QTY4-20A)

Name: Automatic Hydraulic Making Machine (QTY4-20A)
Brand: china-manufacturer-directory.com
SKU: 730023385
Availability: InStock
Rating: 4.7 (120 reviews)

Supplier:	Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials
Price:	US $ 17770/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	QTY4-20A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	4.5t
Power:	24.95kw
Warranty:	One Year
Pallet Size:	105055020mm
Color:	Blue/Green
Method:	Hydraulic Pressure
Processing:	Brick Molding Machine
Product:	Cement
Brick Raw Material:	Cement
Automation:	Automatic
Certification:	ISO9001: 2000
Type:	Block Making Machine

Product Description

QTY4-20A Hydraulic Block Making Machine

Introduction

Function: standard bricks, blocks, perforated bricks, paving bricks, etc. can be produced with various molds.

Process: It is manpower saving for its operating rod control, automatic pallet conveyance, automatic leading-out and hydraulic molding.

Structure:
(1)It is solid and durable for its four guiding columns and patent lengthening sleeve guide.
(2)The forced mold synchronous structure gives the products perfect shape and high strength. And the stable demolding process ensures the output of more finished products.

(3)The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration. We use the steel produced by famous steel manufactures Shougang Group. The service life of main machine is more than 10 years.

(4) There is electric motor and belt in brick conveyor machine, it can convey the pallets when the bricks come out, it prevent collisions between pallets and avoid the break od bricks. It is more automatically and more durable.

(5)The connecting rod of material feeder use the whole steel casting, which is stronger and more durable.
(6)The material feeding system uses broken arch structure, when feeding materials, kick fork swings back and forth quickly to feed materials evenly, and fill the mold with materials in every corner. It can ensure the high rate of finished products, and the strength of bricks is higher.
(7)Vibration motor use heat-resistant motor which can continue working safely under 130ºC for long time, the extreme temperature is up to 180ºC, it's especially suitable for high temperature region.

(8)Circulating water colling system. The cooler is customized specially, the water pipe inside are all copper pipe, it have very good cooling effect. So the machine can ensure the temperature of hydraulic oil not very high and the machine can work for a long time. So the machine can produce normally in hot weather in Africa.

Technical Specifications

Production capacity	Standard brick	24011553mm	26pcs/mould
	Hollow brick	400200200mm	4pcs/mould
	Paving brick	20010060mm	16pcs/mould
Cycle time	18-25s
One hour output	Standard brick	24011553mm	5200pcs/hour
	Hollow brick	400200200mm	800pcs/hour
	Paving brick	20010060mm	2880pcs/hour
Shift output	Standard brick	24011553mm	41600pcs/8 hours
	Hollow brick	400200200mm	6400pcs/8 hours
	Paving brick	20010060mm	23040pcs/8 hours
Vibrating force	68KN
Power	24.95KW
Weight	4.5T
Container required	1*40HQ
Bamboo pallet size	102055020mm

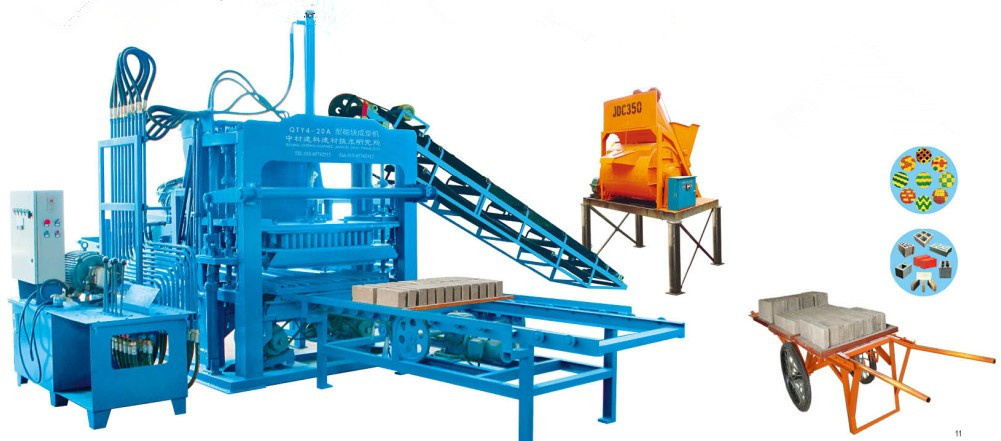

Items of Investment:

Items	Quantity
QTY4-20A block making machine	1
Brick conveyor machine	1
Pallet feeder	1
Conveyer belt	1
JDC350 mixer	1
Control system	1
Manual cart	2
Free mould	1

Introduction:

Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials is located in Guangzhuang, Dongli, Chaoyang District of Beijing which is the birth place for building materials. It is specializing in the manufacture and export of block making machine and roof tile machine and other construction equipments.

Quality is the core of our company. Advanced inspection equipments and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas. Our products have been exported to Asia, South America, Africa, Middle East, Russia and so on.

It is our unceasing pursuit to commit ourselves to research and develop high-quality, environmental protection and new type building materials

1. Our head office is in Beijing

2. Our machines had been exported to 92 countries

3. Our product has passed CE, ISO9001, BV, SGS, CTC cetification

4. We have 2 Factories in China, one is in Beijing, the other one is in Wuhan China

5. We have 12 different models, Small, medium and large investment from USD1, 600 ----- USD350, 000.

6. We are an institute belong to China Building Material Academy, here is the most authoritative China Building Materias Inspection and China Construction Machinery Inspection And Certification Center.

7. We have after-sales departent in Asia, America, South America, Africa.

8. Engineers will come to you to install the machine and train workers for you.
