Zhangjiagang Shuaifei Drink Machinery Co., Ltd. >> Automatic Juice Beverage Filling Machine (RCGF)

Automatic Juice Beverage Filling Machine (RCGF)

Name: Automatic Juice Beverage Filling Machine (RCGF)
Brand: China-Manufacturer-Directory.com
SKU: 694003945
Availability: InStock
Rating: 4.4 (52 reviews)

Supplier:	Zhangjiagang Shuaifei Drink Machinery Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	RCGF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Station:	Full Automaic
Advantage:	Low Noise High Quality
Capacity:	2000-4000b/H
Material:	Stainless Steel 304
Bottle Material:	PVC /Pet/PP
Bottle Size:	200ml-2000ml
Temperature Range:	60-100
Structure:	Washing/Filling/Capping Integrated
Power:	5.03kw
Usage:	Inner
Packaging Containers:	Bottle
Operational Method:	Filling
Product Type:	Daily Use
Product State:	Liquid
Type:	Filling Machine

Product Description

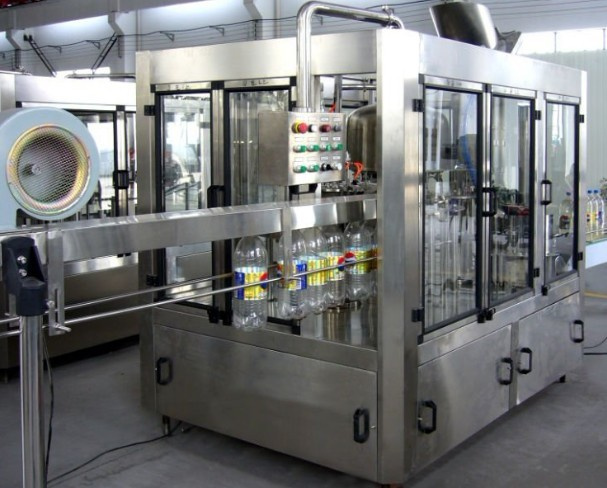

Automatic Juice Beverage Filling Machine

Products Introduction:
1. The 3-in-1 Machine is used to mineral water bottling process, purified water, flavored water and other non-carbonated beverage
Such as fruit juice, fruit wine, tea series

2. The machine can finish all the process from empty bottle rinsing, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and high cost effective.

Character:

1. Using the wind sent access and move wheel in the bottle directly connected technology; Canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough...

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology.

Model	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
Production Capacity500ml(b/h)	3000	6000	8000-10000	14000
Filling Precision	≤±5MM	≤±5MM	≤±5MM	≤±5MM
Feedback Consumption	≤10%	≤10%	≤10%	≤10%
Polyester Bottle standard(mm)	Bottle diameter Φ50-Φ92		Height :150-310
Suitable cap Shape	Plastic screw cap		Plastic screw cap
Water pressure of washing bottle(Mpa)	0.18	0.18	0.18	0.18
Water consumption for Water bottle(kg/h)	800	1600	2500	3500
Gas Source pressure	0.6	0.6	0.6	0.6
Gas consumption (m/min)		0.3	0.4	0.5
Total power(kw)	5.88	6.68	7.68	9.18
Total Weight(kg)	2500	3000	4000	5000
Dimension(LWH)	2100×1500×2200	2450×1800×2200	2750×2180×2200	3600×2800×3150
