Product Specifications
| Prod Model: |
CGF-Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Filling Machine |
| Process: |
Washing Filling Capping |
| Processing Material: |
Fruit Juice |
Product Description
Description of juice beverage production ine
First part: Water treatment system
Second part: Juice drink mixing system
Third part: Filling and packing line

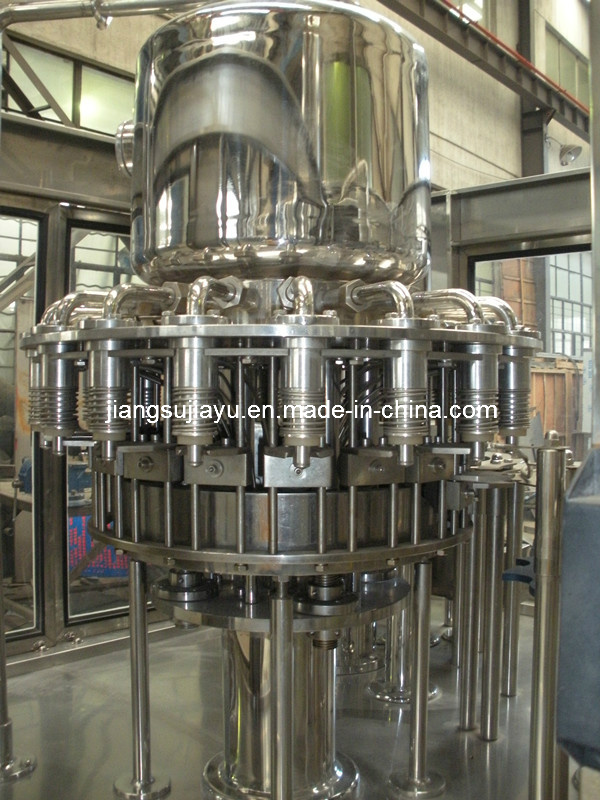

This 3-in-1 hot filling system is sued for filling tea, juice and functional drinks,
The mate rial of the bottles can be PET, glass and so on, the function of fluent and fast
Filling action high filling precision, reliable capping and low mate rial loss makes it
Effectively prevent secondary pollution of the neck with high automation in the whole
Process it can achieve the replacement of different bottles only by exchanging equivalent parts.
This system can also from complete set of production line with the other related system
Providing proposals for full set of hot filling
|
Model |
CGF 14-12-6 |
CGF 16-16-6 |
CGF 18-18-6 |
CGF 24-4-8 |
CGF 32-32-10 |
CGF 40-40-10 |
|
Production capacity (BPH)500ml |
3000 |
4000 |
5000 |
8000-10000 |
10000-12000 |
13000-15000 |
|
Applicable bottle type |
Bottle diameter: 50-100mm.height:150-320mm,volume :330ml-1500ml |
|
Applicable cap shape |
Plastic screw cap |
|
Gas source pressure(Mpa) |
0.6 |
Gas consumption
(m³/min) |
0.2 |
0.2 |
0.4 |
0.4 |
0.5 |
0.55 |
|
Total power(kw) |
4.6 |
4.6 |
5.4 |
6.4 |
8.07 |
9.56 |
|
Total weight(kg) |
2500 |
3200 |
3800 |
5200 |
6500 |
8000 |
Dimension
(WXHXH)mm |
2350X1700X2150 |
2600X1830X2030 |
2830X2020X2030 |
3200X2300X2600 |
3450X2510X2710 |
3800X2800X2710 |
Zhangjiagang City JiaYu Machinery Co. Ltd located by the side of Yujia Bridge Jinfeng Town Zhangjiagang City. Our company is one specialized in producing liquid filling machinery manufacturer. We insisted that take the market as the guidance, the quality as the important line. We have established perfect quality system certification and outfitted consummate experiment with test facility. We own a high quality development group and manufacturing stuff with two senior engineers, four engineers and ten technicians.
The products we supply have pure water, mineral water treatment equipment, drinking water bottle & barrel filling machine, carbonated drink filling machine, aseptic cold filling machine and hot filling machine etc. Especially model QGF SERIES barreled filling production. Also we can offer the craft consultation, the workshop plane layout, installation and trial running and the technical training. Our products has been sold everywhere in our country, also Russia and some MID-east countries.
We are willing to establish business relations with our high quality products and perfect service with you.
Welcome to visit our company and give your instruction!
