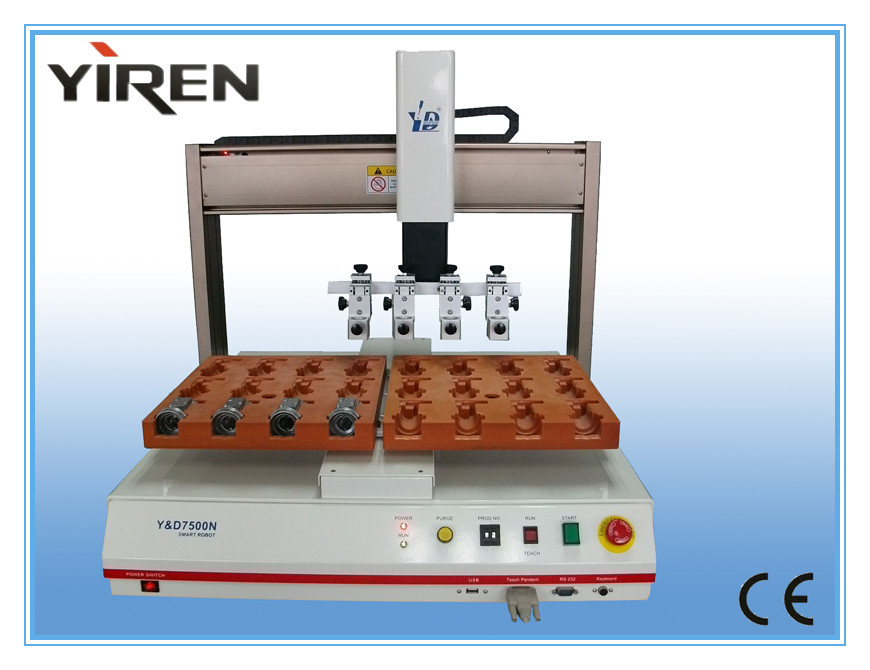

Automatic liquid glue spraying epoxy coating dispensing machine
Product details
Driven by a servo motor and ball screw design to ensure that the closed-loop operation. Maintaining a compact form factor, functionality, powerful, sturdy aluminum structure with shock resistance, very suitable for industrial conveyor device dispensing operations such as solar modules and so on. Many operations require dispenser dispensing shift are all located at the top station.
Common application scope
Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery package, the coil point glue, PCB bond fixed sealant, IC sealant, horn external punctuate glue, PDA sealant, LCD sealant, IC packaging, IC bonding, casing bonding, optical device processing, mechanical seal, etc.
Applicable fluid
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.
Features
1. English Teach pendant operation, easy to learn and easy to understand;
2. With a draw point, line, surface, arc, circle. Irregular curves and three-axis continuous interpolation functions such linkage;
3. Software with regional arrays, shift operations and other functions;
4. The glue size of the thickness, coating speed, dispensing time, stop time Jieke parameter setting glue, a glue amount of stable, non-leakage Epoxy;
5. According to process needs, they may install table positioning PIN, glue gun or bottom heating temperature control device
6. For dispensing fluid, such as: UV glue, AB Glue, EPOXY (vinyl), white plastic, EMI conductive adhesive, SILICON,
Epoxy, instant glue, silver glue, red glue, solder paste, thermal compound, anti-solder paste, lacquer, screws fixed 'set agent
7. Suitable for object: Mobile phone, computer casings, optical drives, printers, ink, clip, PC board, LCD, LED, DVD, digital
Cameras, switches, connectors, relays, radiators, semiconductor and other electronic industry, or Quick-point
Connection with the SMT devices / glue, clocks, toys, medical equipment required to liquid dispensing products.
8. Optional 2 fine-tune the plastic tube jigs, double-headed simultaneous operation, multiplied improve work efficiency;
MODEL | Y&D9300 | Y&D9500 | Y&D9600 | Y&D9860 | Working range | 300/300/100mm | 500/500/100mm | 600/600/100mm | 800/600/100mm | Load Z-AXIS | 8kg | Speed X&Y / Z (mm/sec) | 800 / 320 mm/sec | Repetitive Positioning Accuracy | ± 0.01mm / Axis | Program Capacity | Min 100 Group, 4000 points/group No limit program with memory by PC | Data Storage Type | CF Card, PC Storage&USB | Byte | 32Bit | Program Display | Teach Pendant LCD, VGA port for optional external monitor | Motor System | Servo motor | Control Method | PTP & CP | Interpolation Function | 3 axes (suit for 3D requirement) | Programming Method | Teach pendant / Keyboard | I/O Signals Port | 8 Inputs / 8 Outputs | External Control Interface | RS232 | Power Supply | AC90~ 260V, 320W | Working Temperature | 10-40°C | Working Relative Humidity | 20-80% no condensation | Dimensions (WxDxH mm) | 790*630*500 mm | 890*730*500 mm | 990*830*500 mm | 1090*930*500 mm | Weight | 42KG | 46KG | 50KG | 55KG | |
|
Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.
We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.
We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
