Product Specifications
| Prod Model: |
MJY10-24D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia |
| Type: |
Circular Saw |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Layout: |
Horizontal |
| Certification: |
ISO |
| Controlling Mode: |
Motor |
Product Description

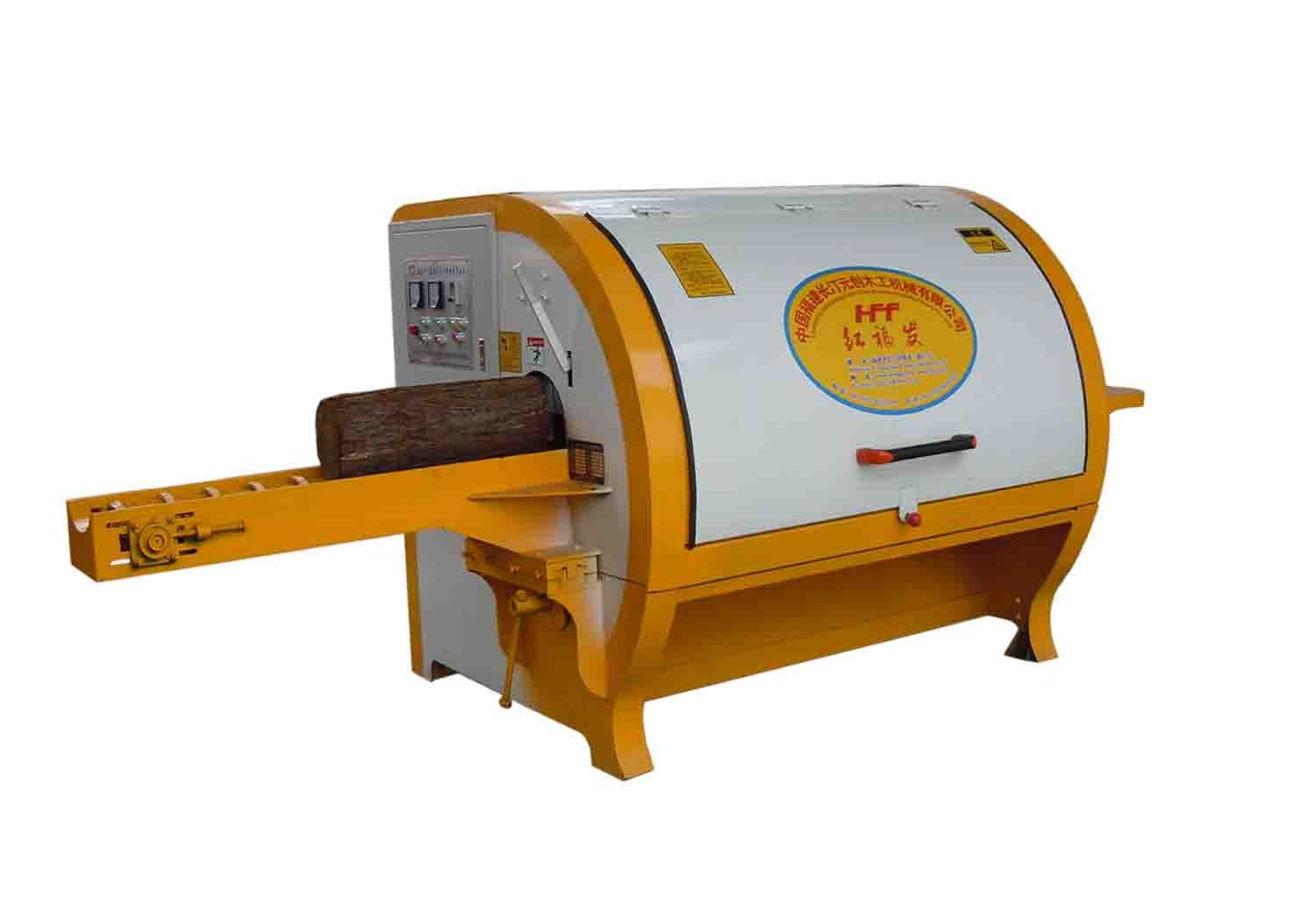

The log multi-blade saw blades amounted on horizontal axis are vertical to saw pin logs, automatic halving, suitable for sawing square lumber from intermediate, also for sawing wood into all sheets, lumber output percentage higher than 95%. Suitable for sawing timber more than 100cm in length.
Processing material: Raw wood
Feeding speed: 6m/min
Saw blade size: 350*3*50*36+4
Main motoe power: 25kw/2sets
Blade arrangement: Up and down
Processing length: 50-100cm
Processing diameter: 10-24cm
Cooling way: Axis water cooling
Weight: 1800kg
Fujian Yuanchuang wood processing machinery company is an integrated enterprise specialized in developing, manufacturing, marketing of wood processing machinery and equipment. The advantage of our saw is smoothly feeding, precision in processsing, burn-free saw blade, high efficiency, low material consumption, environmental protection and high security.
Yuanchuang products including: log multi-blades saw, square lumber multi-blade saw, caterpillar type edge trimming saw, sliding table saw, band saw feeder and other timber processing machine.
